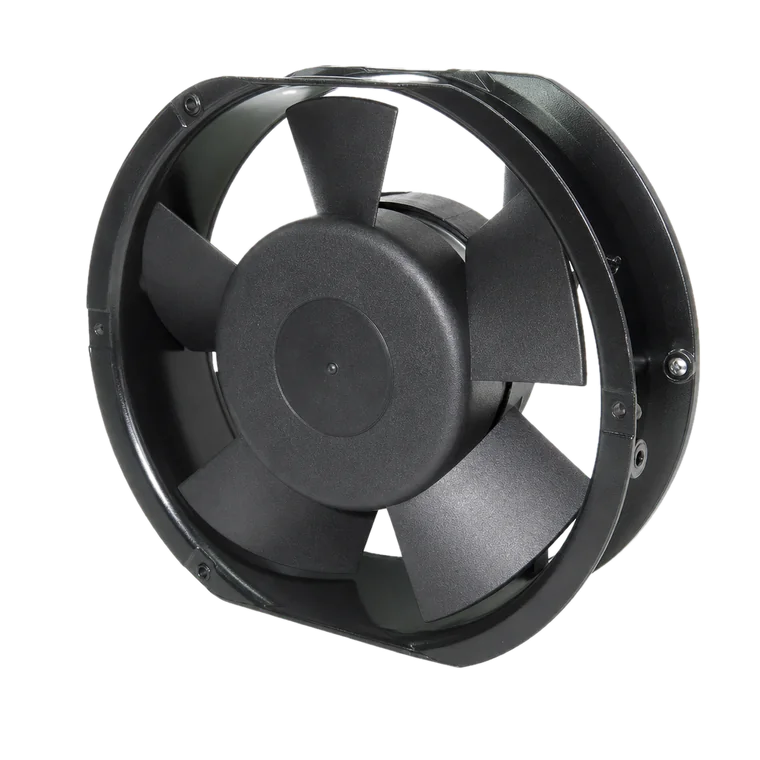

BAC15051AM SERIES
172 × 150 × 51 mm AC Axial Fan
Specifications
| Series | BAC15051AM |
| Product Type | AC Axial Fan |
| Dimensions | 172 × 150 × 51 mm (6.8 × 5.9 × 2 in) |
| Rated Voltage | 115 / 230 VAC |
| Voltage Range | 100~120 / 200~240 VAC |
| Frequency | 50 / 60 Hz |
| Phase | Single-phase |
| Motor Type | Shaded pole induction, inner rotor |
| Impedance Protected | ✓ |
| IP Protection | IP44 |
| Frame Material | Aluminum die-cast, black finish |
| Impeller | Glass fiber reinforced plastic, rated UL94V-0 |
| Bearing | Ball bearing |
| Rotation | CW when viewed from rotor |
| Connection | Lead wires or Terminals |
| Weight | 890g (1.96Lbs) |
Electrical & Environmental
| Dielectric Strength | 1,500 VAC/min, 0.5 mA, 50/60 Hz |
| Insulation Resistance | Over 100 MΩ at DC 500 V |
| Operating Temp. | –20°C to +70°C (ball bearing) |
| Storage Temp. | –40°C to +80°C (at 65% RH) |
| Life Expectancy | 80,000 hrs @ 45°C; 50,000 hrs @ 60°C |

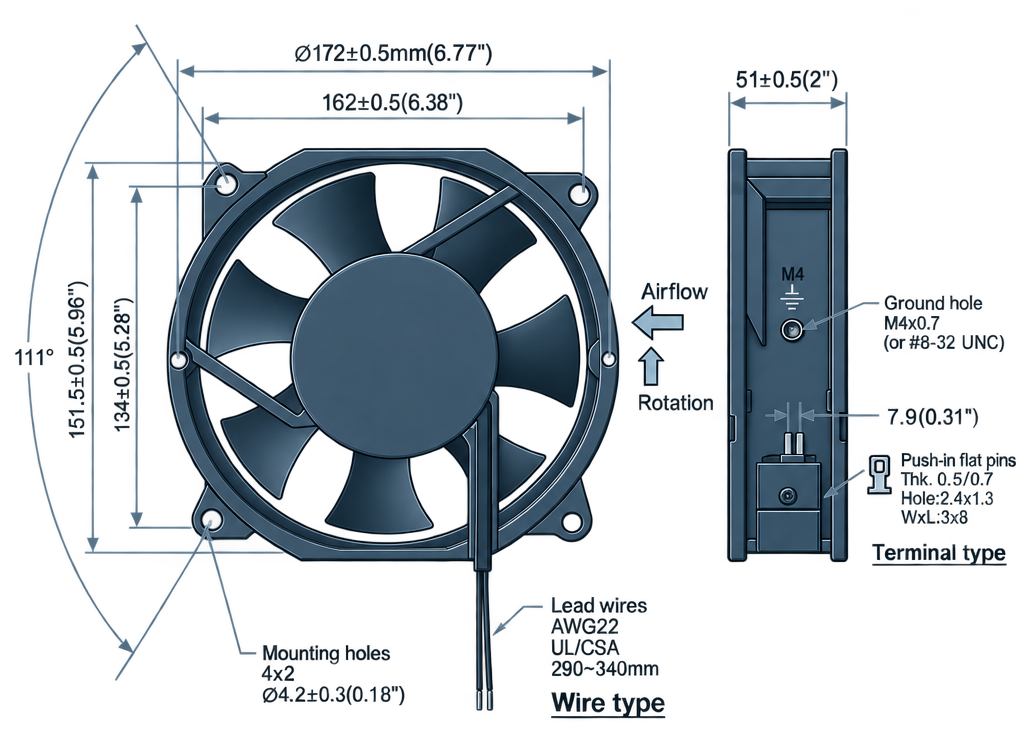

Technical Drawing
Dimensions in mm (inches). Tolerances as marked.

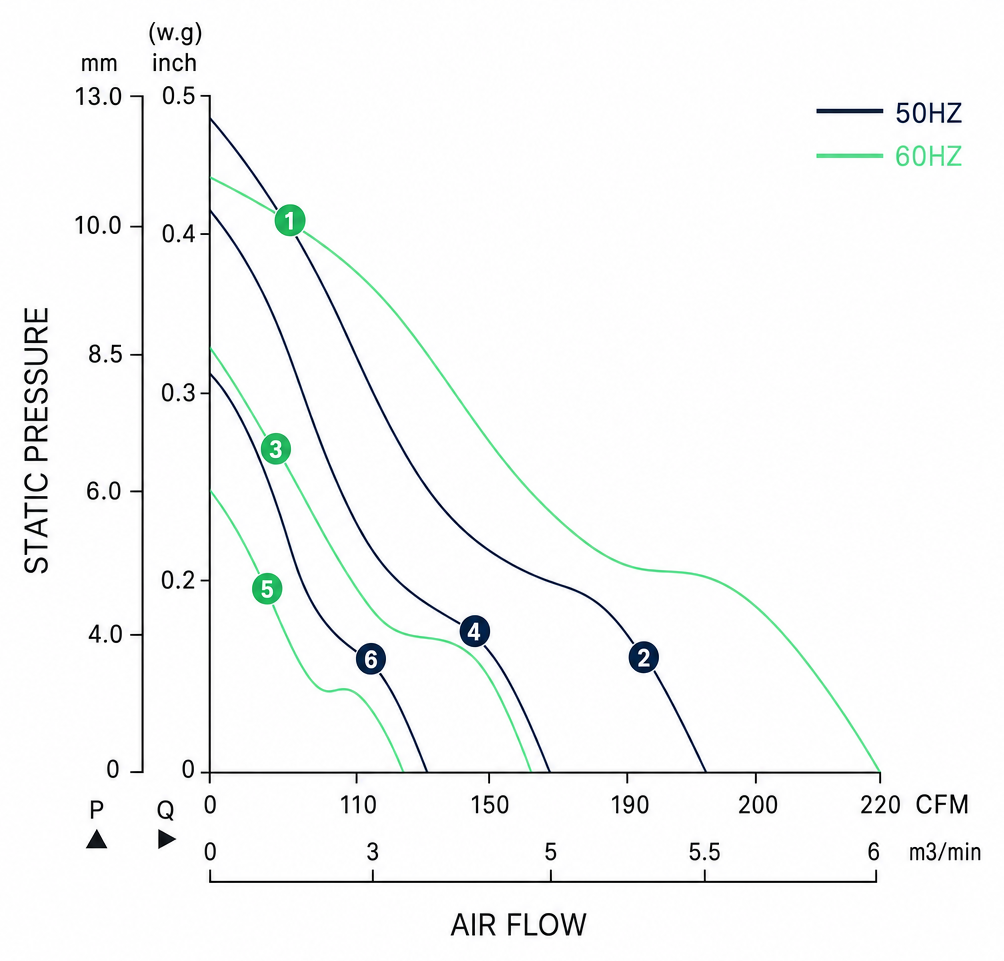

Performance P-Q Curve
Static pressure vs. airflow per speed variant. Manufacturer test data, tolerance ±10%.
Performance Data
| Model Number | Rated Voltage | Frequency (Hz) | Input Power (W) | Speed (RPM) | Air Volume (m³/min) | Air Volume (CFM) | Max SP (mm H₂O) | Max SP (in H₂O) | Noise (dBA) | PQ Curve | UL |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BAC15051AM-11-1** | 115 VAC | 50/60 | 30/26 (~48) | 2700/3000 | 5.5/6.2 | 195/220 | 12.19/10.92 | 0.48/0.43 | 45/50 | 2/1 | ✓ |
| BAC15051AM-11-2** | 115 VAC | 50/60 | 24/20 | 2400/2300 | 4.8/4.7 | 170/165 | 10.67/8.38 | 0.42/0.33 | 43/42 | 4/3 | ✓ |
| BAC15051AM-11-3** | 115 VAC | 50/60 | 18/16 | 2000/1600 | 3.8/3.3 | 135/118 | 8.38/5.84 | 0.33/0.23 | 35/33 | 6/5 | ✓ |
| BAC15051AM-22-1** | 230 VAC | 50/60 | 30/26 (~48) | 2700/3000 | 5.5/6.2 | 195/220 | 12.19/10.92 | 0.48/0.43 | 45/50 | 2/1 | ✓ |
| BAC15051AM-22-2** | 230 VAC | 50/60 | 24/20 | 2400/2300 | 4.8/4.7 | 170/165 | 10.67/8.38 | 0.42/0.33 | 43/42 | 4/3 | ✓ |
| BAC15051AM-22-3** | 230 VAC | 50/60 | 18/16 | 2000/1600 | 3.8/3.3 | 135/118 | 8.38/5.84 | 0.33/0.23 | 35/33 | 6/5 | ✓ |
** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing 100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480V... 50/60Hz, & dual voltage version available on request. Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request. Berring Industrial reserves the right to change data and improve electrical or mechanical design without notice, data tolerance +-10%
