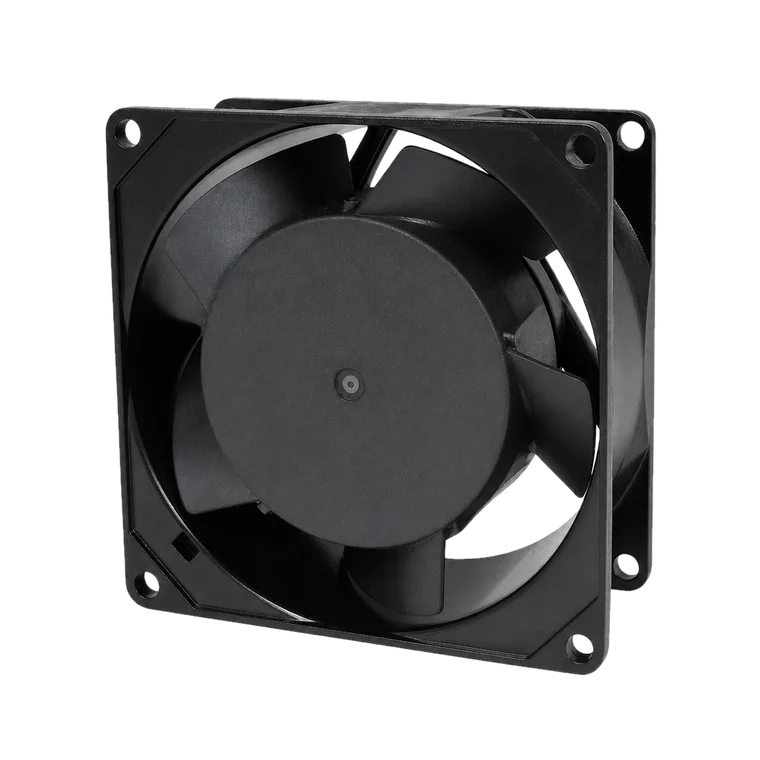

BAC8038AM SERIES
80 × 80 × 38.5 mm AC Axial Fan
Specifications
| Series | BAC8038AM |
| Product Type | AC Axial Fan |
| Dimensions | 80 × 80 × 38.5 mm (3.1 × 3.1 × 1.5 in) |
| Rated Voltage | 115 / 230 VAC |
| Voltage Range | 100~120 / 200~240 VAC |
| Frequency | 50 / 60 Hz |
| Phase | Single-phase |
| Motor Type | Shaded pole induction, inner rotor |
| Impedance Protected | ✓ |
| IP Protection | IP44 |
| Frame Material | Aluminum die-cast, black finish |
| Impeller | Glass fiber reinforced plastic, rated UL94V-0 |
| Bearing | Ball bearing or sleeve bearing |
| Rotation | CCW when viewed from rotor |
| Connection | Lead wires or Terminals |
| Weight | 320g (0.70Lbs) |
Electrical & Environmental
| Dielectric Strength | 1,500 VAC/min, 0.5 mA, 50/60 Hz |
| Insulation Resistance | Over 100 MΩ at DC 500 V |
| Operating Temp. | –20°C to +70°C (ball bearing) |
| Storage Temp. | –40°C to +80°C (at 65% RH) |
| Life Expectancy | 80,000 hrs @ 45°C; 50,000 hrs @ 60°C |

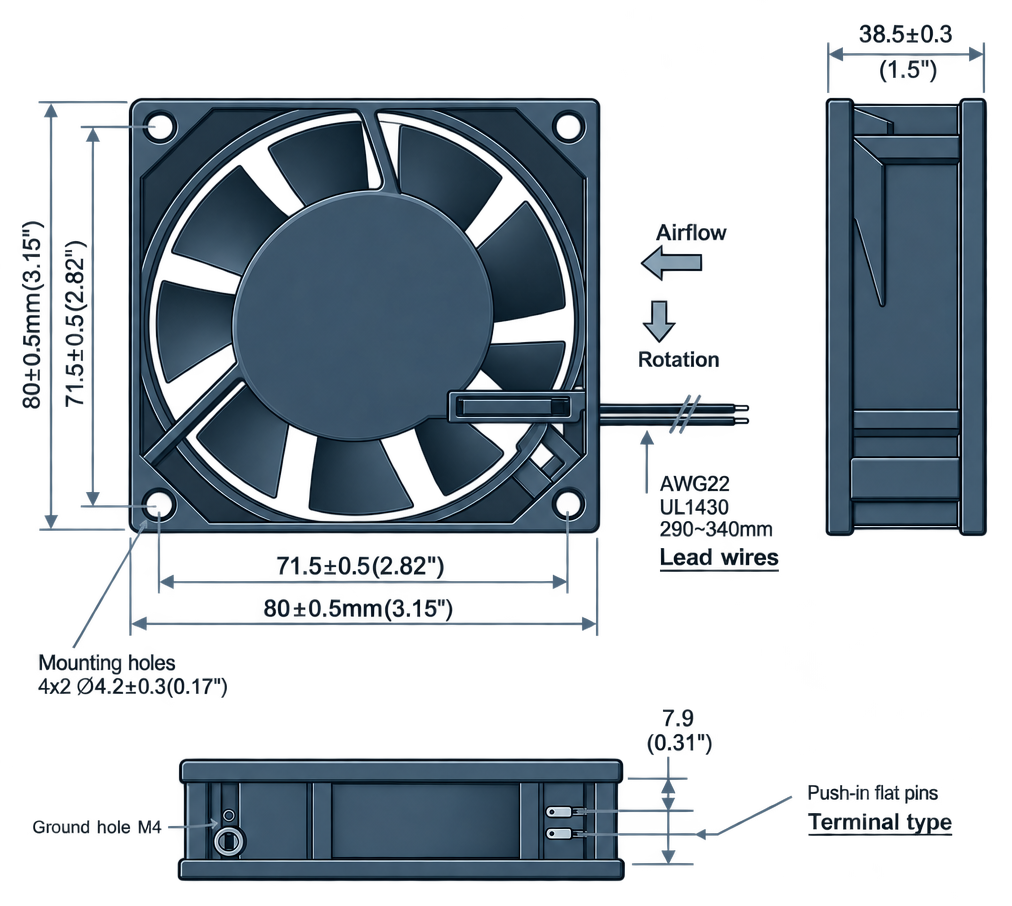

Technical Drawing
Dimensions in mm (inches). Tolerances as marked.

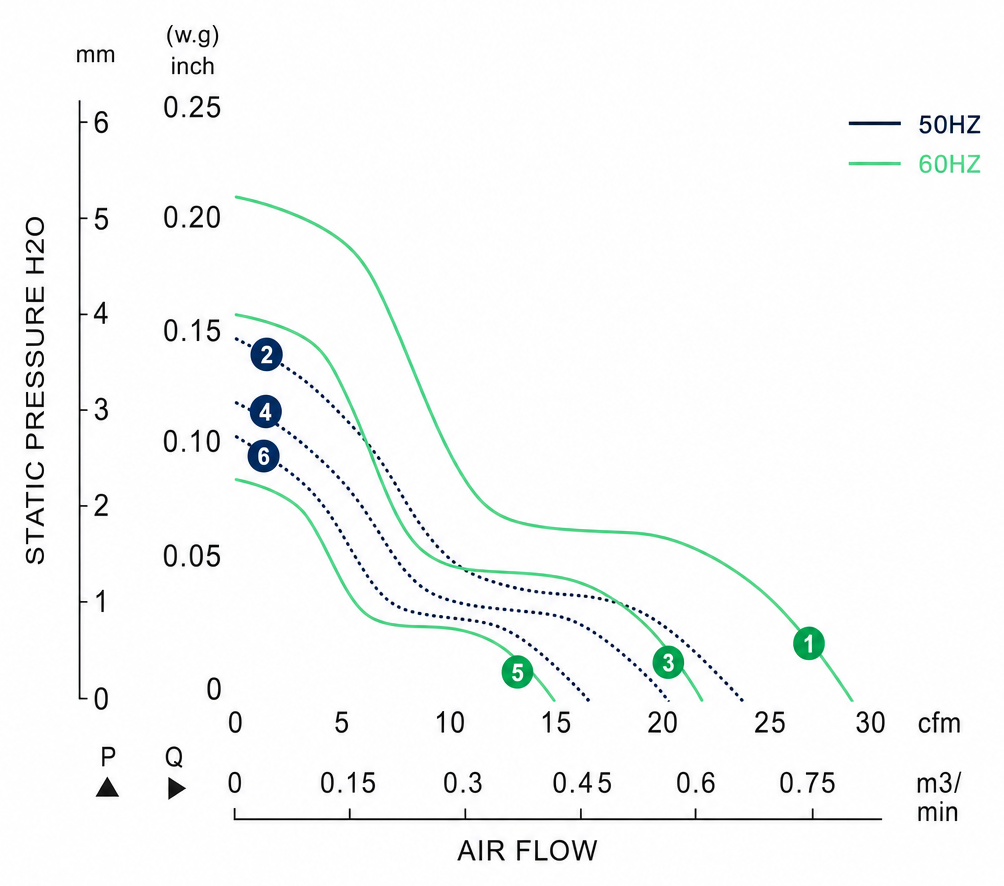

Performance P-Q Curve
Static pressure vs. airflow per speed variant. Manufacturer test data, tolerance ±10%.
Performance Data
| Model Number | Rated Voltage | Frequency (Hz) | Input Power (W) | Speed (RPM) | Air Volume (m³/min) | Air Volume (CFM) | Max SP (mm H₂O) | Max SP (in H₂O) | Noise (dBA) | PQ Curve | UL |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BAC8038AM-11-1** | 115 VAC | 50/60 | 14/12 | 2400/2850 | 0.7/0.8 | 25/30 | 3.81/5.33 | 0.15/0.21 | 31/34 | 2/1 | ✓ |
| BAC8038AM-11-2** | 115 VAC | 50/60 | 11/9 | 2100/2400 | 0.6/0.7 | 21/23 | 3.05/4.06 | 0.12/0.16 | 24/26 | 4/3 | ✓ |
| BAC8038AM-11-3** | 115 VAC | 50/60 | 7/5 | 2000/1800 | 0.5/0.5 | 17/16 | 2.79/2.29 | 0.11/0.09 | 22/20 | 6/5 | ✓ |
| BAC8038AM-22-1** | 230 VAC | 50/60 | 14/12 | 2400/2850 | 0.7/0.8 | 25/30 | 3.81/5.33 | 0.15/0.21 | 31/34 | 2/1 | ✓ |
| BAC8038AM-22-2** | 230 VAC | 50/60 | 11/9 | 2100/2400 | 0.6/0.7 | 21/23 | 3.05/4.06 | 0.12/0.16 | 24/26 | 4/3 | ✓ |
| BAC8038AM-22-3** | 230 VAC | 50/60 | 7/5 | 2000/1800 | 0.5/0.5 | 17/16 | 2.79/2.29 | 0.11/0.09 | 22/20 | 6/5 | ✓ |
** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing 100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request. Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request. Berring Industrial reserves the right to change data and improve electrical or mechanical design without notice, data tolerance +-10%
