BCN-115A
NEMA 1-15R Cord Connector · 15A / 125V
Specifications
| Model | BCN-115A |
| Product Type | Cord Connector |
| Region | North America |
| Configuration | NEMA 1-15R |
| Rating | 15A / 125V |
| Supplied As | Molded cord sets, built to order |
Approvals & Standards
| Approvals | UL 817 / cUL / CSA C22.2 |
| Plug Standard | UL 817 |
| Cord-Set Standard | UL 817 / CSA C22.2 No. 21 |
| Custom Options | Length, jacket color, opposite-end termination |
| Note | Suitable for outdoor use |

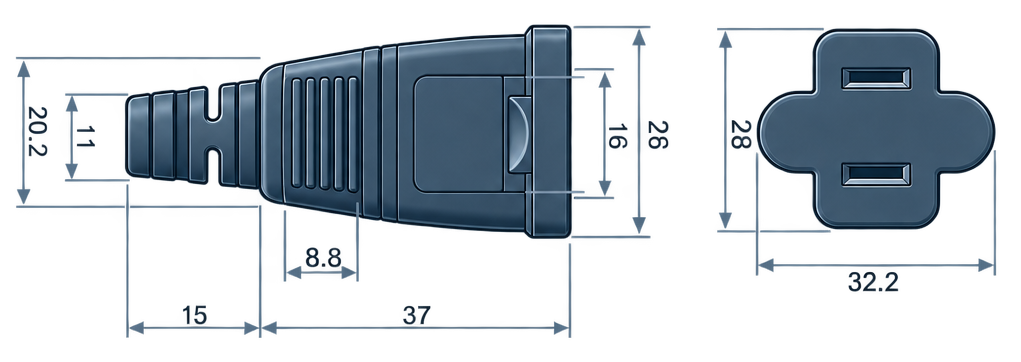

Outline Drawing
Dimensions in mm. Tolerances as marked.
Approved Cord Constructions
| Cord Type | AWG / Cond. | UL | cUL |
|---|---|---|---|
| SJT | 18AWG / 2 | ✓ | ✓ |
| SJTW | 18AWG / 2 | ✓ | ✓ |
| SJTO | 18AWG / 2 | ✓ | ✓ |
| SJTOW | 18AWG / 2 | ✓ | ✓ |
| SPT-2 | 18AWG / 2 | ✓ | ✓ |
| SJT | 16AWG / 2 | ✓ | ✓ |
| SJTW | 16AWG / 2 | ✓ | ✓ |
| SJTO | 16AWG / 2 | ✓ | ✓ |
| SJTOW | 16AWG / 2 | ✓ | ✓ |
| SPT-2 | 16AWG / 2 | ✓ | ✓ |
| SJT | 14AWG / 2 | ✓ | ✓ |
| SJTW | 14AWG / 2 | ✓ | ✓ |
| SJTO | 14AWG / 2 | ✓ | ✓ |
| SJTOW | 14AWG / 2 | ✓ | ✓ |
Every construction listed is an approved cord set for this plug. Lengths and colors to order.
