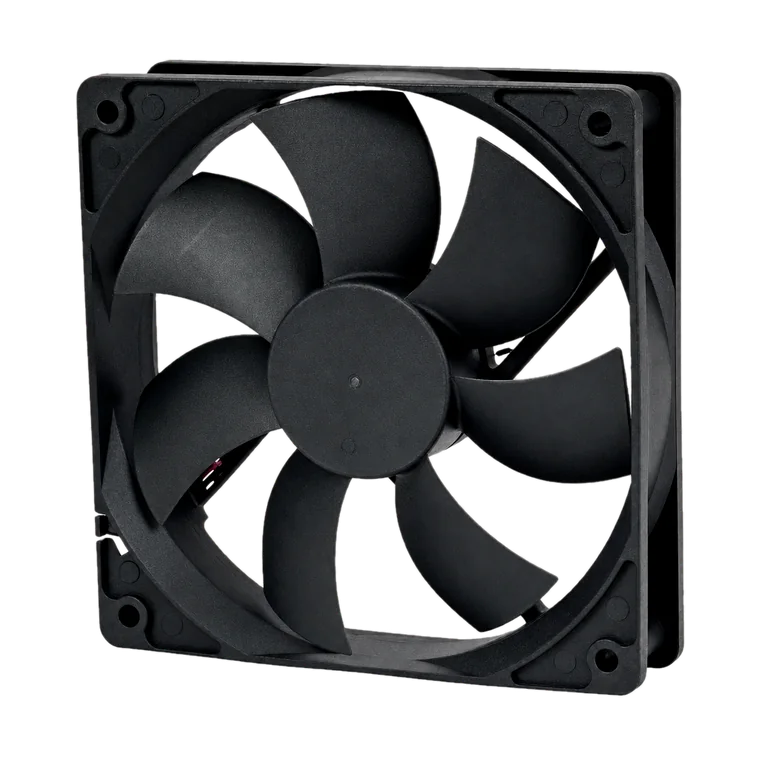

BDC12025PM SERIES
120 × 120 × 25 mm DC Axial Fan
Specifications
| Series | BDC12025PM |
| Product Type | DC Axial Fan |
| Dimensions | 120 × 120 × 25 mm (4.7 × 4.7 × 1 in) |
| Rated Voltage | 12 / 24 / 48 VDC |
| Voltage Range | 8~13.8 / 8~14 / 14~26 / 14~27.6 / 22~55 / 22~56 VDC |
| Motor Type | Brushless DC motor, option(auto cutoff/auto restart) |
| Burnout Protection | Electronically protected, polarity protected |
| IP Protection | IP55 / IP68 |
| Frame Material | Glass fiber reinforced thermoplastic, rated UL94V-0(PT) |
| Impeller | Glass fiber reinforced plastic, rated UL94V-0 |
| Bearing | Ball bearing |
| Rotation | CCW when viewed from rotor |
| Connection | Lead wires or Terminals |
| Weight | 152g (0.336Lbs) |
Electrical & Environmental
| Dielectric Strength | 500VAC/min. Max leakage 0.5mA |
| Speed Control | Option : PWM, SC & SV... |
| Signal Output | Option : FG, RD... |
| Operating Temp. | –20°C to +65°C |
| Storage Temp. | –20°C to +75°C (at 65%RH) |
| Life Expectancy | L10 70K hours at 40°C |
Technical Drawing
Dimensions in mm (inches). Tolerances as marked.

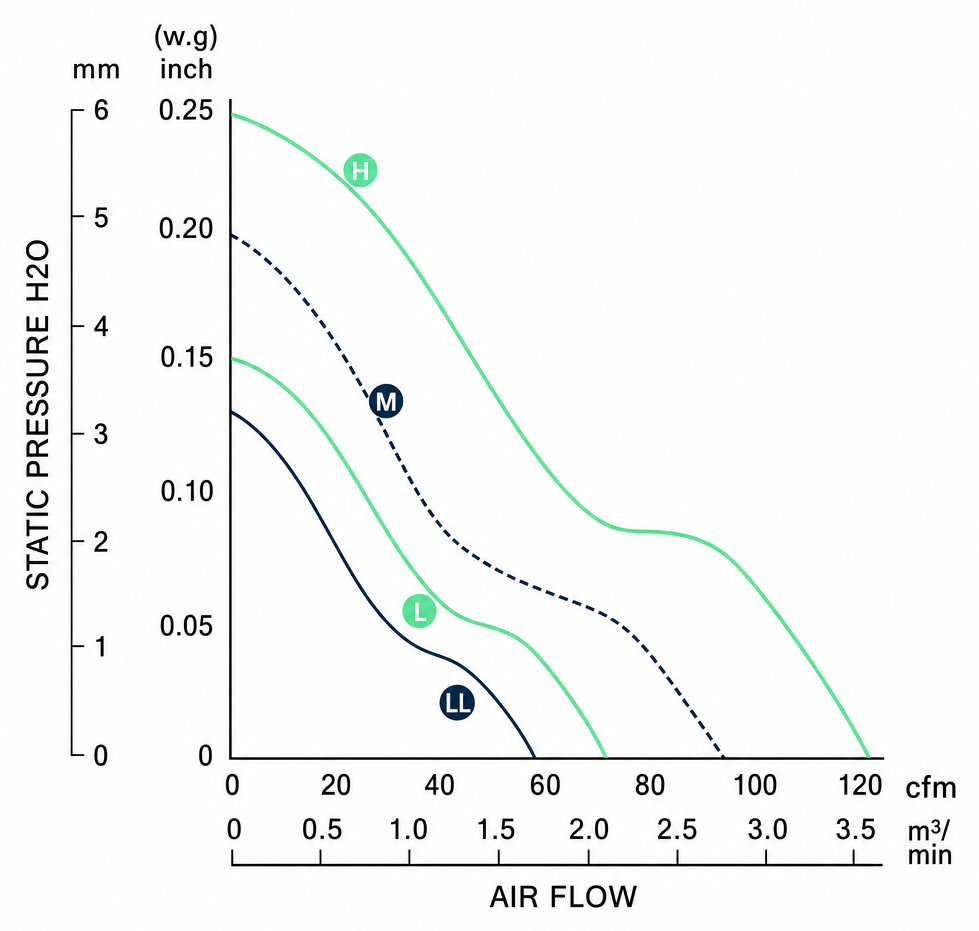

Performance P-Q Curve
Static pressure vs. airflow per speed variant. Manufacturer test data, tolerance ±10%.
Performance Data
| Model Number | Rated Voltage | Voltage Range | Input Power (W) | Current (A) | Speed (RPM) | Air Volume (m³/min) | Air Volume (CFM) | Max SP (mm H₂O) | Max SP (in H₂O) | Noise (dBA) | PQ Curve | UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BDC12025PM-12H | 12 VDC | 8~13.8 | 5.4 | 0.45 | 3100 | 3.4 | 120 | 6.1 | 0.24 | 42 | H | ✓ |
| BDC12025PM-12M | 12 VDC | 8~13.8 | 4.0 | 0.35 | 2500 | 2.5 | 90 | 4.83 | 0.19 | 35 | M | ✓ |
| BDC12025PM-12L | 12 VDC | 8~14 | 2.5 | 0.20 | 1900 | 2 | 70 | 3.81 | 0.15 | 25 | L | ✓ |
| BDC12025PM-12LL | 12 VDC | 8~14 | 1.68 | 0.14 | 1700 | 1.8 | 62 | 3.3 | 0.13 | 23 | LL | ✓ |
| BDC12025PM-24H | 24 VDC | 14~26 | 5.5 (~7.7) | 0.23 (~0.32) | 3100 | 3.4 | 120 | 6.1 | 0.24 | 42 | H | ✓ |
| BDC12025PM-24M | 24 VDC | 14~26 | 4.1 | 0.17 | 2500 | 2.5 | 90 | 4.83 | 0.19 | 35 | M | ✓ |
| BDC12025PM-24L | 24 VDC | 14~27.6 | 2.4 | 0.10 | 1900 | 2 | 70 | 3.81 | 0.15 | 25 | L | ✓ |
| BDC12025PM-48H | 48 VDC | 22~55 | 4.5 (~8.64) | 0.09 (~0.18) | 3100 | 3.4 | 120 | 6.1 | 0.24 | 42 | H | ✓ |
| BDC12025PM-48M | 48 VDC | 22~55 | 3.5 | 0.07 | 2500 | 2.5 | 90 | 4.83 | 0.19 | 35 | M | ✓ |
| BDC12025PM-48L | 48 VDC | 22~56 | 2.9 | 0.06 | 1900 | 2 | 70 | 3.81 | 0.15 | 25 | L | ✓ |
** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing Berring Industrial reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%
