BDC12025PM4 SERIES
120 × 120 × 25 mm DC Axial Fan
Specifications
| Series | BDC12025PM4 |
| Product Type | DC Axial Fan |
| Dimensions | 120 × 120 × 25 mm (4.7 × 4.7 × 1 in) |
| Rated Voltage | 12 / 24 / 48 VDC |
| Voltage Range | 6~13.2 / 14~26.4 / 22~55 VDC |
| Motor Type | Bryshless DC motor, option(auto cutoff/auto restart) |
| Burnout Protection | Electronically protected, polarity protected |
| IP Protection | IP55 / IP68 |
| Frame Material | Glass fiber reinforced thermoplastic, rated UL94V-0 |
| Impeller | Glass fiber reinforced plastic, rated UL94V-0 |
| Bearing | Ball bearing |
| Rotation | CCW when viewed from rotor |
| Connection | Lead wires or Terminals |
| Weight | 155g (0.34Lbs) |
Electrical & Environmental
| Dielectric Strength | 500VAC/min. Max leakage 0.5mA |
| Speed Control | Option : PWM, SC & SV... |
| Signal Output | Option : FG, RD... |
| Operating Temp. | –20°C to +65°C |
| Storage Temp. | –20°C to +75°C (at 65%RH) |
| Life Expectancy | L10 50K hours at 40°C |

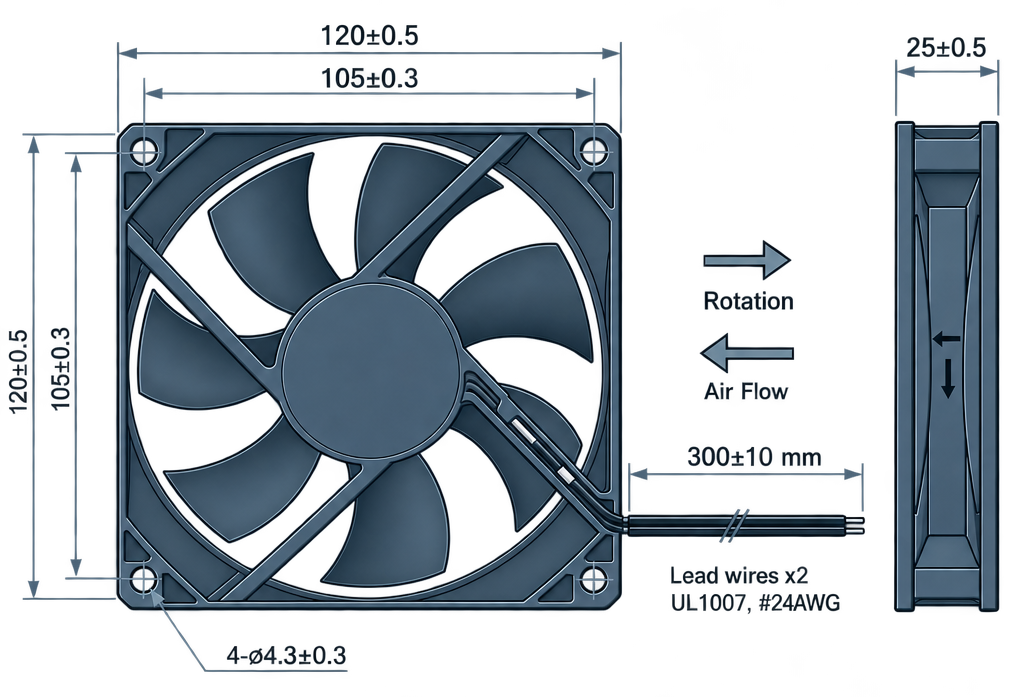

Technical Drawing
Dimensions in mm (inches). Tolerances as marked.

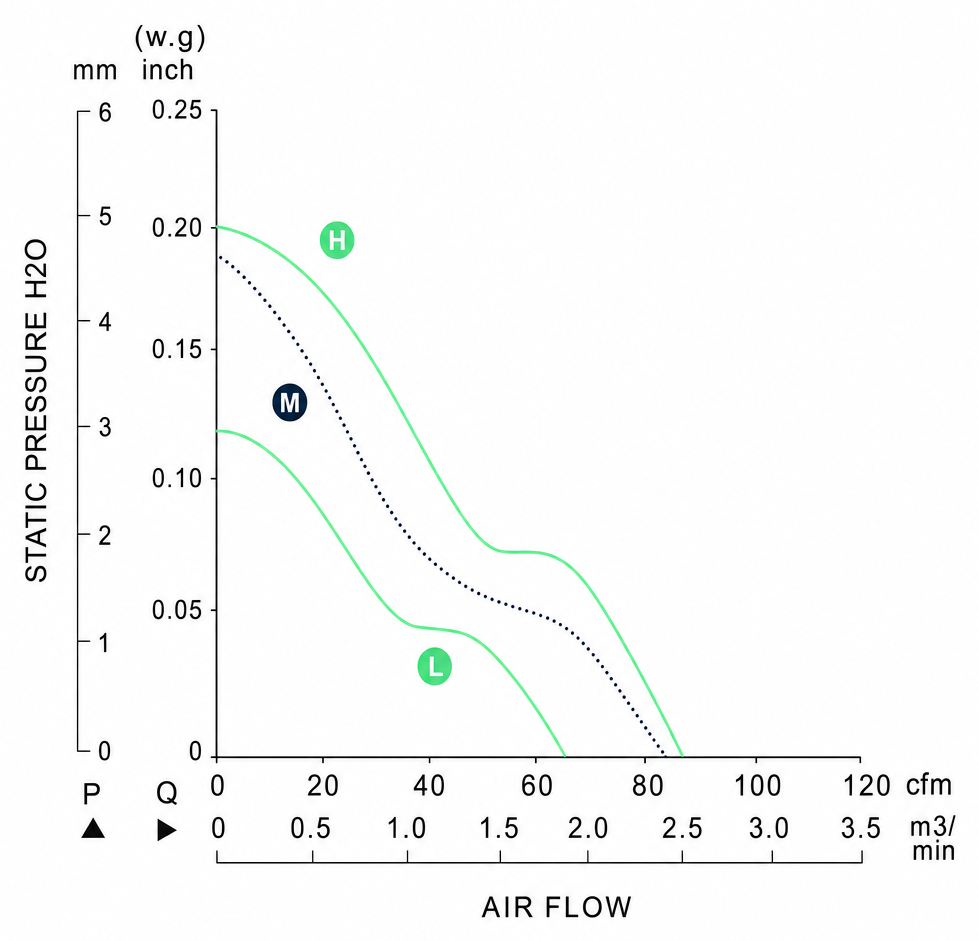

Performance P-Q Curve
Static pressure vs. airflow per speed variant. Manufacturer test data, tolerance ±10%.
Performance Data
| Model Number | Rated Voltage | Voltage Range | Input Power (W) | Current (A) | Speed (RPM) | Air Volume (m³/min) | Air Volume (CFM) | Max SP (mm H₂O) | Max SP (in H₂O) | Noise (dBA) | PQ Curve | UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BDC12025PM4-12HW | 12 VDC | 6~13.2 | 5.4 | 0.45 | 2500 | 2.5 | 88 | 5.08 | 0.2 | 36 | H | ✓ |
| BDC12025PM4-12MW | 12 VDC | 6~13.2 | 4.0 | 0.35 | 2200 | 2.3 | 80 | 4.57 | 0.18 | 31 | M | ✓ |
| BDC12025PM4-12LW | 12 VDC | 6~13.2 | 2.5 | 0.2 | 1900 | 2 | 70 | 3.3 | 0.13 | 29 | L | ✓ |
| BDC12025PM4-24HW | 24 VDC | 14~26.4 | 5.5 | 0.23 | 2500 | 2.5 | 88 | 5.08 | 0.2 | 36 | H | ✓ |
| BDC12025PM4-24MW | 24 VDC | 14~26.4 | 4.1 | 0.17 | 2200 | 2.3 | 80 | 4.57 | 0.18 | 31 | M | ✓ |
| BDC12025PM4-24LW | 24 VDC | 14~26.4 | 2.4 | 0.1 | 1900 | 2 | 70 | 3.3 | 0.13 | 29 | L | ✓ |
| BDC12025PM4-48HW | 48 VDC | 22~55 | 4.5 | 0.09 | 2500 | 2.5 | 88 | 5.08 | 0.2 | 36 | H | ✓ |
| BDC12025PM4-48MW | 48 VDC | 22~55 | 3.5 | 0.07 | 2200 | 2.3 | 80 | 4.57 | 0.18 | 31 | M | ✓ |
| BDC12025PM4-48LW | 48 VDC | 22~55 | 2.9 | 0.06 | 1900 | 2 | 70 | 3.3 | 0.13 | 29 | L | ✓ |
** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing Berring Industrial reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%
