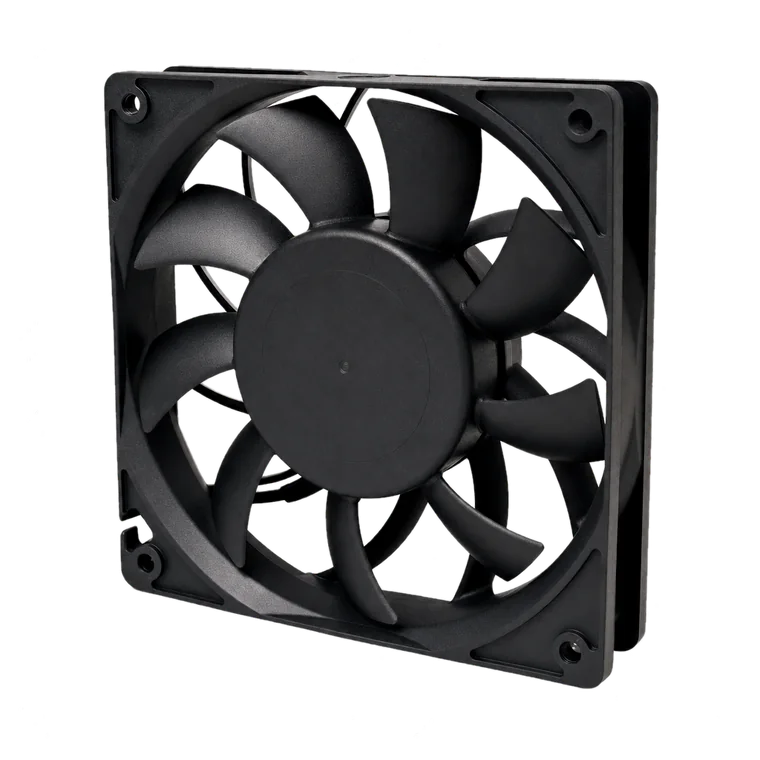

BDC12025PSM SERIES
120 × 120 × 25 mm DC Axial Fan
Specifications
| Series | BDC12025PSM |
| Product Type | DC Axial Fan |
| Dimensions | 120 × 120 × 25 mm (4.7 × 4.7 × 1 in) |
| Rated Voltage | 12 / 24 / 48 VDC |
| Voltage Range | 7~13.2 / 14~26.4 / 28~56 VDC |
| Motor Type | Brushless DC motor, option(auto cutoff/auto restart) |
| Burnout Protection | Electronically protected, polarity protected |
| IP Protection | IP55 / IP68 |
| Frame Material | Glass fiber reinforced thermoplastic, rated UL94V-0 |
| Impeller | Glass fiber reinforced plastic, rated UL94V-0 |
| Bearing | Ball bearing |
| Rotation | CCW when viewed from rotor |
| Connection | Lead wires or Terminals |
| Weight | 205g (0.45Lbs) |
Electrical & Environmental
| Dielectric Strength | 500VAC/min. Max leakage 0.5mA |
| Speed Control | Option : PWM, SC & SV... |
| Signal Output | Option : FG, RD... |
| Operating Temp. | –20°C to +65°C |
| Storage Temp. | –20°C to +75°C (at 65%RH) |
| Life Expectancy | L10 70K hours at 40°C |
Technical Drawing
Dimensions in mm (inches). Tolerances as marked.
Performance P-Q Curve

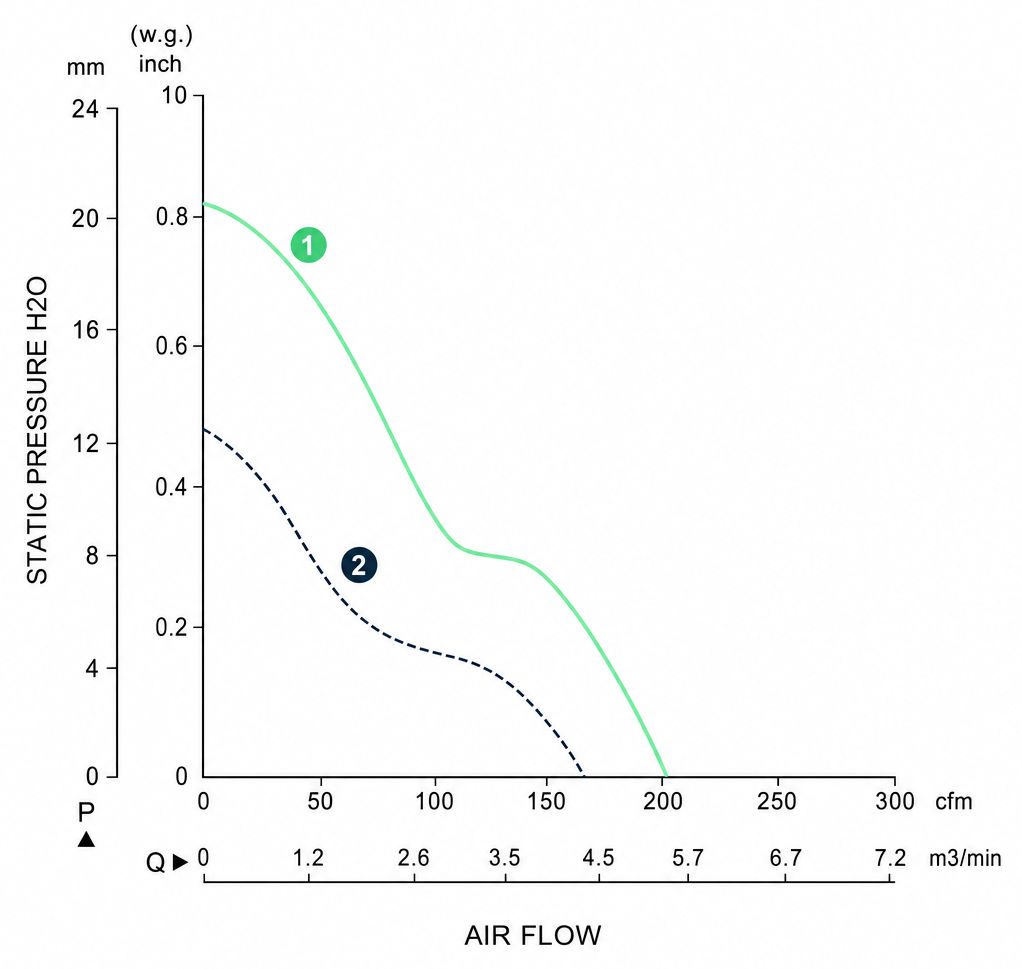

Static pressure vs. airflow per speed variant. Manufacturer test data, tolerance ±10%.
Performance Data
| Model Number | Rated Voltage | Voltage Range | Input Power (W) | Current (A) | Speed (RPM) | Air Volume (m³/min) | Air Volume (CFM) | Max SP (mm H₂O) | Max SP (in H₂O) | Noise (dBA) | PQ Curve | UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BDC12025PSM-12SHH** | 12 VDC | 7~13.2 | 18 | 1.5 | 5500 | 5.6 | 200 | 21.34 | 0.84 | 61 | 1 | ✓ |
| BDC12025PSM-12HH** | 12 VDC | 7~13.2 | 9 | 0.75 | 4000 | 4.5 | 160 | 12.45 | 0.49 | 54 | 2 | ✓ |
| BDC12025PSM-24SH** | 24 VDC | 14~26.4 | 20.4 | 0.85 | 5500 | 5.6 | 200 | 21.34 | 0.84 | 61 | 1 | ✓ |
| BDC12025PSM-24HHH** | 24 VDC | 14~26.4 | 15.6 | 0.65 | 4000 | 4.5 | 160 | 12.45 | 0.49 | 54 | 2 | ✓ |
| BDC12025PSM-48HHH** | 48 VDC | 28~56 | 24 | 0.5 | 4000 | 4.5 | 160 | 12.45 | 0.49 | 54 | 2 | ✓ |
** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing Berring Industrial reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%
