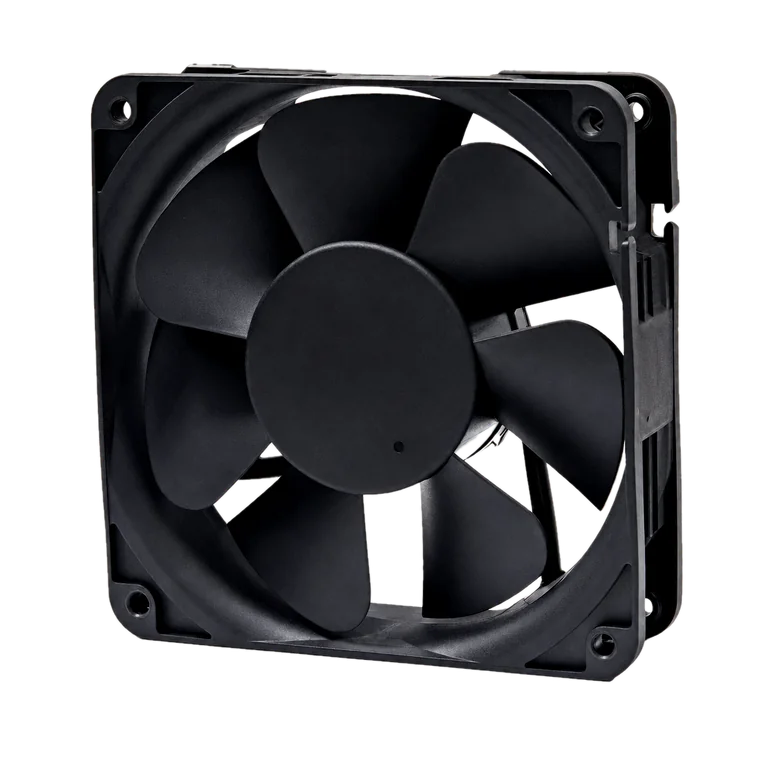

BDC12032P SERIES
120 × 120 × 32 mm DC Axial Fan
Specifications
| Series | BDC12032P |
| Product Type | DC Axial Fan |
| Dimensions | 120 × 120 × 32 mm (4.7 × 4.7 × 1.3 in) |
| Rated Voltage | 5 / 12 / 24 / 48 VDC |
| Voltage Range | 4~6 / 8~13.8 / 14~26.4 / 28~56 VDC |
| Motor Type | Brushless DC motor, option(auto cutoff/auto restart) |
| Burnout Protection | Electronically protected, polarity protected |
| IP Protection | IP55 / IP67 |
| Frame Material | Glass fiber reinforced thermoplastic, rated UL94V-0 |
| Impeller | Glass fiber reinforced plastic, rated UL94V-0 |
| Bearing | Ball bearing |
| Rotation | CCW when viewed from rotor |
| Connection | Lead wires or Terminals |
| Weight | 265g (0.58Lbs) |
Electrical & Environmental
| Dielectric Strength | 500VAC/min. Max leakage 0.5mA |
| Speed Control | Option : PWM, SC & SV... |
| Signal Output | Option : FG, RD... |
| Operating Temp. | –20°C to +65°C |
| Storage Temp. | –20°C to +75°C (at 65%RH) |
| Life Expectancy | L10 70K hours at 40°C |

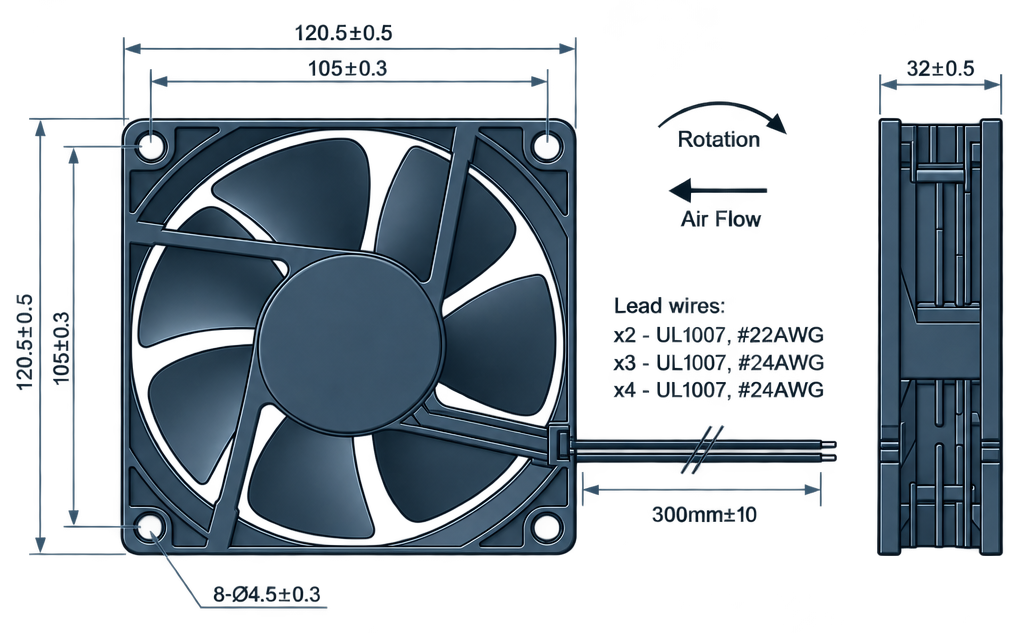

Technical Drawing
Dimensions in mm (inches). Tolerances as marked.

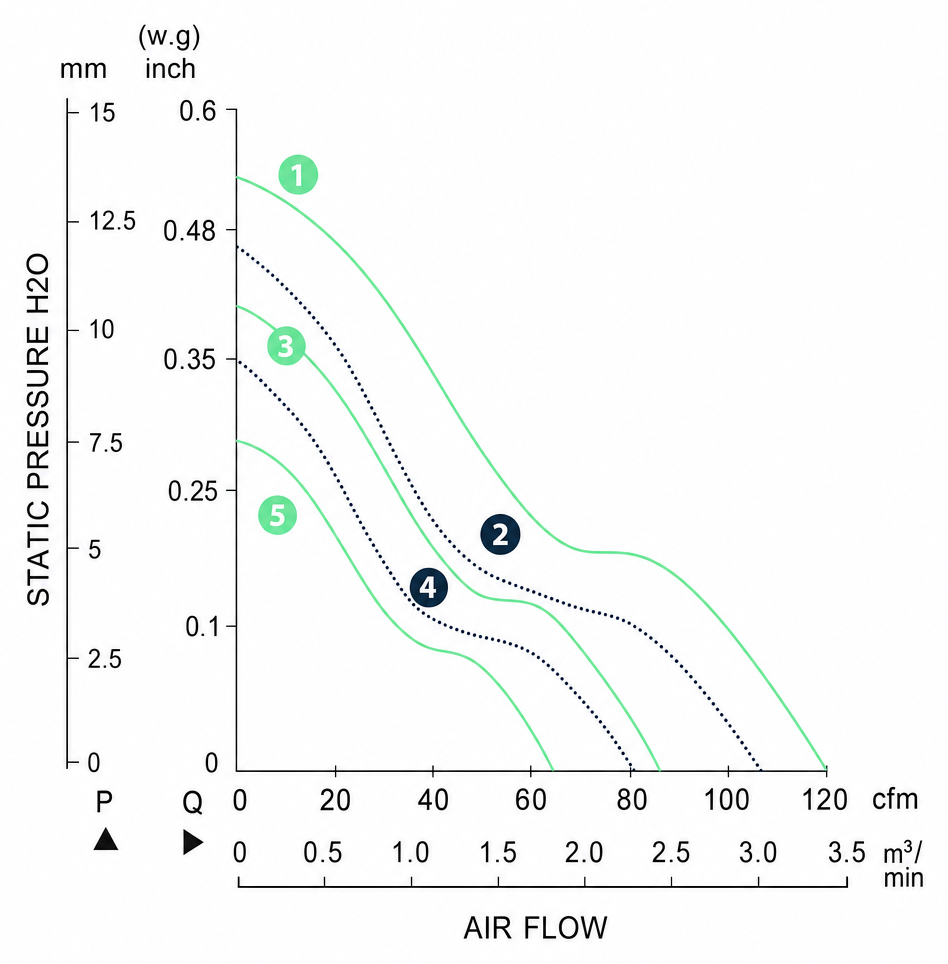

Performance P-Q Curve
Static pressure vs. airflow per speed variant. Manufacturer test data, tolerance ±10%.
Performance Data
| Model Number | Rated Voltage | Voltage Range | Input Power (W) | Current (A) | Speed (RPM) | Air Volume (m³/min) | Air Volume (CFM) | Max SP (mm H₂O) | Max SP (in H₂O) | Noise (dBA) | PQ Curve | UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BDC12032P-05SH** | 5 VDC | 4~6 | 9.5 | 1.9 | 3750 | 3.4 | 120 | 13.46 | 0.53 | 45 | 1 | ✓ |
| BDC12032P-05HH** | 5 VDC | 4~6 | 8 | 1.6 | 3300 | 3 | 107 | 11.94 | 0.47 | 40 | 2 | ✓ |
| BDC12032P-05H** | 5 VDC | 4~6 | 5 | 0.98 | 2900 | 2.6 | 93 | 10.41 | 0.41 | 35 | 3 | ✓ |
| BDC12032P-05M** | 5 VDC | 4~6 | 3.3 | 0.65 | 2400 | 2.3 | 80 | 8.89 | 0.35 | 29 | 4 | ✓ |
| BDC12032P-05L** | 5 VDC | 4~6 | 2.5 | 0.5 | 2000 | 1.8 | 65 | 7.11 | 0.28 | 25 | 5 | ✓ |
| BDC12032P-12SHH** | 12 VDC | 8~13.8 | 30 | 2.5 | 4200 | 3.8 | 135 | 15.24 | 0.6 | 50 | SHH | ✓ |
| BDC12032P-12SH** | 12 VDC | 8~13.8 | 10.1 | 0.84 | 3750 | 3.4 | 120 | 13.46 | 0.53 | 45 | 1 | ✓ |
| BDC12032P-12HH** | 12 VDC | 8~13.8 | 8.4 | 0.7 | 3300 | 3 | 107 | 11.94 | 0.47 | 40 | 2 | ✓ |
| BDC12032P-12H** | 12 VDC | 8~13.8 | 6 | 0.5 | 2900 | 2.6 | 93 | 10.41 | 0.41 | 35 | 3 | ✓ |
| BDC12032P-12M** | 12 VDC | 8~13.8 | 5 | 0.4 | 2400 | 2.3 | 80 | 8.89 | 0.35 | 29 | 4 | ✓ |
| BDC12032P-12L** | 12 VDC | 8~13.8 | 3 | 0.25 | 2000 | 1.8 | 65 | 7.11 | 0.28 | 25 | 5 | ✓ |
| BDC12032P-24SH** | 24 VDC | 14~26.4 | 10.1 | 0.42 | 3750 | 3.4 | 120 | 13.46 | 0.53 | 45 | 1 | ✓ |
| BDC12032P-24HH** | 24 VDC | 14~26.4 | 8.4 | 0.35 | 3300 | 3 | 107 | 11.94 | 0.47 | 40 | 2 | ✓ |
| BDC12032P-24H** | 24 VDC | 14~26.4 | 7.2 | 0.3 | 2900 | 2.6 | 93 | 10.41 | 0.41 | 35 | 3 | ✓ |
| BDC12032P-24M** | 24 VDC | 14~26.4 | 4.8 | 0.2 | 2400 | 2.3 | 80 | 8.89 | 0.35 | 29 | 4 | ✓ |
| BDC12032P-24L** | 24 VDC | 14~26.4 | 3.6 | 0.15 | 2000 | 1.8 | 65 | 7.11 | 0.28 | 25 | 5 | ✓ |
| BDC12032P-48SH** | 48 VDC | 28~56 | 10.1 | 0.21 | 3750 | 3.4 | 120 | 13.46 | 0.53 | 45 | 1 | ✓ |
| BDC12032P-48HH** | 48 VDC | 28~56 | 8.6 | 0.18 | 3300 | 3 | 107 | 11.94 | 0.47 | 40 | 2 | ✓ |
| BDC12032P-48H** | 48 VDC | 28~56 | 6 | 0.12 | 2900 | 2.6 | 93 | 10.41 | 0.41 | 35 | 3 | ✓ |
| BDC12032P-48M** | 48 VDC | 28~56 | 4 | 0.08 | 2400 | 2.3 | 80 | 8.89 | 0.35 | 29 | 4 | ✓ |
| BDC12032P-48L** | 48 VDC | 28~56 | 3.4 | 0.07 | 2000 | 1.8 | 65 | 7.11 | 0.28 | 25 | 5 | ✓ |
** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing Berring Industrial reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%
