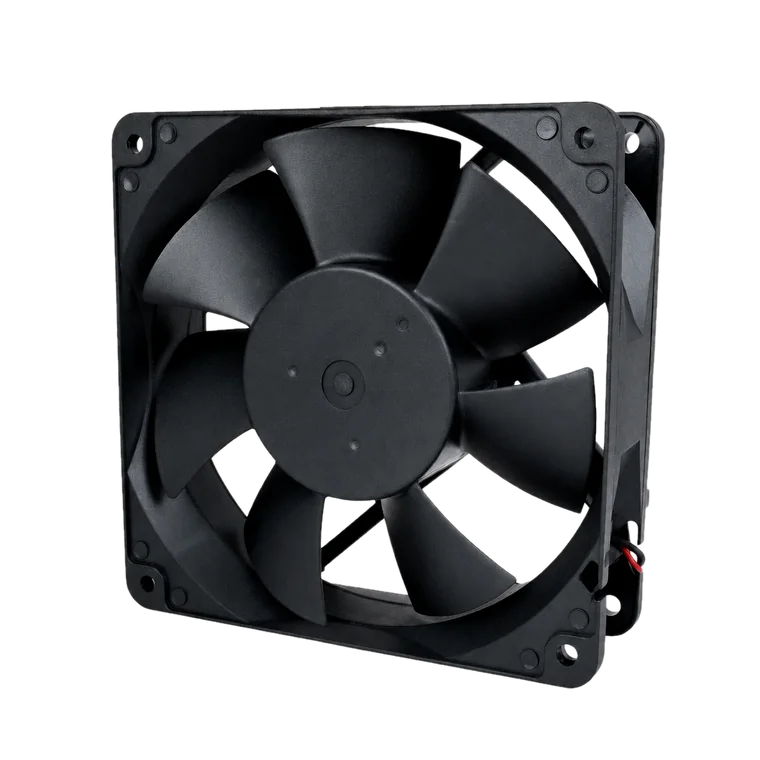

BDC12038PM SERIES
120 × 120 × 38 mm DC Axial Fan
Specifications
| Series | BDC12038PM |
| Product Type | DC Axial Fan |
| Dimensions | 120 × 120 × 38 mm (4.7 × 4.7 × 1.5 in) |
| Rated Voltage | 5 / 12 / 24 / 38 / 48 VDC |
| Voltage Range | 4~6 / 8~13.8 / 15~26 / 18~27 / 18~27.6 / 28~42 / 28~55 / 28~55.2 / 30~56 VDC |
| Motor Type | Brushless DC motor, option(auto cutoff/auto restart) |
| Burnout Protection | Electronically protected, polarity protected |
| IP Protection | IP55 / IP68 |
| Frame Material | Glass fiber reinforced thermoplastic, rated UL94V-0 |
| Impeller | Glass fiber reinforced plastic, rated UL94V-0 |
| Bearing | Ball bearing |
| Rotation | CCW when viewed from rotor |
| Connection | Lead wires or Terminals |
| Weight | 200g (0.44Lbs) |
Electrical & Environmental
| Dielectric Strength | 500VAC/min. Max leakage 0.5mA |
| Speed Control | Option : PWM, SC & SV... |
| Signal Output | Option : FG, RD... |
| Operating Temp. | –20°C to +65°C |
| Storage Temp. | –20°C to +75°C (at 65%RH) |
| Life Expectancy | L10 70K hours at 40°C |
Technical Drawing
Dimensions in mm (inches). Tolerances as marked.

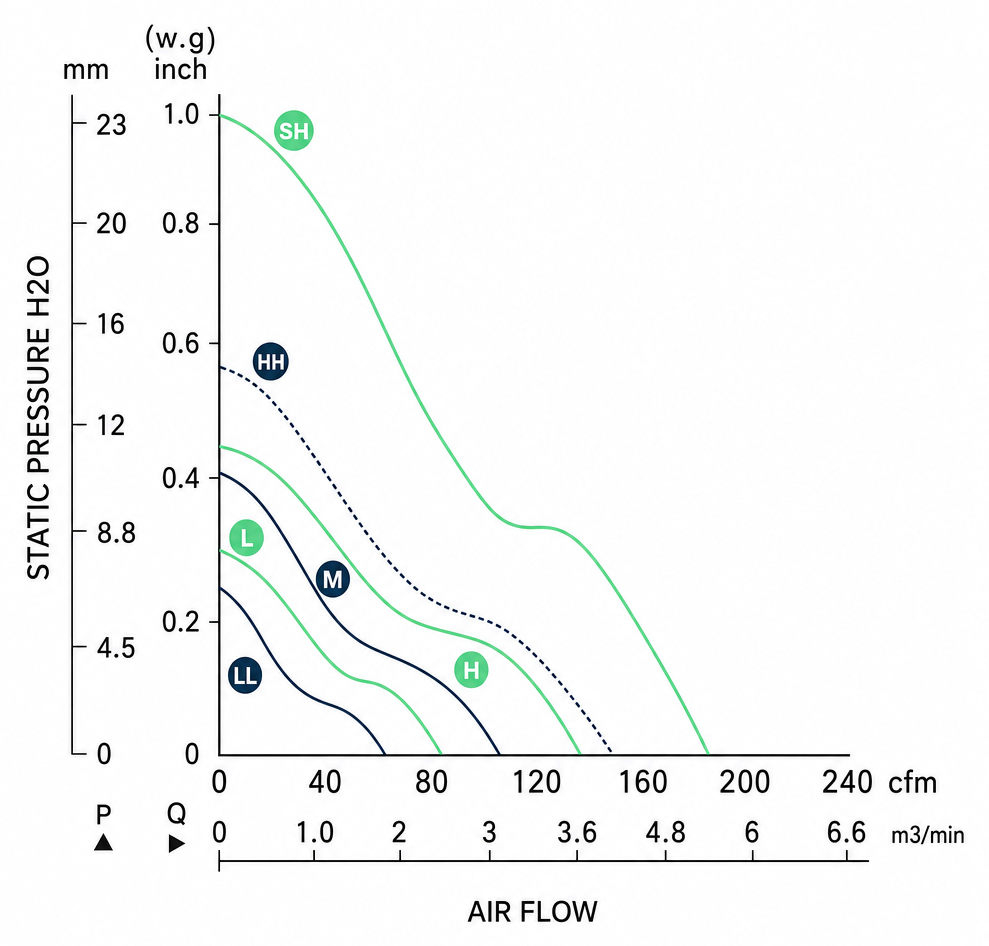

Performance P-Q Curve
Static pressure vs. airflow per speed variant. Manufacturer test data, tolerance ±10%.
Performance Data
| Model Number | Rated Voltage | Voltage Range | Input Power (W) | Current (A) | Speed (RPM) | Air Volume (m³/min) | Air Volume (CFM) | Max SP (mm H₂O) | Max SP (in H₂O) | Noise (dBA) | PQ Curve | UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BDC12038PM-05SHH** | 5 VDC | 4~6 | 16 | 3.2 | 3600 | 4.5 | 160 | 19.3 | 0.76 | 51 | SHH | ✓ |
| BDC12038PM-05SH** | 5 VDC | 4~6 | 12.5 | 2.5 | 3400 | 4.3 | 152 | 16.76 | 0.66 | 50 | SH | ✓ |
| BDC12038PM-05HHH** | 5 VDC | 4~6 | 11.5 | 2.3 | 3300 | 4.2 | 148 | 15.24 | 0.6 | 49 | HHH | ✓ |
| BDC12038PM-05HH** | 5 VDC | 4~6 | 10 | 2 | 3200 | 3.9 | 136 | 14.22 | 0.56 | 48 | HH | ✓ |
| BDC12038PM-05H** | 5 VDC | 4~6 | 9.5 | 1.9 | 3100 | 3.7 | 130 | 13.46 | 0.53 | 46 | H | ✓ |
| BDC12038PM-05M** | 5 VDC | 4~6 | 8 | 1.6 | 2800 | 3.5 | 125 | 12.7 | 0.5 | 44 | M | ✓ |
| BDC12038PM-05L** | 5 VDC | 4~6 | 7 | 1.4 | 2600 | 3.3 | 115 | 10.92 | 0.43 | 41 | L | ✓ |
| BDC12038PM-05LL** | 5 VDC | 4~6 | 6 | 1.2 | 2500 | 3.1 | 110 | 10.16 | 0.4 | 39 | LL | ✓ |
| BDC12038PM-05LLL** | 5 VDC | 4~6 | 3.25 | 0.65 | 2200 | 2.9 | 102 | 9.4 | 0.37 | 37 | LLL | ✓ |
| BDC12038PM-05SL** | 5 VDC | 4~6 | 2.75 | 0.55 | 2000 | 2.5 | 90 | 8.13 | 0.32 | 35 | SL | ✓ |
| BDC12038PM-05SLL** | 5 VDC | 4~6 | 2 | 0.4 | 1200 | 1.7 | 60 | 5.59 | 0.22 | 24 | SLL | ✓ |
| BDC12038PM-05EL** | 5 VDC | 4~6 | 1.75 | 0.35 | 1000 | 1.4 | 50 | 4.57 | 0.18 | 20 | EL | ✓ |
| BDC12038PM-12SH** | 12 VDC | 8~13.8 | 10.6 (~17) | 0.88 (~1.43) | 4200 | 5.1 | 180 | 24.89 | 0.98 | 54 | SH | ✓ |
| BDC12038PM-12HH** | 12 VDC | 8~13.8 | 8.4 (~10) | 0.7 (~0.9) | 3200 | 3.9 | 136 | 14.22 | 0.56 | 48 | HH | ✓ |
| BDC12038PM-12H** | 12 VDC | 8~13.8 | 6.0 | 0.50 | 2900 | 3.5 | 124 | 11.94 | 0.47 | 44 | H | ✓ |
| BDC12038PM-12M** | 12 VDC | 8~13.8 | 4.8 | 0.40 | 2600 | 3.3 | 115 | 10.92 | 0.43 | 41 | M | ✓ |
| BDC12038PM-12L** | 12 VDC | 8~13.8 | 2.4 | 0.2 | 2000 | 2.5 | 90 | 8.13 | 0.32 | 35 | L | ✓ |
| BDC12038PM-12L** (2L) | 12 VDC | 8~13.8 | 2.4 | 0.2 | 1500 | 1.9 | 68 | 6.1 | 0.24 | 28 | LL | ✓ |
| BDC12038PM-24SH** | 24 VDC | 15~26 | 10.3 (~22) | 0.43 (~0.9) | 4200 | 5.1 | 180 | 24.89 | 0.98 | 54 | SH | ✓ |
| BDC12038PM-24HH** | 24 VDC | 15~26 | 8.4 (~14.8) | 0.35 (~0.62) | 3200 | 3.9 | 136 | 14.22 | 0.56 | 48 | HH | ✓ |
| BDC12038PM-24H** | 24 VDC | 15~26 | 5.5 (~12) | 0.23 (~0.5) | 2900 | 3.5 | 124 | 11.94 | 0.47 | 44 | H | ✓ |
| BDC12038PM-24M** | 24 VDC | 18~27 | 4.6 (~8) | 0.19 (~0.34) | 2600 | 3.3 | 115 | 10.92 | 0.43 | 41 | M | ✓ |
| BDC12038PM-24L** | 24 VDC | 18~27.6 | 3.6 | 0.15 | 2000 | 2.5 | 90 | 8.13 | 0.32 | 35 | L | ✓ |
| BDC12038PM-24L** (2L) | 24 VDC | 18~27.6 | 3.6 | 0.15 | 1500 | 1.9 | 68 | 6.1 | 0.24 | 28 | LL | ✓ |
| BDC12038PM-38SH** | 38 VDC | 28~42 | 10.3 (~17.48) | 0.27 (~0.46) | 4200 | 5.1 | 180 | 24.89 | 0.98 | 54 | SH | ✓ |
| BDC12038PM-38HH** | 38 VDC | 28~42 | 8 | 0.21 | 3200 | 3.9 | 136 | 14.22 | 0.56 | 48 | HH | ✓ |
| BDC12038PM-38H** | 38 VDC | 28~42 | 5.4 | 0.14 | 2900 | 3.5 | 124 | 11.94 | 0.47 | 44 | H | ✓ |
| BDC12038PM-38M** | 38 VDC | 28~42 | 3.8 | 0.1 | 2600 | 3.3 | 115 | 10.92 | 0.43 | 41 | M | ✓ |
| BDC12038PM-38L** | 38 VDC | 28~42 | 3 | 0.08 | 2000 | 2.5 | 90 | 8.13 | 0.32 | 35 | L | ✓ |
| BDC12038PM-38L** (2L) | 38 VDC | 28~42 | 3 | 0.08 | 1500 | 1.9 | 68 | 6.1 | 0.24 | 28 | LL | ✓ |
| BDC12038PM-48SH** | 48 VDC | 28~55 | 10.6 (~20) | 0.22 (~0.41) | 4200 | 5.1 | 180 | 24.89 | 0.98 | 54 | SH | ✓ |
| BDC12038PM-48HH** | 48 VDC | 28~55 | 7.7 (~15) | 0.16 (~0.3) | 3200 | 3.9 | 136 | 14.22 | 0.56 | 48 | HH | ✓ |
| BDC12038PM-48H** | 48 VDC | 28~55 | 5.0 (~14) | 0.10 (~0.29) | 2900 | 3.5 | 124 | 11.94 | 0.47 | 44 | H | ✓ |
| BDC12038PM-48M** | 48 VDC | 28~55.2 | 3.8 (~7) | 0.08 (~0.14) | 2600 | 3.3 | 115 | 10.92 | 0.43 | 41 | M | ✓ |
| BDC12038PM-48L** | 48 VDC | 30~56 | 3.4 | 0.07 | 2000 | 2.5 | 90 | 8.13 | 0.32 | 35 | L | ✓ |
| BDC12038PM-48L** (2L) | 48 VDC | 30~56 | 3.4 | 0.07 | 1500 | 1.9 | 68 | 6.1 | 0.24 | 28 | LL | ✓ |
** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing Berring Industrial reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%
