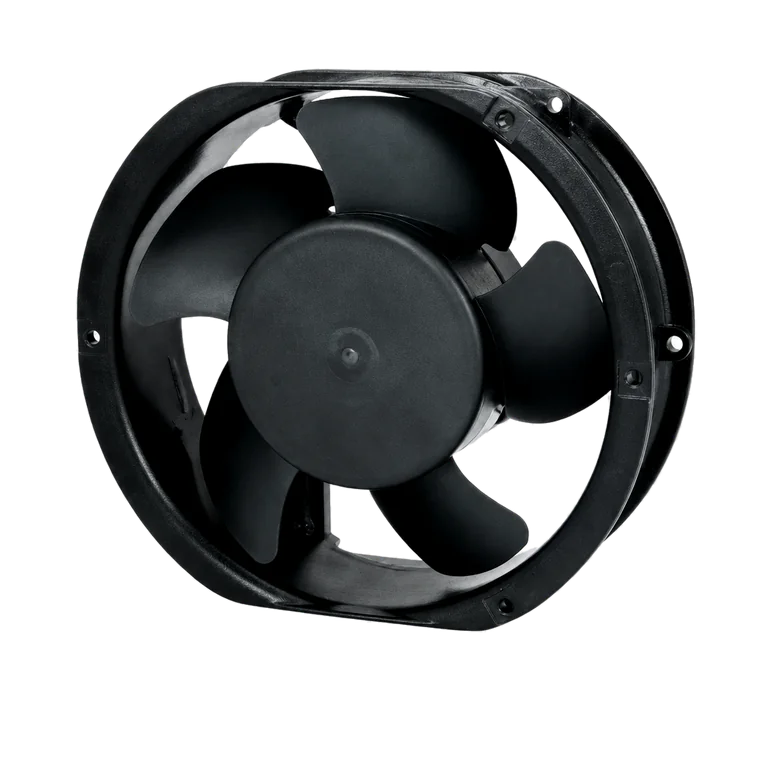

BDC15051ABM SERIES
172 × 152 × 51.6 mm DC Axial Fan
Specifications
| Series | BDC15051ABM |
| Product Type | DC Axial Fan |
| Dimensions | 172 × 152 × 51.6 mm (6.8 × 6 × 2 in) |
| Rated Voltage | 12 / 24 / 48 VDC |
| Voltage Range | 8~13.8 / 14~26.4 / 15~27 / 15~27.6 / 17~27.6 / 17~28 / 28~56 VDC |
| Motor Type | Brushless DC Motor, option(auto cutoff/auto restart) |
| Burnout Protection | Electronically protected, polarity protected |
| IP Protection | IP55 / IP68 |
| Frame Material | Aluminum die-cast, black finish |
| Impeller | Glass fiber reinforced plastic, rated UL94V-0 |
| Bearing | Ball bearing |
| Rotation | CCW when viewed from rotor |
| Connection | Lead wires |
| Weight | 500g (1.1Lbs) |
Electrical & Environmental
| Dielectric Strength | 500VAC/min. Max leakage 0.5mA |
| Speed Control | Option : PWM, SC & SV... |
| Signal Output | Option : FG, RD... |
| Operating Temp. | –20°C to +65°C |
| Storage Temp. | –20°C to +75°C (at 65%RH) |
| Life Expectancy | L10 70K hours at 40°C |
Technical Drawing
Dimensions in mm (inches). Tolerances as marked.

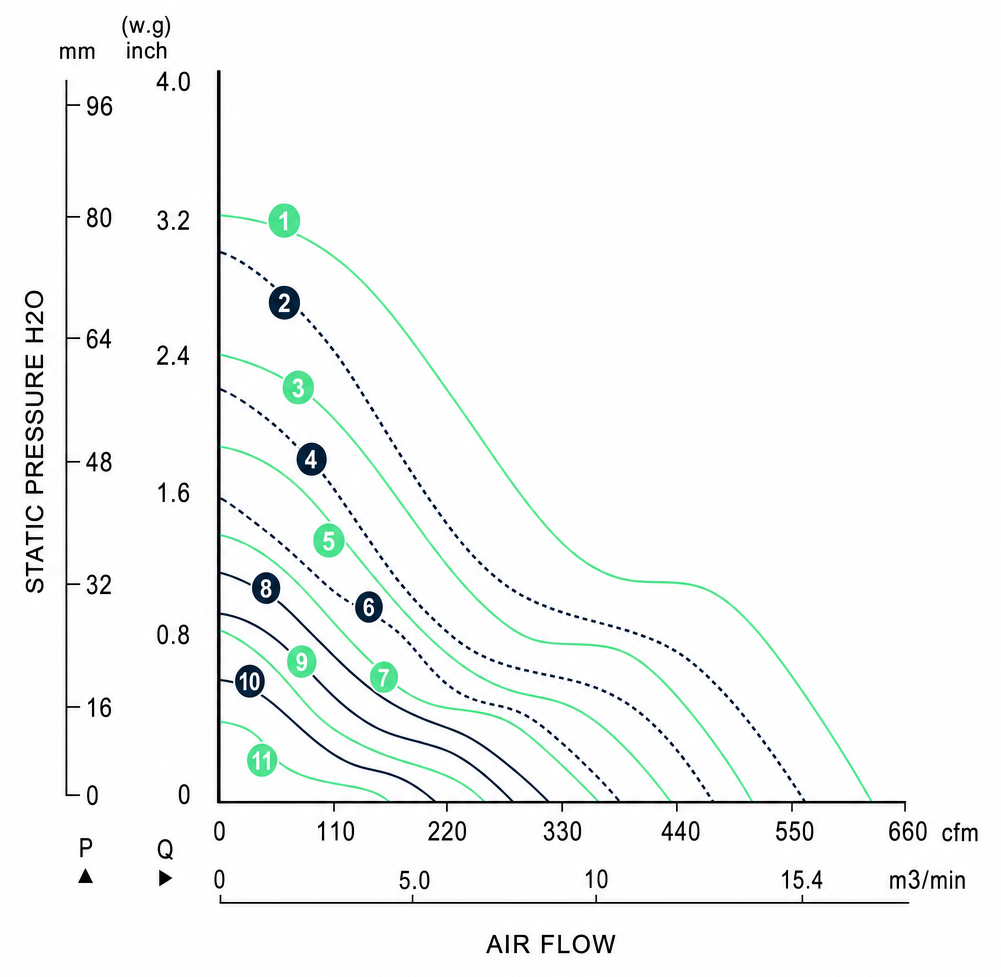

Performance P-Q Curve
Static pressure vs. airflow per speed variant. Manufacturer test data, tolerance ±10%.
Performance Data
| Model Number | Rated Voltage | Voltage Range | Input Power (W) | Current (A) | Speed (RPM) | Air Volume (m³/min) | Air Volume (CFM) | Max SP (mm H₂O) | Max SP (in H₂O) | Noise (dBA) | PQ Curve | UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BDC15051ABM-12H** | 12 VDC | 8~13.8 | 23 | 1.9 | 4000 | 8.2 | 291 | 23.11 | 0.91 | 61.5 | 9 | ✓ |
| BDC15051ABM-12M** | 12 VDC | 8~13.8 | 13.2 (~19.2) | 1.1 (~1.6) | 3500 | 7.4 | 263 | 20.83 | 0.82 | 57 | 10 | ✓ |
| BDC15051ABM-12L** | 12 VDC | 8~13.8 | 5.5 | 0.45 | 2500 | 5.3 | 187 | 8.89 | 0.35 | 52 | 11 | ✓ |
| BDC15051ABM-24EHH** | 24 VDC | 14~26.4 | 110.4 | 4.6 | 7000 | 14.7 | 520 | 58.42 | 2.3 | 78 | 3 | ✓ |
| BDC15051ABM-24EH** | 24 VDC | 14~26.4 | 96 | 4.0 | 6500 | 13.5 | 475 | 54.36 | 2.14 | 73 | 4 | ✓ |
| BDC15051ABM-24SHH** | 24 VDC | 14~26.4 | 86.4 | 3.6 | 6000 | 12.5 | 440 | 46.23 | 1.82 | 72 | 5 | ✓ |
| BDC15051ABM-24SH** | 24 VDC | 15~27 | 63.6 | 2.65 | 5200 | 10.7 | 378 | 34.54 | 1.36 | 68 | 7 | ✓ |
| BDC15051ABM-24HH** | 24 VDC | 15~27 | 50.4 | 2.1 | 4400 | 9.1 | 323 | 26.92 | 1.06 | 63.5 | 8 | ✓ |
| BDC15051ABM-24H** | 24 VDC | 15~27.6 | 24 (~31.2) | 0.97 (~1.3) | 4000 | 8.2 | 291 | 23.11 | 0.91 | 61.5 | 9 | ✓ |
| BDC15051ABM-24M** | 24 VDC | 17~27.6 | 13 (~19.2) | 0.52 (~0.8) | 3500 | 7.4 | 263 | 20.83 | 0.82 | 57 | 10 | ✓ |
| BDC15051ABM-24L** | 24 VDC | 17~28 | 5 (~9.6) | 0.20 (~0.4) | 2500 | 5.3 | 187 | 8.89 | 0.35 | 52 | 11 | ✓ |
| BDC15051ABM-48JHH** | 48 VDC | 28~56 | 168 | 3.5 | 8000 | 17.3 | 610 | 78.74 | 3.1 | 83 | 1 | ✓ |
| BDC15051ABM-48JH** | 48 VDC | 28~56 | 129.6 (~168) | 2.7 (~3.5) | 7500 | 16.1 | 568 | 72.39 | 2.85 | 80 | 2 | ✓ |
| BDC15051ABM-48EHH** | 48 VDC | 28~56 | 120 | 2.5 | 6500 | 13.5 | 475 | 54.36 | 2.14 | 73 | 4 | ✓ |
| BDC15051ABM-48EH** | 48 VDC | 28~56 | 105.6 | 2.2 | 6000 | 12.5 | 440 | 46.23 | 1.82 | 72 | 5 | ✓ |
| BDC15051ABM-48SHH** | 48 VDC | 28~56 | 95.04 | 1.98 | 5500 | 11.3 | 400 | 39.37 | 1.55 | 70 | 6 | ✓ |
| BDC15051ABM-48SH** | 48 VDC | 28~56 | 62.4 | 1.3 | 5200 | 10.7 | 378 | 34.54 | 1.36 | 68 | 7 | ✓ |
| BDC15051ABM-48HH** | 48 VDC | 28~56 | 49.4 | 1.03 | 4400 | 9.1 | 323 | 26.92 | 1.06 | 63.5 | 8 | ✓ |
| BDC15051ABM-48H** | 48 VDC | 28~56 | 23.5 (~36) | 0.48 (~0.75) | 4000 | 8.2 | 291 | 23.11 | 0.91 | 61.5 | 9 | ✓ |
| BDC15051ABM-48M** | 48 VDC | 28~56 | 14.5 | 0.30 | 3500 | 7.4 | 263 | 20.83 | 0.82 | 57 | 10 | ✓ |
| BDC15051ABM-48L** | 48 VDC | 28~56 | 5.8 | 0.12 | 2500 | 5.3 | 187 | 8.89 | 0.35 | 52 | 11 | ✓ |
** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing Berring Industrial reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%
