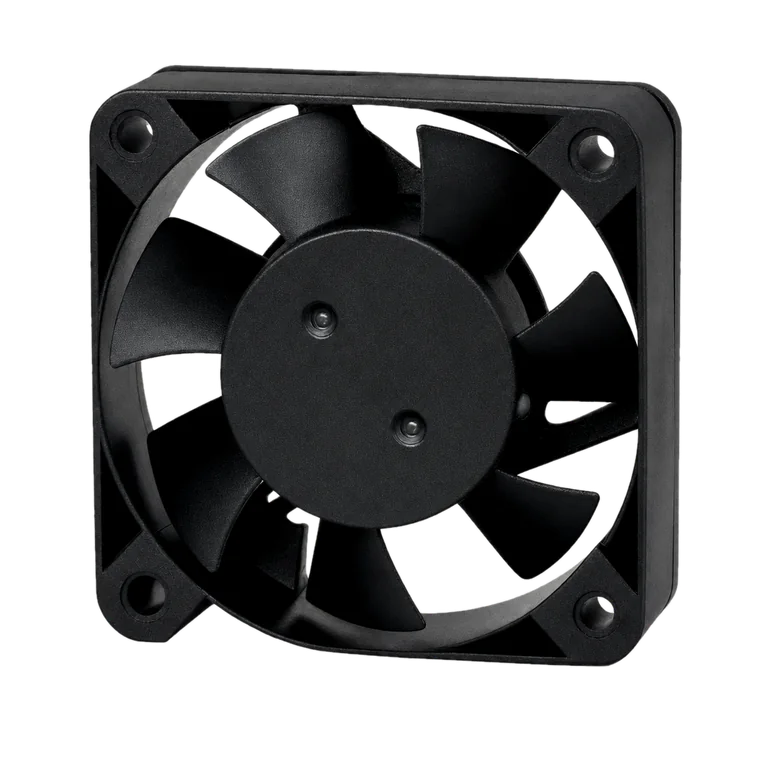

BDC4010PM SERIES
40 × 40 × 10.5 mm DC Axial Fan
Specifications
| Series | BDC4010PM |
| Product Type | DC Axial Fan |
| Dimensions | 40 × 40 × 10.5 mm (1.6 × 1.6 × 0.4 in) |
| Rated Voltage | 5 / 12 / 24 VDC |
| Voltage Range | 4.5~5.5 / 9-14 / 16~27 VDC |
| Motor Type | Brushless DC motor, option(auto cutoff/auto restart) |
| Burnout Protection | Electronically protected, polarity protected |
| IP Protection | IP55 / IP67 |
| Frame Material | Glass fiber reinforced thermoplastic, rated UL94V-0 |
| Impeller | Glass fiber reinforced plastic, rated UL94V-0 |
| Bearing | Ball bearing |
| Rotation | CCW when viewed from rotor |
| Connection | Lead wires |
| Weight | 16g (0.035Lbs) |
Electrical & Environmental
| Dielectric Strength | 500VAC/min. Max leakage 0.5mA |
| Speed Control | Option : PWM, SC & SV... |
| Signal Output | Option : FG, RD... |
| Operating Temp. | –20°C to +65°C |
| Storage Temp. | –20°C to +75°C (at 65%RH) |
| Life Expectancy | L10 70K hours at 40°C |
Technical Drawing
Dimensions in mm (inches). Tolerances as marked.

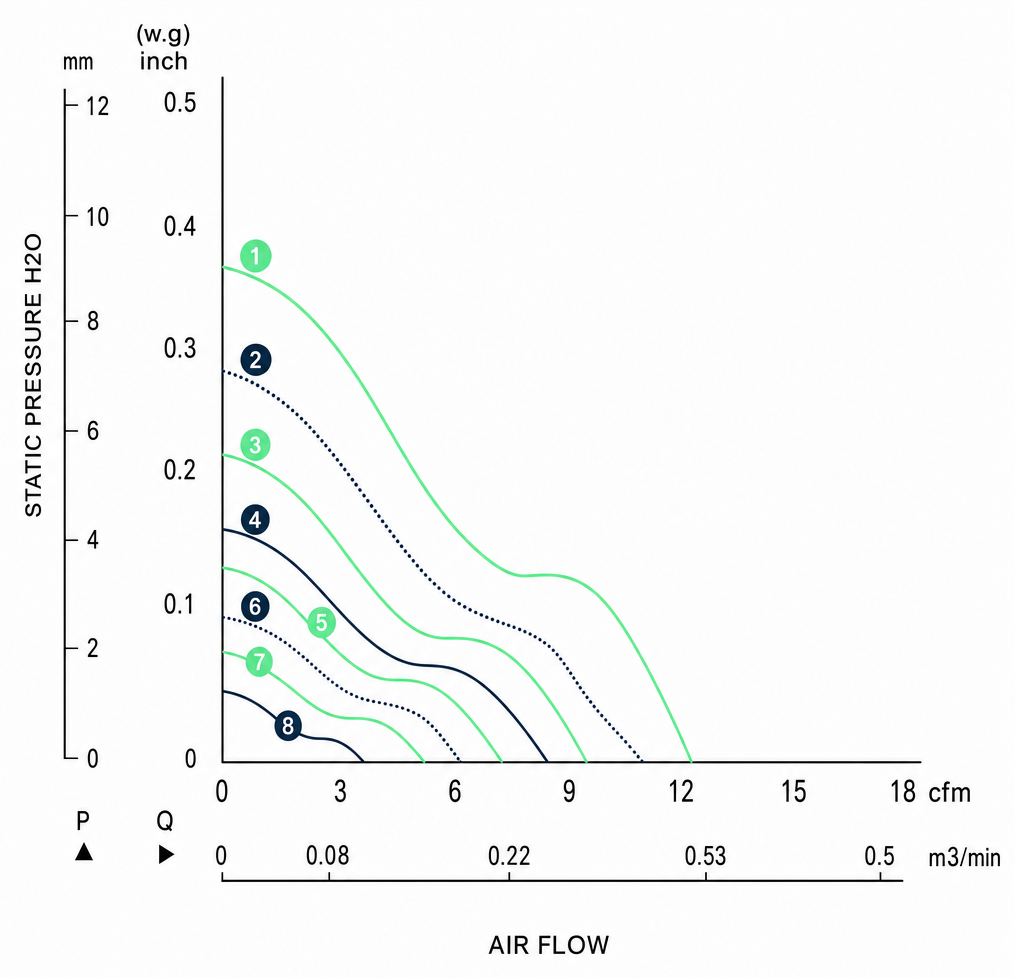

Performance P-Q Curve
Static pressure vs. airflow per speed variant. Manufacturer test data, tolerance ±10%.
Performance Data
| Model Number | Rated Voltage | Voltage Range | Input Power (W) | Current (A) | Speed (RPM) | Air Volume (m³/min) | Air Volume (CFM) | Max SP (mm H₂O) | Max SP (in H₂O) | Noise (dBA) | PQ Curve | UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BDC4010PM-05SHH** | 5 VDC | 4.5~5.5 | 1.25 | 0.25 | 10000 | 0.4 | 12.5 | 8.89 | 0.35 | 39 | 1 | ✓ |
| BDC4010PM-05SH** | 5 VDC | 4.5~5.5 | 1.25 | 0.25 | 9000 | 0.3 | 11 | 6.86 | 0.27 | 37 | 2 | ✓ |
| BDC4010PM-05HHH** | 5 VDC | 4.5~5.5 | 1.15 | 0.23 | 8000 | 0.3 | 9.5 | 5.59 | 0.22 | 35 | 3 | ✓ |
| BDC4010PM-05HH** | 5 VDC | 4.5~5.5 | 0.9 | 0.18 | 7000 | 0.2 | 8.5 | 4.57 | 0.18 | 32 | 4 | ✓ |
| BDC4010PM-05H** | 5 VDC | 4.5~5.5 | 0.75 | 0.15 | 6500 | 0.2 | 8.0 | 3.81 | 0.15 | 28 | 5 | ✓ |
| BDC4010PM-05M** | 5 VDC | 4.5~5.5 | 0.6 | 0.12 | 6000 | 0.2 | 7.5 | 3.05 | 0.12 | 26 | 6 | ✓ |
| BDC4010PM-05L** | 5 VDC | 4.5~5.5 | 0.4 | 0.08 | 5000 | 0.2 | 6.5 | 2.03 | 0.08 | 24 | 7 | ✓ |
| BDC4010PM-05LL** | 5 VDC | 4.5~5.5 | 0.25 | 0.05 | 4000 | 0.1 | 5.0 | 1.52 | 0.06 | 22 | 8 | ✓ |
| BDC4010PM-12SHH** | 12 VDC | 9-14 | 2.4 | 0.2 | 10000 | 0.4 | 12.5 | 8.89 | 0.35 | 39 | 1 | ✓ |
| BDC4010PM-12SH** | 12 VDC | 9-14 | 1.68 | 0.14 | 9000 | 0.3 | 11.0 | 6.86 | 0.27 | 37 | 2 | ✓ |
| BDC4010PM-12HHH** | 12 VDC | 9-14 | 1.32 | 0.11 | 8000 | 0.3 | 9.5 | 5.59 | 0.22 | 35 | 3 | ✓ |
| BDC4010PM-12HH** | 12 VDC | 9-14 | 1.2 | 0.1 | 7000 | 0.2 | 8.5 | 4.57 | 0.18 | 32 | 4 | ✓ |
| BDC4010PM-12H** | 12 VDC | 9-14 | 1.08 | 0.09 | 6500 | 0.2 | 8.0 | 3.81 | 0.15 | 28 | 5 | ✓ |
| BDC4010PM-12M** | 12 VDC | 9-14 | 0.96 | 0.08 | 6000 | 0.2 | 7.5 | 3.05 | 0.12 | 26 | 6 | ✓ |
| BDC4010PM-12L** | 12 VDC | 9-14 | 0.84 | 0.07 | 5000 | 0.2 | 6.5 | 2.03 | 0.08 | 24 | 7 | ✓ |
| BDC4010PM-24EHH** | 24 VDC | 16~27 | 3.36 | 0.14 | 12000 | 0.5 | 17.5 | 12.19 | 0.48 | 45 | EHH | ✓ |
| BDC4010PM-24EH** | 24 VDC | 16~27 | 3.12 | 0.13 | 11000 | 0.5 | 16.2 | 11.43 | 0.45 | 42 | EH | ✓ |
| BDC4010PM-24SHH** | 24 VDC | 16~27 | 2.4 | 0.1 | 10000 | 0.4 | 12.5 | 8.89 | 0.35 | 39 | 1 | ✓ |
| BDC4010PM-24SH** | 24 VDC | 16~27 | 2.16 | 0.09 | 9000 | 0.3 | 11 | 6.86 | 0.27 | 37 | 2 | ✓ |
| BDC4010PM-24HHH** | 24 VDC | 16~27 | 1.92 | 0.08 | 8000 | 0.3 | 9.5 | 5.59 | 0.22 | 35 | 3 | ✓ |
| BDC4010PM-24HH** | 24 VDC | 16~27 | 1.68 | 0.07 | 7000 | 0.2 | 8.5 | 4.57 | 0.18 | 32 | 4 | ✓ |
| BDC4010PM-24H** | 24 VDC | 16~27 | 1.44 | 0.06 | 6500 | 0.2 | 8.0 | 3.81 | 0.15 | 28 | 5 | ✓ |
| BDC4010PM-24M** | 24 VDC | 16~27 | 1.2 | 0.05 | 6000 | 0.2 | 7.5 | 3.05 | 0.12 | 26 | 6 | ✓ |
| BDC4010PM-24L** | 24 VDC | 16~27 | 0.96 | 0.04 | 5000 | 0.2 | 6.5 | 2.03 | 0.08 | 24 | 7 | ✓ |
| BDC4010PM-24LL** | 24 VDC | 16~27 | 0.72 | 0.03 | 4000 | 0.1 | 5.0 | 1.52 | 0.06 | 22 | 8 | ✓ |
** = "WB" for wire lead type Ball bearing Speed RPM tolerance +-20% Berring Industrial reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%
