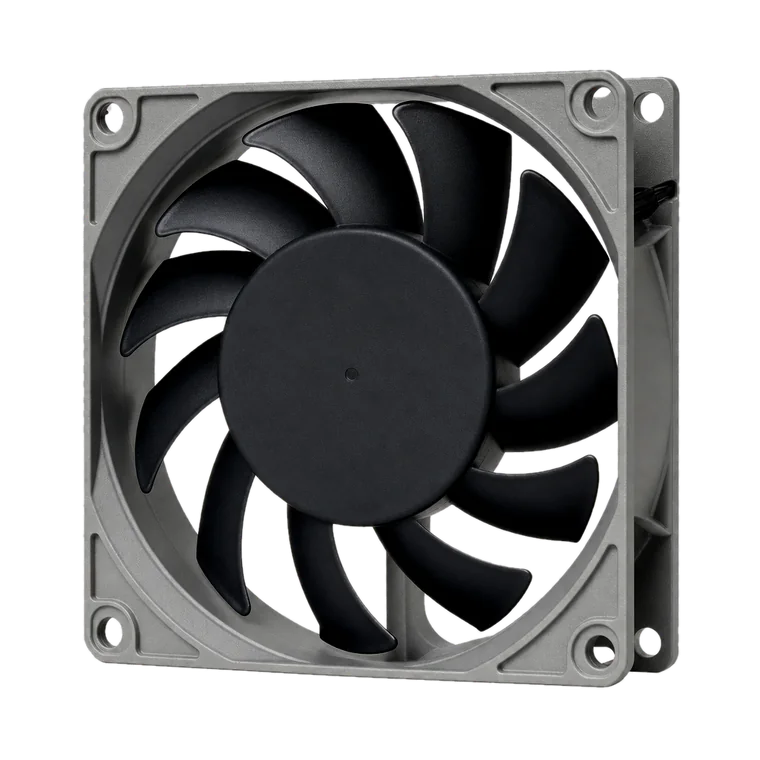

BDC8025A SERIES
80 × 80 × 25 mm DC Axial Fan
Specifications
| Series | BDC8025A |
| Product Type | DC Axial Fan |
| Dimensions | 80 × 80 × 25 mm (3.1 × 3.1 × 1 in) |
| Rated Voltage | 12 / 24 / 48 VDC |
| Voltage Range | 8~13.6 / 8~14 / 12~27.6 / 12~28 / 24~55 / 24~56 VDC |
| Motor Type | Brushless DC motor, option(auto cutoff/auto restart) |
| Burnout Protection | Electronically protected, polarity protected |
| IP Protection | IP55 / IP56 |
| Frame Material | Aluminum die-cast, natural finish |
| Impeller | Glass fiber reinforced plastic, UL94V-0 |
| Bearing | Ball bearing |
| Rotation | CCW when viewed from rotor |
| Connection | Lead wires or Terminals |
| Weight | 96g (0.21Lbs) |
Electrical & Environmental
| Dielectric Strength | 500VAC/min. Max leakage 0.5mA |
| Speed Control | Option : PWM, SC & SV... |
| Signal Output | Option : FG, RD... |
| Operating Temp. | –20°C to +65°C |
| Storage Temp. | –20°C to +75°C (at 65%RH) |
| Life Expectancy | L10 90K hours at 35°C, 40K hours at 65°C |

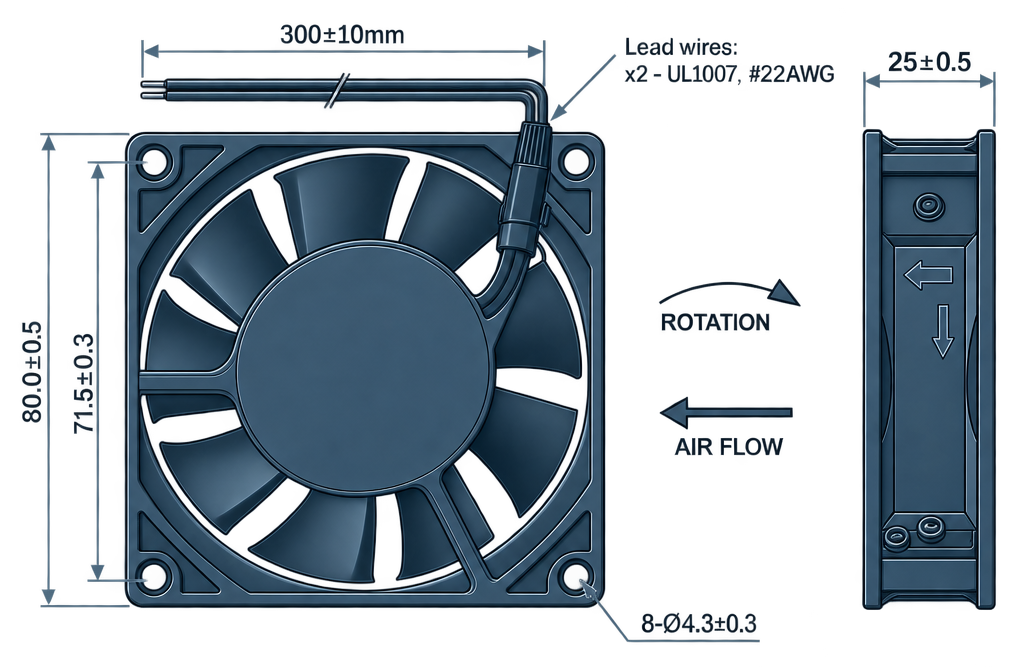

Technical Drawing
Dimensions in mm (inches). Tolerances as marked.

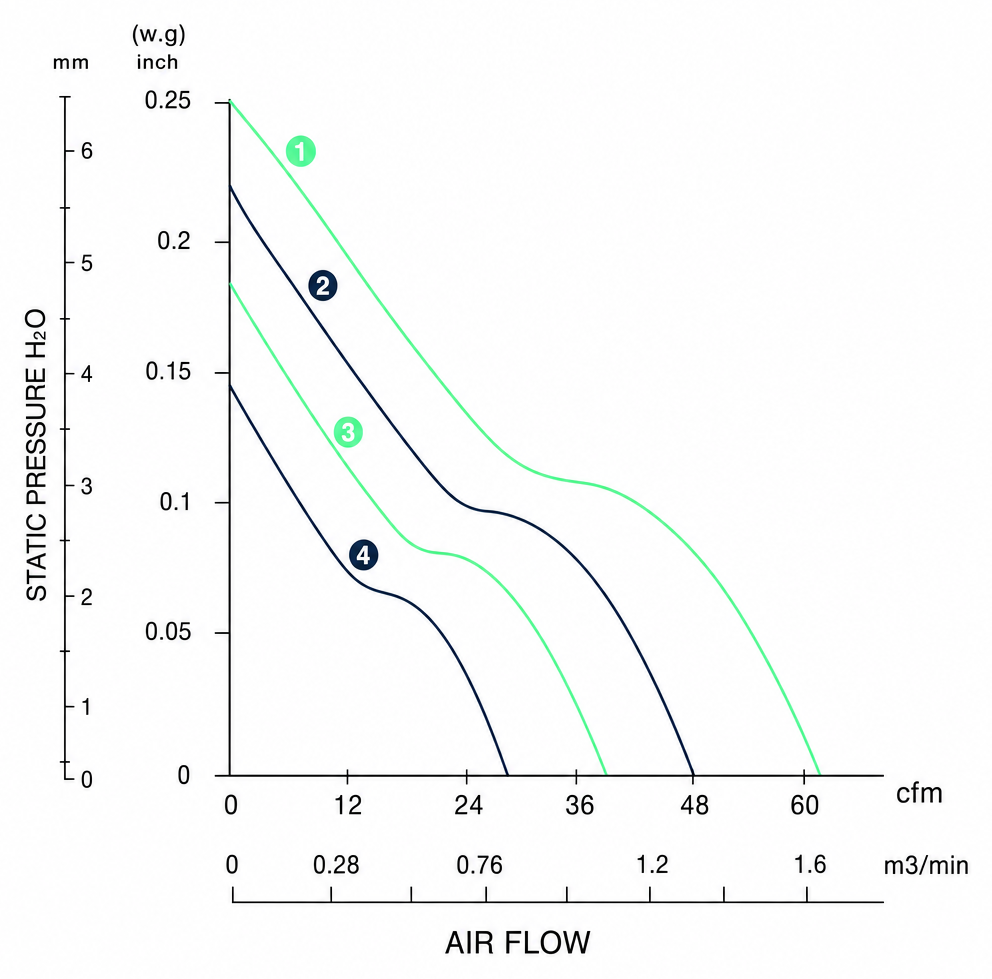

Performance P-Q Curve
Static pressure vs. airflow per speed variant. Manufacturer test data, tolerance ±10%.
Performance Data
| Model Number | Rated Voltage | Voltage Range | Input Power (W) | Current (A) | Speed (RPM) | Air Volume (m³/min) | Air Volume (CFM) | Max SP (mm H₂O) | Max SP (in H₂O) | Noise (dBA) | PQ Curve | UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BDC8025A-12H (HH) | 12 VDC | 8~13.6 | 2.2 (~10.8) | 0.18 (~0.9) | 5300 | 1.9 | 66 | 6.6 | 0.26 | 39 | 1 | ✓ |
| BDC8025A-12H | 12 VDC | 8~13.6 | 2.2 | 0.18 | 4000 | 1.4 | 50 | 5.59 | 0.22 | 35 | 2 | ✓ |
| BDC8025A-12M | 12 VDC | 8~13.6 | 1.8 | 0.15 | 3300 | 1.2 | 41 | 4.57 | 0.18 | 32 | 3 | ✓ |
| BDC8025A-12L | 12 VDC | 8~14 | 1.4 | 0.12 | 2500 | 0.9 | 31 | 3.81 | 0.15 | 28 | 4 | ✓ |
| BDC8025A-24H | 24 VDC | 12~27.6 | 2.9 | 0.12 | 4000 | 1.4 | 50 | 5.59 | 0.22 | 35 | 2 | ✓ |
| BDC8025A-24M | 24 VDC | 12~27.6 | 2.4 | 0.10 | 3300 | 1.2 | 41 | 4.57 | 0.18 | 32 | 3 | ✓ |
| BDC8025A-24L | 24 VDC | 12~28 | 2.0 | 0.08 | 2500 | 0.9 | 31 | 3.81 | 0.15 | 28 | 4 | ✓ |
| BDC8025A-48H | 48 VDC | 24~55 | 2.9 | 0.06 | 4000 | 1.4 | 50 | 5.59 | 0.22 | 35 | 2 | ✓ |
| BDC8025A-48M | 48 VDC | 24~55 | 2.4 | 0.05 | 3300 | 1.2 | 41 | 4.57 | 0.18 | 32 | 3 | ✓ |
| BDC8025A-48L | 48 VDC | 24~56 | 2.0 | 0.04 | 2500 | 0.9 | 31 | 3.81 | 0.15 | 28 | 4 | ✓ |
** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing Berring Industrial reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%
