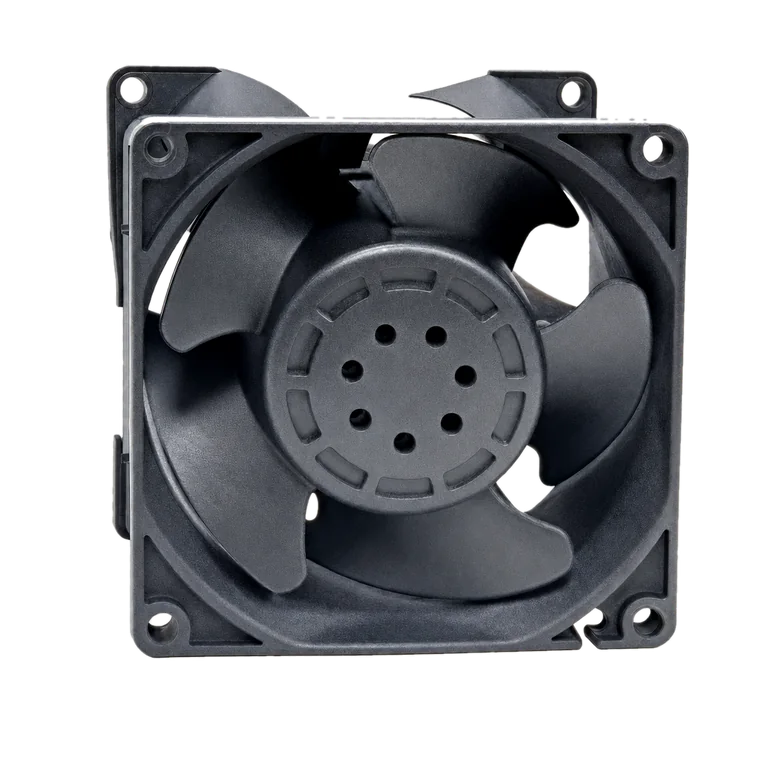

BDC8038PS SERIES

80 × 80 × 38 mm DC Axial Fan

Specifications

Series	BDC8038PS
Product Type	DC Axial Fan
Dimensions	80 × 80 × 38 mm (3.1 × 3.1 × 1.5 in)
Rated Voltage	12 / 24 / 48 VDC
Voltage Range	7~13.2 / 14~26.4 / 28~56 VDC
Motor Type	Brushless DC motor, option(auto cutoff/auto restart)
Burnout Protection	Electronically protected, polarity protected
IP Protection	IP55 / IP68
Frame Material	Glass fiber reinforced thermoplastic, rated UL94V-0
Impeller	Glass fiber reinforced plastic, rated UL94V-0
Bearing	Ball bearing
Rotation	CCW when viewed from rotor
Connection	Lead wires or Terminals
Weight	210g (0.46Lbs)

Electrical & Environmental

Dielectric Strength	500VAC/min. Max leakage 0.5mA
Speed Control	Option : PWM, SC & SV...
Signal Output	Option : FG, RD...
Operating Temp.	–20°C to +65°C
Storage Temp.	–20°C to +75°C (at 65%RH)
Life Expectancy	L10 70K hours at 40°C

Technical Drawing

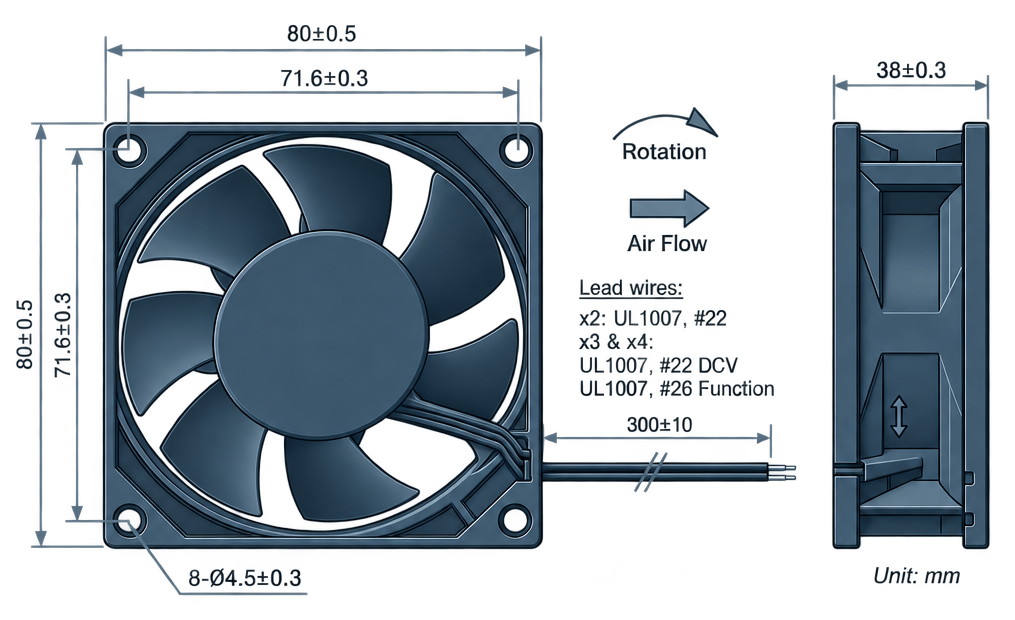

Outline dimension drawing of the BDC8038PS

Dimensions in mm (inches). Tolerances as marked.

Performance P-Q Curve

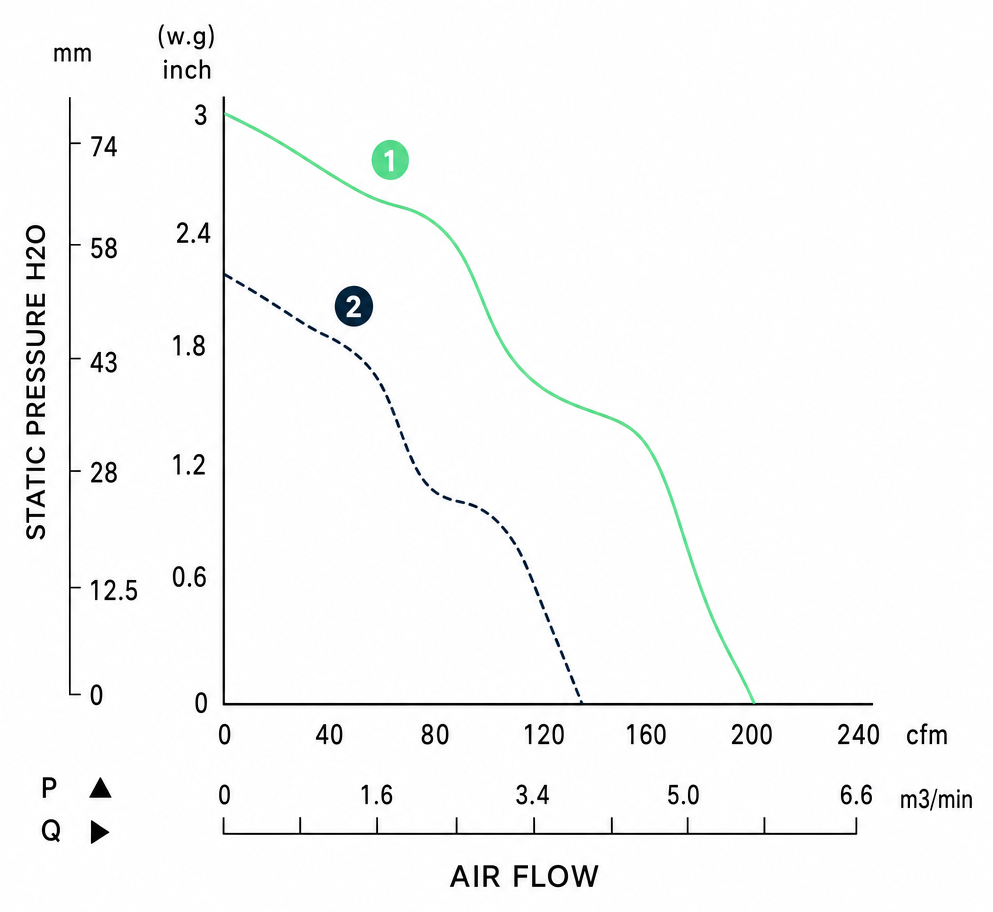

Measured P-Q performance curves for the BDC8038PS

Static pressure vs. airflow per speed variant. Manufacturer test data, tolerance ±10%.

Performance Data

Model Number	Rated Voltage	Voltage Range	Input Power (W)	Current (A)	Speed (RPM)	Air Volume (m³/min)	Air Volume (CFM)	Max SP (mm H₂O)	Max SP (in H₂O)	Noise (dBA)	PQ Curve	UL
BDC8038PS-12SEH**	12 VDC	7~13.2	66	5.5	17100	5	175	157.48	6.2	77	SEH	✓
BDC8038PS-12JHH**	12 VDC	7~13.2	54	4.5	15000	4.4	154	129.54	5.1	67	JHH	✓
BDC8038PS-12JH**	12 VDC	7~13.2	48	4	14000	4	143	127	5.0	62	JH	✓
BDC8038PS-12EHH**	12 VDC	7~13.2	42	3.5	13000	3.8	134	119.38	4.7	58	EHH	✓
BDC8038PS-12EH**	12 VDC	7~13.2	36	3.0	12000	3.5	123	111.76	4.4	54	EH	✓
BDC8038PS-12SHH**	12 VDC	7~13.2	30	2.5	10000	2.9	102	91.44	3.6	45	SHH	✓
BDC8038PS-12SH**	12 VDC	7~13.2	24	2.0	9500	2.8	98	86.36	3.4	42	SH	✓
BDC8038PS-12HHH**	12 VDC	7~13.2	16.8	1.4	8000	2.3	82	71.12	2.8	36	HHH	✓
BDC8038PS-12HH**	12 VDC	7~13.2	12	1.0	7000	2	72	63.5	2.5	32	HH	✓
BDC8038PS-12H**	12 VDC	7~13.2	6	0.5	6500	1.9	66	58.42	2.3	29	H	✓
BDC8038PS-12M**	12 VDC	7~13.2	3.6	0.3	5500	1.7	61	50.8	2.0	25	M	✓
BDC8038PS-12L**	12 VDC	7~13.2	1.8	0.15	4000	1.3	45	30.48	1.2	18	L	✓
BDC8038PS-12LL**	12 VDC	7~13.2	0.96	0.08	2000	0.7	23	17.78	0.7	10	LL	✓
BDC8038PS-24SEH**	24 VDC	14~26.4	72	3.0	18000	5.2	185	165.1	6.5	80	SEH	✓
BDC8038PS-24JHH**	24 VDC	14~26.4	48	2.0	16000	4.7	165	147.32	5.8	72	JHH	✓
BDC8038PS-24JH**	24 VDC	14~26.4	43.2	1.8	15000	4.4	154	129.54	5.1	67	JH	✓
BDC8038PS-24EHH**	24 VDC	14~26.4	36	1.5	14000	4	143	127	5.0	62	EHH	✓
BDC8038PS-24EH**	24 VDC	14~26.4	31.2	1.3	10000	2.9	102	91.44	3.6	45	EH	✓
BDC8038PS-24SHH**	24 VDC	14~26.4	24	1.0	9000	2.6	92	81.28	3.2	40	SHH	✓
BDC8038PS-24SH**	24 VDC	14~26.4	19.2	0.8	8000	2.3	82	71.12	2.8	36	SH	✓
BDC8038PS-24HHH**	24 VDC	14~26.4	14.4	0.6	7500	2.2	77	68.58	2.7	33	HHH	✓
BDC8038PS-24HH**	24 VDC	14~26.4	10.8	0.45	6000	1.8	62	55.88	2.2	27	HH	✓
BDC8038PS-24H**	24 VDC	14~26.4	4.8	0.2	5000	1.5	52	45.72	1.8	23	H	✓
BDC8038PS-24M**	24 VDC	14~26.4	2.4	0.1	3700	1.1	38	33.02	1.3	17	M	✓
BDC8038PS-24L**	24 VDC	14~26.4	1.92	0.08	3500	1	36	32	1.26	16	L	✓
BDC8038PS-24LL**	24 VDC	14~26.4	1.44	0.06	3200	1	34	30.48	1.2	15	LL	✓
BDC8038PS-48SEH**	48 VDC	28~56	81.6	1.7	18000	5.2	185	165.1	6.5	80	SEH	✓
BDC8038PS-48JHH**	48 VDC	28~56	62.4	1.3	16000	4.7	165	147.32	5.8	72	JHH	✓
BDC8038PS-48JH**	48 VDC	28~56	48	1.0	13000	3.8	134	119.38	4.7	58	JH	✓
BDC8038PS-48EHH**	48 VDC	28~56	43.2	0.9	11000	3.2	113	101.6	4.0	50	EHH	✓
BDC8038PS-48EH**	48 VDC	28~56	27.84	0.58	9500	2.8	98	86.36	3.4	42	EH	✓
BDC8038PS-48SHH**	48 VDC	28~56	24.48	0.51	9000	2.6	92	81.28	3.2	40	SHH	✓
BDC8038PS-48SH**	48 VDC	28~56	21.6	0.45	8000	2.3	82	71.12	2.8	36	SH	✓
BDC8038PS-48HHH**	48 VDC	28~56	16.8	0.35	7500	2.2	77	68.58	2.7	33	HHH	✓
BDC8038PS-48HH**	48 VDC	28~56	12	0.25	6500	1.9	66	58.42	2.3	29	HH	✓
BDC8038PS-48H**	48 VDC	28~56	9.6	0.2	6000	1.8	62	55.88	2.2	27	H	✓
BDC8038PS-48M**	48 VDC	28~56	7.2	0.15	5500	1.7	61	50.8	2.0	25	M	✓
BDC8038PS-48L**	48 VDC	28~56	4.8	0.1	5000	1.5	52	45.72	1.8	23	L	✓
BDC8038PS-48LL**	48 VDC	28~56	3.36	0.07	4600	1.4	48	43.18	1.7	21	LL	✓

** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing Berring Industrial reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%
