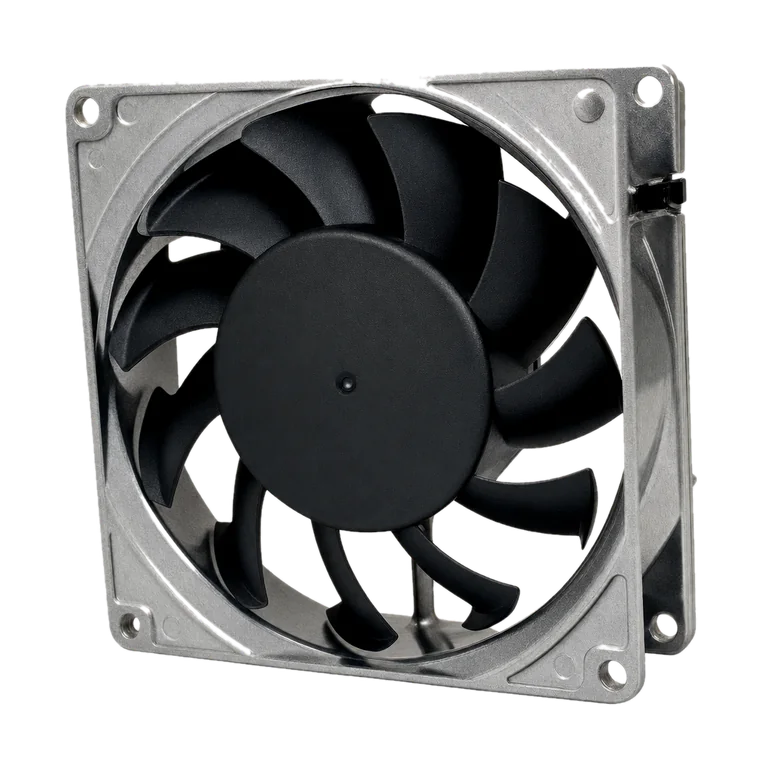

BDC9225A SERIES
92 × 92 × 25 mm DC Axial Fan
Specifications
| Series | BDC9225A |
| Product Type | DC Axial Fan |
| Dimensions | 92 × 92 × 25 mm (3.6 × 3.6 × 1 in) |
| Rated Voltage | 12 / 24 / 48 VDC |
| Voltage Range | 7~13.6 / 12~27 / 28~55 / 32~56 VDC |
| Motor Type | Brushless DC motor, option(auto cutoff/auto restart) |
| Burnout Protection | Electronically protected, polarity protected |
| IP Protection | IP55 / IP56 |
| Frame Material | Aluminum die-cast, natural finish |
| Impeller | Grass fiber reinforced plastic, UL94V-0 |
| Bearing | Ball bearing |
| Rotation | CCW when viewed from rotor |
| Connection | Lead wires or Terminals |
| Weight | 100g (0.22Lbs) |
Electrical & Environmental
| Dielectric Strength | 500VAC/min. Max leakage 0.5mA |
| Speed Control | Option : PWM, SC & SV... |
| Signal Output | Option : FG, RD... |
| Operating Temp. | –20°C to +65°C |
| Storage Temp. | –20°C to +75°C (at 65%RH) |
| Life Expectancy | L10 90K hours at 35°C, 40K hours at 65°C |

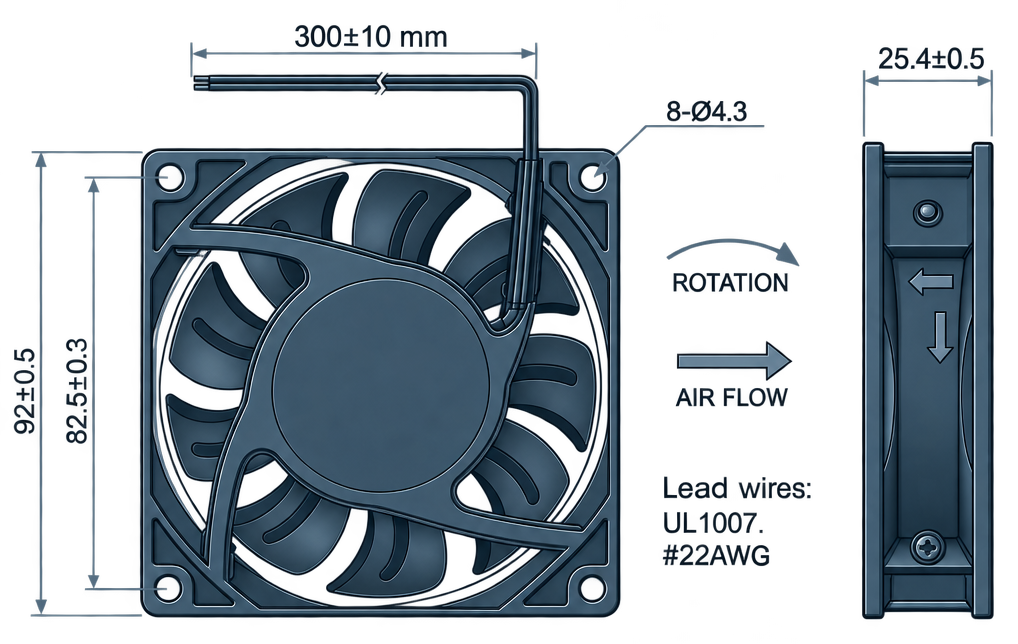

Technical Drawing
Dimensions in mm (inches). Tolerances as marked.

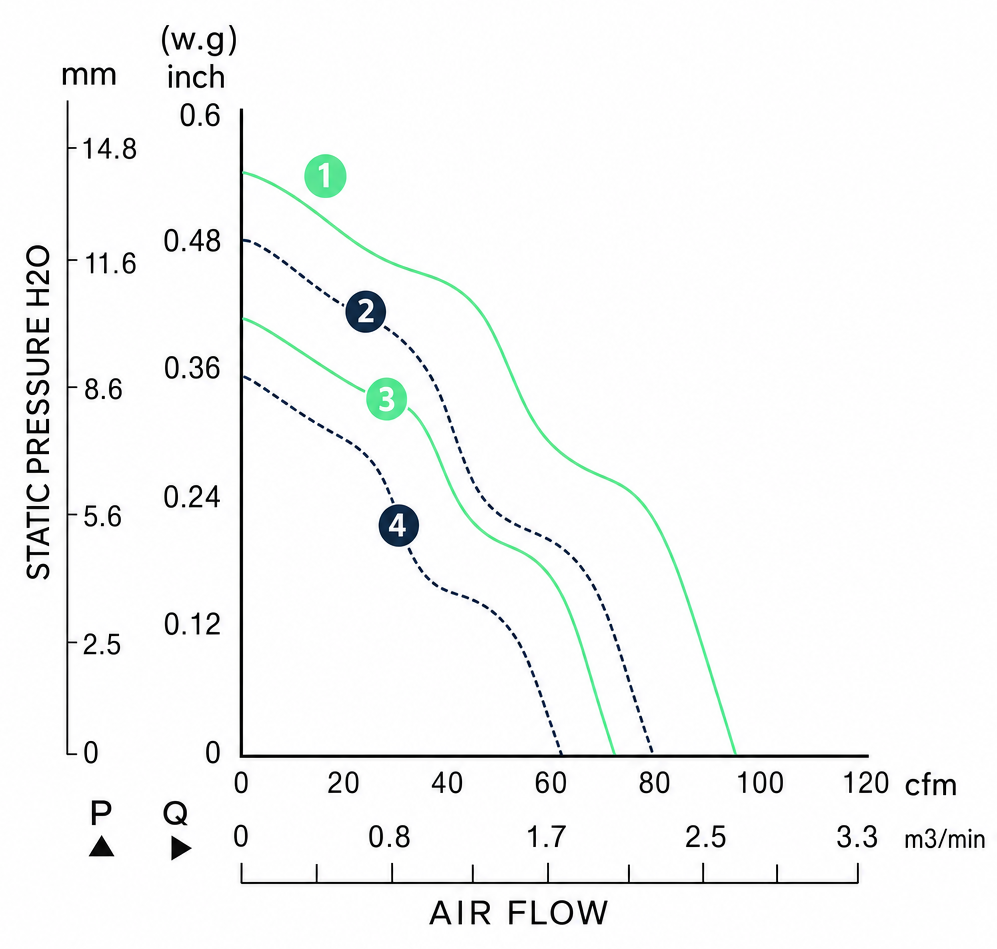

Performance P-Q Curve
Static pressure vs. airflow per speed variant. Manufacturer test data, tolerance ±10%.
Performance Data
| Model Number | Rated Voltage | Voltage Range | Input Power (W) | Current (A) | Speed (RPM) | Air Volume (m³/min) | Air Volume (CFM) | Max SP (mm H₂O) | Max SP (in H₂O) | Noise (dBA) | PQ Curve | UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BDC9225A-12H (HH) | 12 VDC | 7~13.6 | 3.0 (~10) | 0.29 (~0.85) | 5300 | 2.6 | 92 | 13.46 | 0.53 | 53 | 1 | ✓ |
| BDC9225A-12H | 12 VDC | 7~13.6 | 3.0 (~10.8) | 0.29 (~0.9) | 4500 | 2.2 | 78 | 12.19 | 0.48 | 48 | 2 | ✓ |
| BDC9225A-12M | 12 VDC | 7~13.6 | 2.1 (~6.0) | 0.20 (~0.5) | 4000 | 2 | 69 | 10.67 | 0.42 | 45 | 3 | ✓ |
| BDC9225A-12L | 12 VDC | 7~13.6 | 1.4 (~3.6) | 0.12 (~0.3) | 3500 | 1.7 | 61 | 9.14 | 0.36 | 42 | 4 | ✓ |
| BDC9225A-24H (HH) | 24 VDC | 12~27 | 3.5 (~10) | 0.18 (~0.42) | 5300 | 2.6 | 92 | 13.46 | 0.53 | 53 | 1 | ✓ |
| BDC9225A-24H | 24 VDC | 12~27 | 3.5 (~9.0) | 0.18 (~0.38) | 4500 | 2.2 | 78 | 12.19 | 0.48 | 48 | 2 | ✓ |
| BDC9225A-24M | 24 VDC | 12~27 | 2.8 (~6.0) | 0.12 (~0.25) | 4000 | 2 | 69 | 10.67 | 0.42 | 45 | 3 | ✓ |
| BDC9225A-24L | 24 VDC | 12~27 | 2.4 (~3.6) | 0.10 (~0.15) | 3500 | 1.7 | 61 | 9.14 | 0.36 | 42 | 4 | ✓ |
| BDC9225A-48H (HH) | 48 VDC | 28~55 | 4.3 (~10) | 0.09 (~0.21) | 5300 | 2.6 | 92 | 13.46 | 0.53 | 53 | 1 | ✓ |
| BDC9225A-48H | 48 VDC | 28~55 | 4.3 (~9.0) | 0.09 (~0.19) | 4500 | 2.2 | 78 | 12.19 | 0.48 | 48 | 2 | ✓ |
| BDC9225A-48M | 48 VDC | 32~56 | 2.4 (~6.0) | 0.05 (~0.13) | 4000 | 2 | 69 | 10.67 | 0.42 | 45 | 3 | ✓ |
| BDC9225A-48L | 48 VDC | 32~56 | 1.9 (~3.6) | 0.04 (~0.08) | 3500 | 1.7 | 61 | 9.14 | 0.36 | 42 | 4 | ✓ |
** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing Berring Industrial reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%
