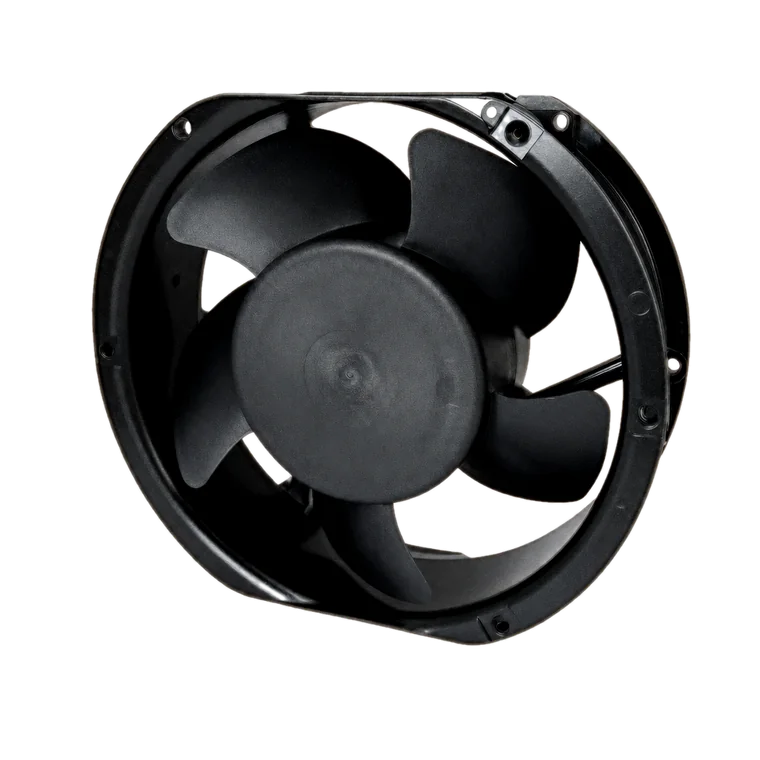

BEC15051AM SERIES
172 × 152 × 51.6 mm EC Axial Fan
Specifications
| Series | BEC15051AM |
| Product Type | EC Axial Fan |
| Dimensions | 172 × 152 × 51.6 mm (6.8 × 6 × 2 in) |
| Rated Voltage | 110/220 VAC |
| Voltage Range | 90~265 VAC |
| Motor Type | AC-DC Energy Saving EC Motor |
| Burnout Protection | Electronically protected |
| IP Protection | IP68 |
| Frame Material | Aluminum die-cast, black finish |
| Impeller | Thermoplastic PBT UL94V-0 |
| Bearing | Ball bearing |
| Rotation | CCW when viewed from rotor |
| Connection | Lead wires or Terminals |
| Weight | 710g (1.57Lbs) |
Electrical & Environmental
| Dielectric Strength | 1,400VAC/min |
| Speed Control | Option : PWM, SC & SV... |
| Signal Output | Option : FG, RD... |
| Operating Temp. | –20°C to +65°C |
| Storage Temp. | –20°C to +75°C (at 65%RH) |
| Life Expectancy | L10 50K hours at 40°C |
Technical Drawing
Dimensions in mm (inches). Tolerances as marked.

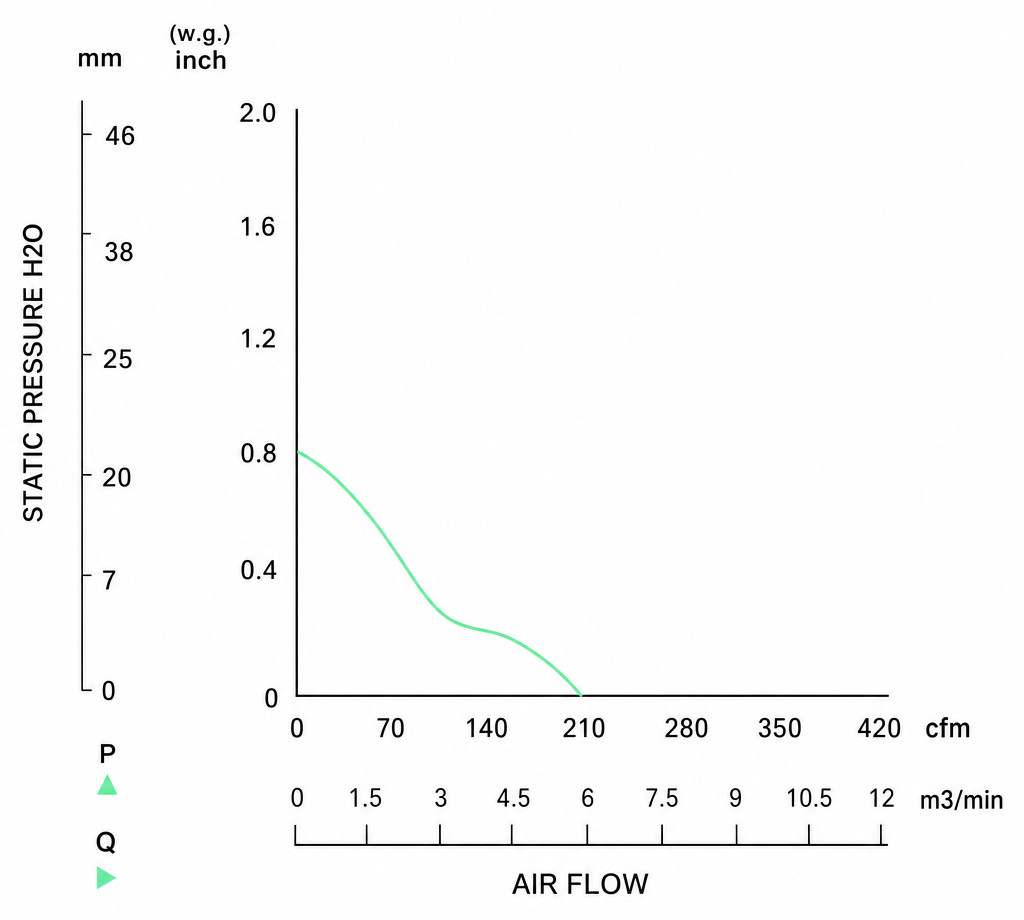

Performance P-Q Curve
Static pressure vs. airflow per speed variant. Manufacturer test data, tolerance ±10%.
Performance Data
| Model Number | Rated Voltage | Voltage Range | Input Power (W) | Current (A) | Speed (RPM) | Air Volume (m³/min) | Air Volume (CFM) | Max SP (mm H₂O) | Max SP (in H₂O) | Noise (dBA) | PQ Curve | UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BEC15051AM-FR-H** | 110/220 VAC | 90~265 | 18/16 | - | 3000 | 6.2 | 220 | 20.32 | 0.8 | 55 | – | ✓ |
** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing Berring Industrial reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%
