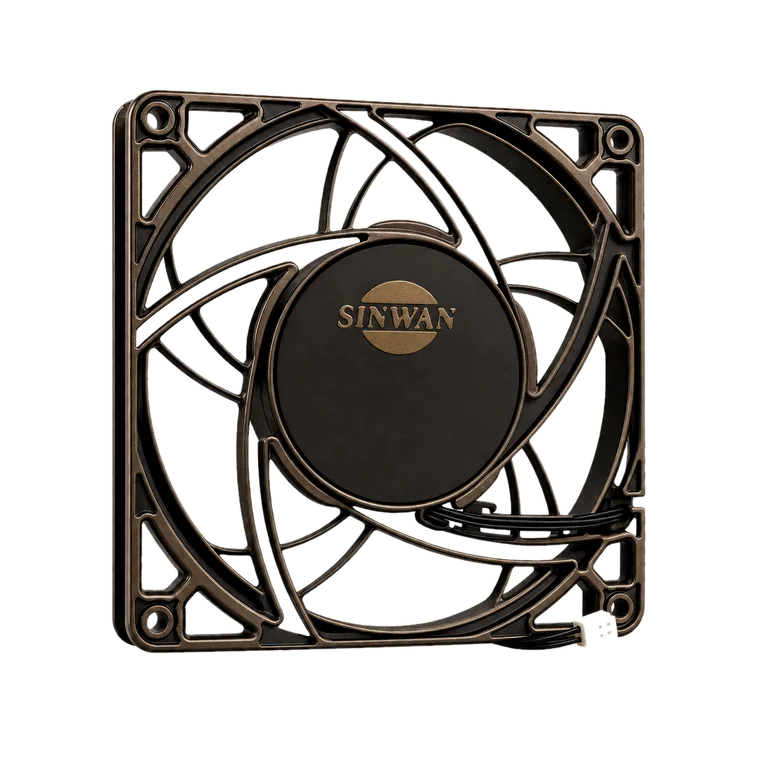

BEC9238PE SERIES
92 × 92 × 38 mm EC Axial Fan
Specifications
| Series | BEC9238PE |
| Product Type | EC Axial Fan |
| Dimensions | 92 × 92 × 38 mm (3.6 × 3.6 × 1.5 in) |
| Rated Voltage | 110/220 VAC |
| Voltage Range | 90~265 VAC |
| Motor Type | AC-DC Energy Saving EC Motor |
| Burnout Protection | Electronically protected |
| IP Protection | IP67 |
| Frame Material | Glass fiber reinforced thermoplastic, rated UL94V-0 |
| Impeller | Glass fiber reinforced plastic, rated UL94V-0 |
| Bearing | Ball bearing |
| Rotation | CCW when viewed from rotor |
| Connection | Lead wires or Terminals |
| Weight | 190g (0.42Lbs) |
Electrical & Environmental
| Dielectric Strength | 1500VAC/min |
| Speed Control | Option : PWM, SC & SV... |
| Signal Output | Option : FG, RD... |
| Operating Temp. | –20°C to +65°C |
| Storage Temp. | –20°C to +75°C (at 65%RH) |
| Life Expectancy | L10 70K hours at 40°C |
Technical Drawing
Dimensions in mm (inches). Tolerances as marked.

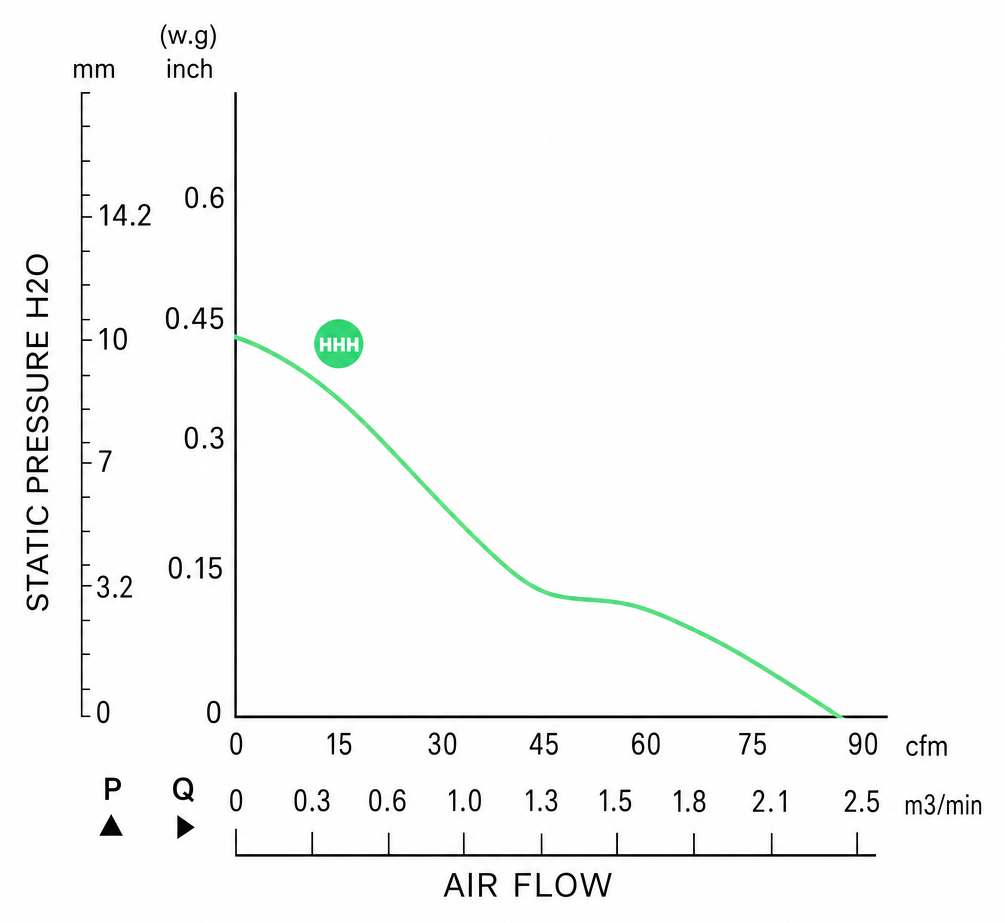

Performance P-Q Curve
Static pressure vs. airflow per speed variant. Manufacturer test data, tolerance ±10%.
Performance Data
| Model Number | Rated Voltage | Voltage Range | Input Power (W) | Current (A) | Speed (RPM) | Air Volume (m³/min) | Air Volume (CFM) | Max SP (mm H₂O) | Max SP (in H₂O) | Noise (dBA) | PQ Curve | UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BEC9238PE-FR-HHH** | 110/220 VAC | 90~265 | 11/9 | - | 4000 | 2.3 | 82 | 10.92 | 0.43 | 50 | HHH | ✓ |
| BEC9238PE-FR-HH** | 110/220 VAC | 90~265 | 7/5 | - | 3000 | 1.6 | 58 | 6.6 | 0.26 | 43 | HH | ✓ |
** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing Berring Industrial reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%
