BPL-115A

NEMA 1-15P Straight-Blade Plug · 15A / 125V

BPL-115A nema plug

Specifications

ModelBPL-115A
Product TypeNEMA Plug
RegionNorth America
ConfigurationNEMA 1-15P
Rating15A / 125V
Supplied AsMolded cord sets, built to order

Approvals & Standards

ApprovalsUL 817 / cUL / CSA C22.2
Plug StandardUL 817
Canadian StandardCanadian National Standard C22.2
Cord-Set StandardUL 817 / CSA C22.2 No. 21
Custom OptionsLength, jacket color, opposite-end termination

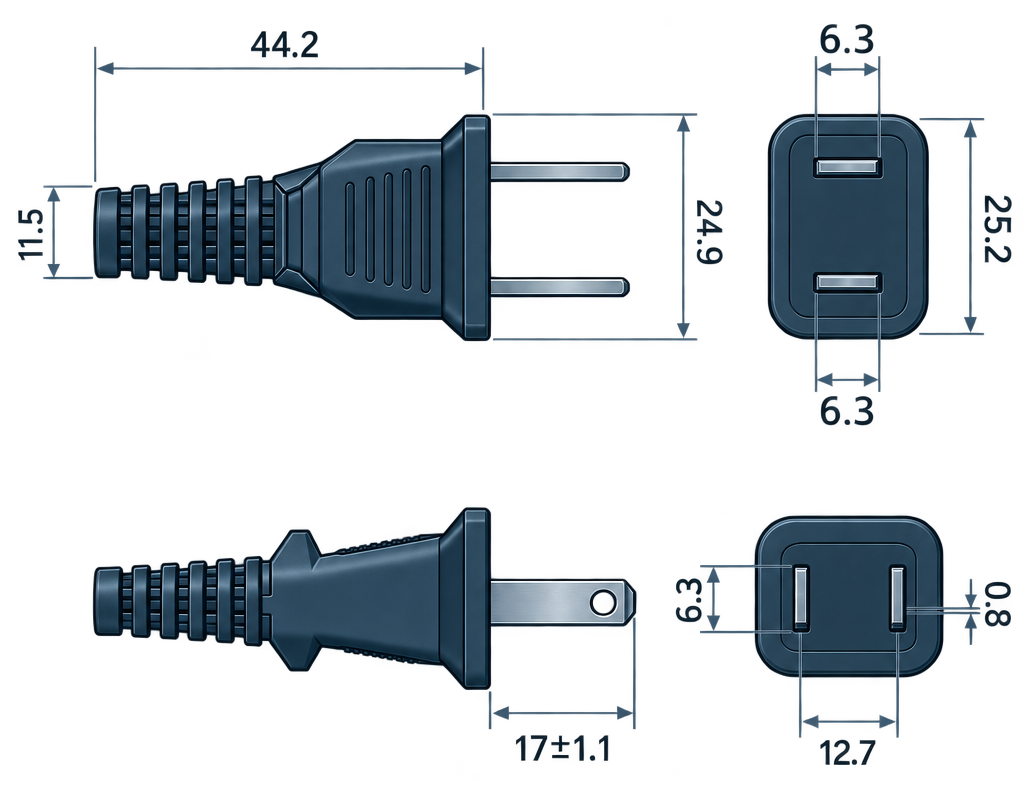

Outline Drawing

Outline dimension drawing of the BPL-115A

Dimensions in mm. Tolerances as marked.

Approved Cord Constructions

Cord TypeAWG / Cond.ULcUL
SPT-118AWG / 2✓✓
SPT-1W18AWG / 2✓✓
NISPT-118AWG / 2✓✓
SPT-218AWG / 2✓✓
SPT-2W18AWG / 2✓✓
NISPT-218AWG / 2✓✓
HPN18AWG / 2✓✓
2122918AWG / 2✓✓
2123018AWG / 2✓✓
SPT-216AWG / 2✓✓
SPT-2W16AWG / 2✓✓
NISPT-216AWG / 2✓✓
HPN16AWG / 2✓✓

Every construction listed is an approved cord set for this plug. Lengths and colors to order.
