BPL-115B-C

NEMA 1-15P Straight-Blade Plug · 15A / 125V

Specifications

Model	BPL-115B-C
Product Type	NEMA Plug
Region	North America
Configuration	NEMA 1-15P
Rating	15A / 125V
Supplied As	Molded cord sets, built to order

Approvals	UL 817 / cUL / CSA C22.2
Plug Standard	UL 817
Canadian Standard	Canadian National Standard C22.2
Cord-Set Standard	UL 817 / CSA C22.2 No. 21
Custom Options	Length, jacket color, opposite-end termination

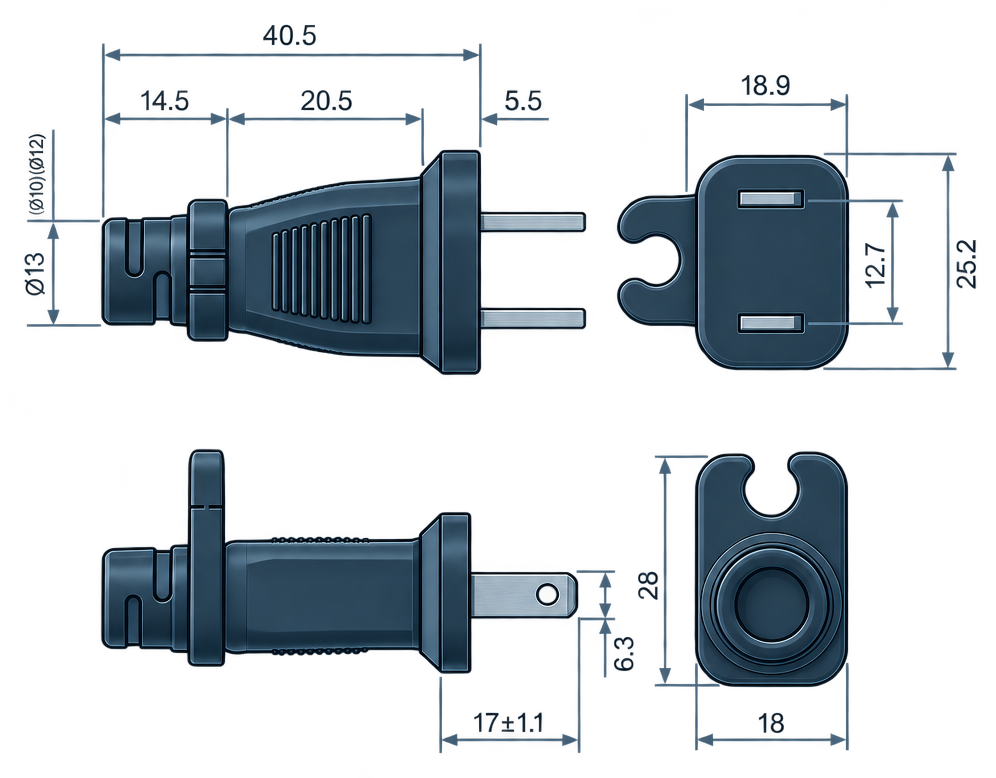

Dimensions in mm. Tolerances as marked.

approved cord constructions

Cord types	HSJ, HSJO, HSJOW, HSJW, S, SJ, SJE, SJO, SJOW, SJT, SJTO, SJTOW, SJTW, SJW, ST, STO, STOW, STW, SVT
Conductor sizes	18AWG / 17AWG / 16AWG / 14AWG
UL listed	51 of 51
cUL listed	51 of 51

Full list of approved constructions on the following page.

Cord Type	AWG / Cond.	UL	cUL
S	18AWG / 2	✓	✓
SJ	18AWG / 2	✓	✓
SJT	18AWG / 2	✓	✓
SJW	18AWG / 2	✓	✓
SJTW	18AWG / 2	✓	✓
SJTO	18AWG / 2	✓	✓
SJTOW	18AWG / 2	✓	✓
SJE	18AWG / 2	✓	✓
SJO	18AWG / 2	✓	✓
SJOW	18AWG / 2	✓	✓
HSJ	18AWG / 2	✓	✓
HSJO	18AWG / 2	✓	✓
HSJW	18AWG / 2	✓	✓
HSJOW	18AWG / 2	✓	✓
ST	18AWG / 2	✓	✓
STW	18AWG / 2	✓	✓
STO	18AWG / 2	✓	✓
STOW	18AWG / 2	✓	✓
SVT	18AWG / 2	✓	✓
SVT	17AWG / 2	✓	✓
S	16AWG / 2	✓	✓
SJT	16AWG / 2	✓	✓
SJTO	16AWG / 2	✓	✓
SJTW	16AWG / 2	✓	✓
SJ	16AWG / 2	✓	✓
SJW	16AWG / 2	✓	✓

Cord Type	AWG / Cond.	UL	cUL
SJO	16AWG / 2	✓	✓
SJOW	16AWG / 2	✓	✓
SJE	16AWG / 2	✓	✓
HSJ	16AWG / 2	✓	✓
HSJO	16AWG / 2	✓	✓
HSJW	16AWG / 2	✓	✓
HSJOW	16AWG / 2	✓	✓
SJTOW	16AWG / 2	✓	✓
ST	16AWG / 2	✓	✓
STW	16AWG / 2	✓	✓
STO	16AWG / 2	✓	✓
STOW	16AWG / 2	✓	✓
SVT	16AWG / 2	✓	✓
SJT	14AWG / 2	✓	✓
SJW	14AWG / 2	✓	✓
SJOW	14AWG / 2	✓	✓
SJTW	14AWG / 2	✓	✓
SJTO	14AWG / 2	✓	✓
SJTOW	14AWG / 2	✓	✓
ST	14AWG / 2	✓	✓
STW	14AWG / 2	✓	✓
STO	14AWG / 2	✓	✓
STOW	14AWG / 2	✓	✓
SJ	14AWG / 2	✓	✓
SJO	14AWG / 2	✓	✓

Every construction listed is an approved cord set for this plug. Lengths and colors to order.
