BPL-115C-S
NEMA 1-15P Straight-Blade Plug · 15A / 125V
Specifications
| Model | BPL-115C-S |
| Product Type | NEMA Plug |
| Region | North America |
| Configuration | NEMA 1-15P |
| Rating | 15A / 125V |
| Supplied As | Molded cord sets, built to order |
Approvals & Standards
| Approvals | UL 817 / cUL / CSA C22.2 |
| Plug Standard | UL 817 |
| Canadian Standard | Canadian National Standard C22.2 |
| Cord-Set Standard | UL 817 / CSA C22.2 No. 21 |
| Custom Options | Length, jacket color, opposite-end termination |

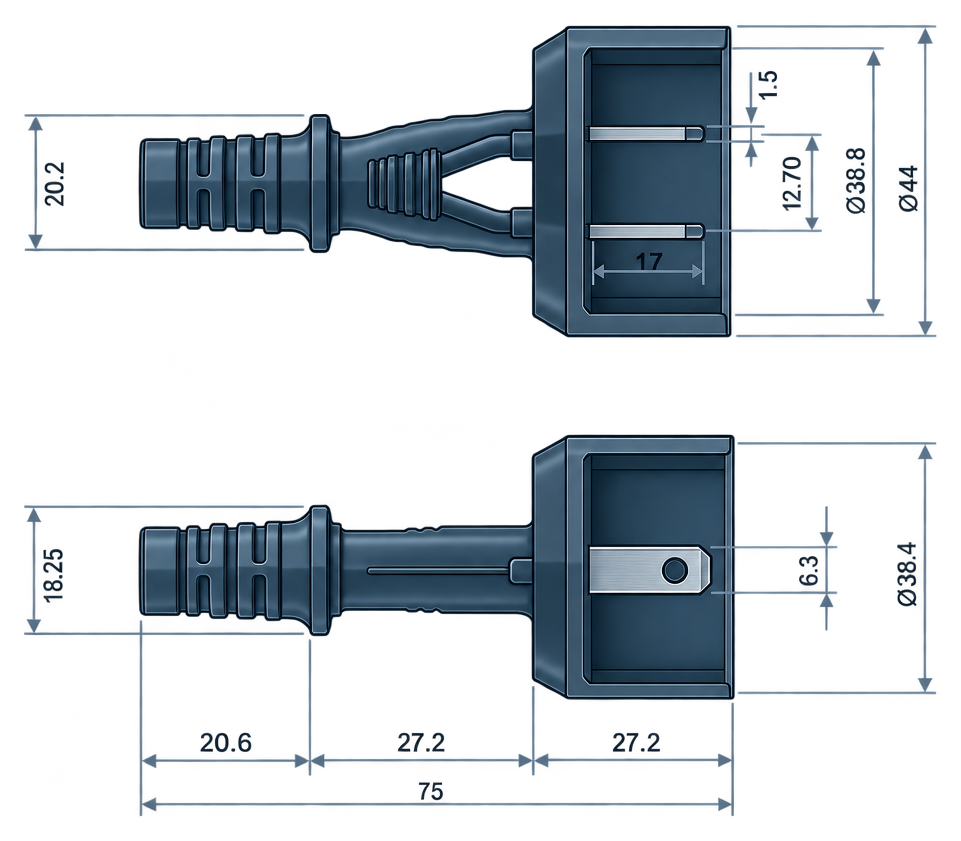

Outline Drawing
Dimensions in mm. Tolerances as marked.
Approved Cord Constructions
24
approved cord constructions
| Cord types | SJ, SJO, SJOW, SJT, SJTO, SJTOW, SJTW, SJW |
| Conductor sizes | 18AWG / 16AWG / 14AWG |
| UL listed | 24 of 24 |
| cUL listed | 24 of 24 |
Full list of approved constructions on the following page.
Approved Cord Constructions
| Cord Type | AWG / Cond. | UL | cUL |
|---|---|---|---|
| SJ | 18AWG / 2 | ✓ | ✓ |
| SJT | 18AWG / 2 | ✓ | ✓ |
| SJW | 18AWG / 2 | ✓ | ✓ |
| SJTW | 18AWG / 2 | ✓ | ✓ |
| SJTO | 18AWG / 2 | ✓ | ✓ |
| SJTOW | 18AWG / 2 | ✓ | ✓ |
| SJO | 18AWG / 2 | ✓ | ✓ |
| SJOW | 18AWG / 2 | ✓ | ✓ |
| SJT | 16AWG / 2 | ✓ | ✓ |
| SJTO | 16AWG / 2 | ✓ | ✓ |
| SJTW | 16AWG / 2 | ✓ | ✓ |
| SJ | 16AWG / 2 | ✓ | ✓ |
| Cord Type | AWG / Cond. | UL | cUL |
|---|---|---|---|
| SJW | 16AWG / 2 | ✓ | ✓ |
| SJO | 16AWG / 2 | ✓ | ✓ |
| SJOW | 16AWG / 2 | ✓ | ✓ |
| SJTOW | 16AWG / 2 | ✓ | ✓ |
| SJT | 14AWG / 2 | ✓ | ✓ |
| SJW | 14AWG / 2 | ✓ | ✓ |
| SJOW | 14AWG / 2 | ✓ | ✓ |
| SJTW | 14AWG / 2 | ✓ | ✓ |
| SJTO | 14AWG / 2 | ✓ | ✓ |
| SJTOW | 14AWG / 2 | ✓ | ✓ |
| SJ | 14AWG / 2 | ✓ | ✓ |
| SJO | 14AWG / 2 | ✓ | ✓ |
Every construction listed is an approved cord set for this plug. Lengths and colors to order.
