BPL-1430A
NEMA 14-30P Straight-Blade Plug · 30A / 250V
Specifications
| Model | BPL-1430A |
| Product Type | NEMA Plug |
| Region | North America |
| Configuration | NEMA 14-30P |
| Rating | 30A / 250V |
| Supplied As | Molded cord sets, built to order |
Approvals & Standards
| Approvals | UL 817 / cUL / CSA C22.2 |
| Plug Standard | UL 817 |
| Cord-Set Standard | UL 817 / CSA C22.2 No. 21 |
| Custom Options | Length, jacket color, opposite-end termination |

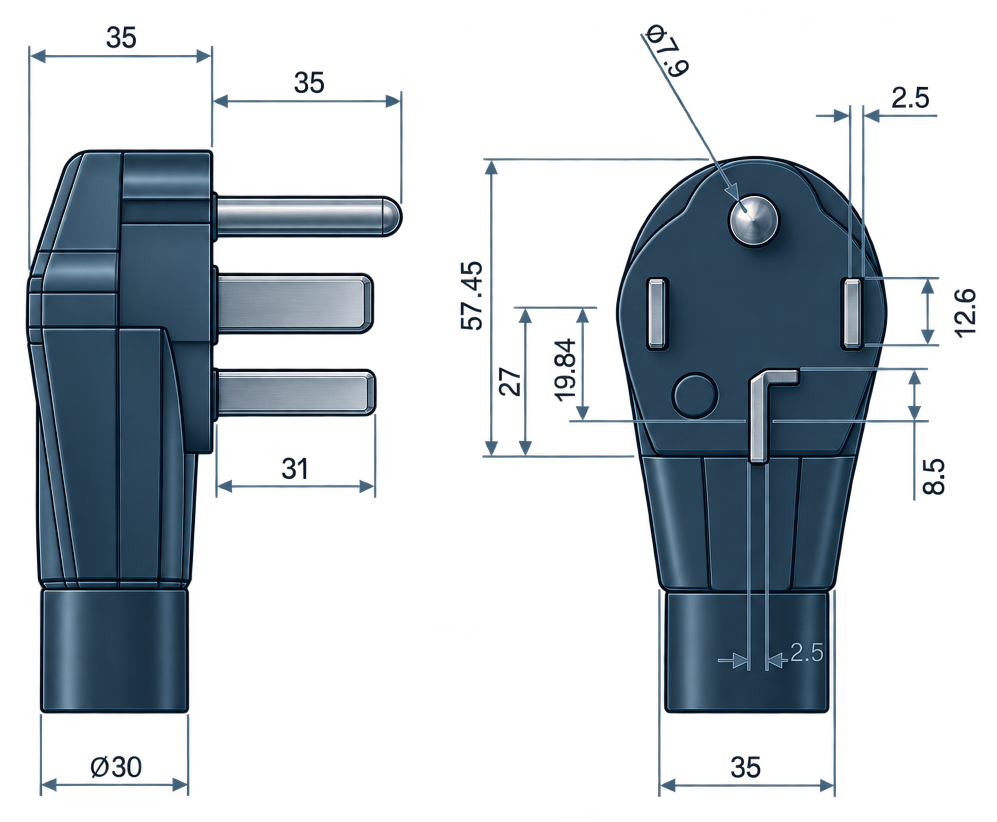

Outline Drawing
Dimensions in mm. Tolerances as marked.
Approved Cord Constructions
| Cord Type | AWG / Cond. | UL | cUL |
|---|---|---|---|
| SRDT(Round) | 10AWG / 4 | ✓ | ✓ |
Every construction listed is an approved cord set for this plug. Lengths and colors to order.
