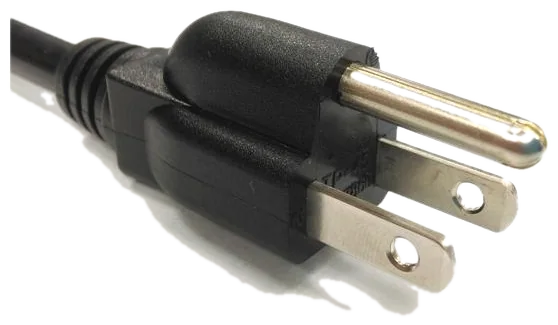

BPL-515J
NEMA 5-15P Straight-Blade Plug · 10A / 125V
Specifications
| Model | BPL-515J |
| Product Type | NEMA Plug |
| Region | North America |
| Configuration | NEMA 5-15P |
| Rating | 10A / 125V |
| Supplied As | Molded cord sets, built to order |
Approvals & Standards
| Approvals | UL 817 / cUL / CSA C22.2 |
| Plug Standard | UL 817 |
| Canadian Standard | Canadian National Standard C22.2 NO21.95 |
| Cord-Set Standard | UL 817 / CSA C22.2 No. 21 |
| Custom Options | Length, jacket color, opposite-end termination |

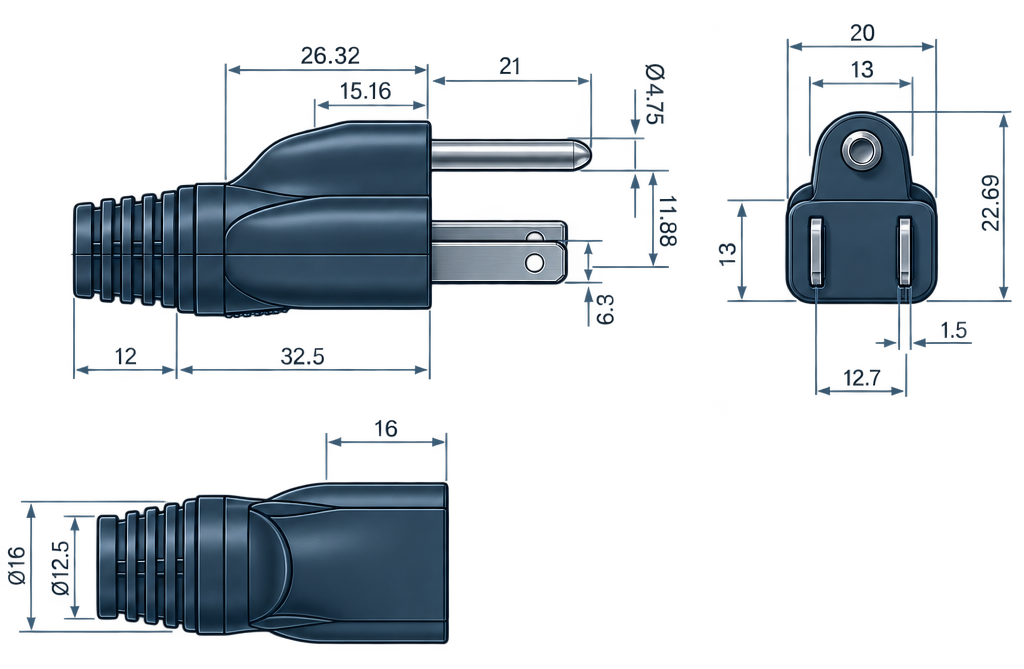

Outline Drawing
Dimensions in mm. Tolerances as marked.
Approved Cord Constructions
| Cord Type | AWG / Cond. | UL | cUL |
|---|---|---|---|
| SPT-3 | 18AWG / 3C | ✓ | ✓ |
| SJT | 18AWG / 3C | ✓ | ✓ |
| SJTO | 18AWG / 3C | ✓ | ✓ |
| SJTW | 18AWG / 3C | ✓ | ✓ |
| SJTOW | 18AWG / 3C | ✓ | ✓ |
| SJTOOW | 18AWG / 3C | ✓ | ✓ |
Every construction listed is an approved cord set for this plug. Lengths and colors to order.
