BPL-630A
NEMA 6-30P Straight-Blade Plug · 30A / 250V
Specifications
| Model | BPL-630A |
| Product Type | NEMA Plug |
| Region | North America |
| Configuration | NEMA 6-30P |
| Rating | 30A / 250V |
| Supplied As | Molded cord sets, built to order |
Approvals & Standards
| Approvals | UL 817 / cUL / CSA C22.2 |
| Cord-Set Standard | UL 817 / CSA C22.2 No. 21 |
| Custom Options | Length, jacket color, opposite-end termination |

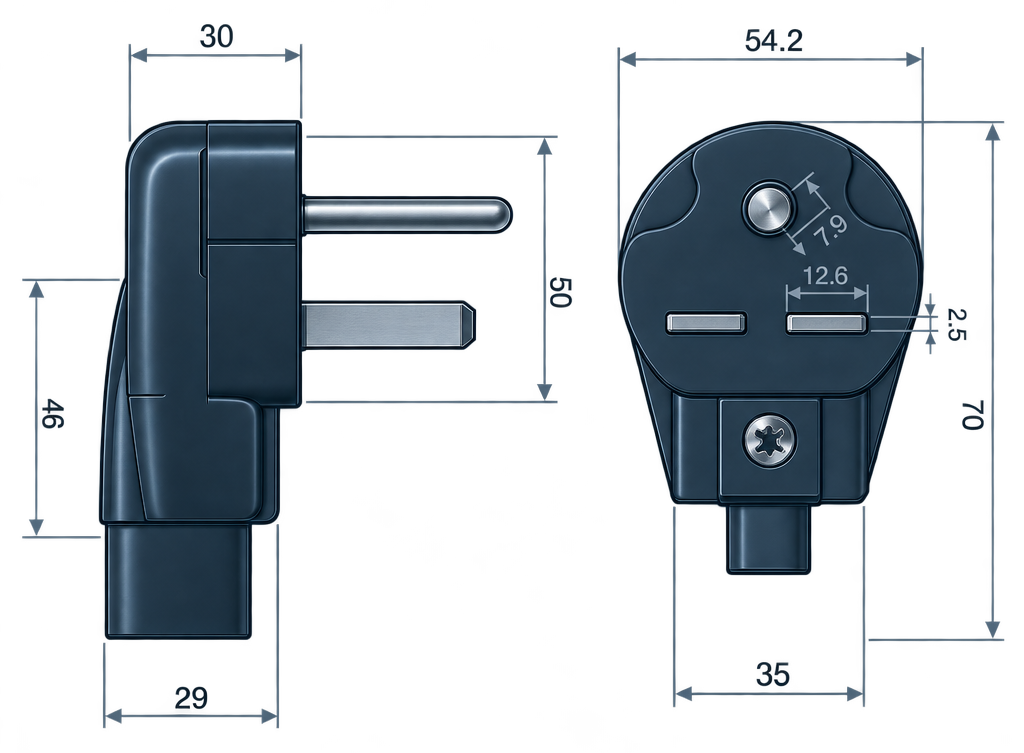

Outline Drawing
Dimensions in mm. Tolerances as marked.
Approved Cord Constructions
50
approved cord constructions
| Cord types | SJ, SJO, SJOOW, SJOW, SJT, SJTO, SJTOOW, SJTOW, SJTW, SJW, ST, ST00W, STO, STOOW, STOW, STW |
| Conductor sizes | 14AWG / 12AWG / 10AWG / 8AWG |
| UL listed | 50 of 50 |
| cUL listed | 50 of 50 |
Full list of approved constructions on the following page.
Approved Cord Constructions
| Cord Type | AWG / Cond. | UL | cUL |
|---|---|---|---|
| SJT | 14AWG / 3 | ✓ | ✓ |
| SJTW | 14AWG / 3 | ✓ | ✓ |
| SJTO | 14AWG / 3 | ✓ | ✓ |
| SJTOW | 14AWG / 3 | ✓ | ✓ |
| SJTOOW | 14AWG / 3 | ✓ | ✓ |
| SJ | 14AWG / 3 | ✓ | ✓ |
| SJW | 14AWG / 3 | ✓ | ✓ |
| SJO | 14AWG / 3 | ✓ | ✓ |
| SJOW | 14AWG / 3 | ✓ | ✓ |
| SJOOW | 14AWG / 3 | ✓ | ✓ |
| ST | 14AWG / 3 | ✓ | ✓ |
| STW | 14AWG / 3 | ✓ | ✓ |
| STO | 14AWG / 3 | ✓ | ✓ |
| STOW | 14AWG / 3 | ✓ | ✓ |
| STOOW | 14AWG / 3 | ✓ | ✓ |
| SJT | 12AWG / 3 | ✓ | ✓ |
| SJTW | 12AWG / 3 | ✓ | ✓ |
| SJTO | 12AWG / 3 | ✓ | ✓ |
| SJTOW | 12AWG / 3 | ✓ | ✓ |
| SJTOOW | 12AWG / 3 | ✓ | ✓ |
| SJ | 12AWG / 3 | ✓ | ✓ |
| SJW | 12AWG / 3 | ✓ | ✓ |
| SJO | 12AWG / 3 | ✓ | ✓ |
| SJOW | 12AWG / 3 | ✓ | ✓ |
| SJOOW | 12AWG / 3 | ✓ | ✓ |
| Cord Type | AWG / Cond. | UL | cUL |
|---|---|---|---|
| ST | 12AWG / 3 | ✓ | ✓ |
| STW | 12AWG / 3 | ✓ | ✓ |
| STO | 12AWG / 3 | ✓ | ✓ |
| STOW | 12AWG / 3 | ✓ | ✓ |
| STOOW | 12AWG / 3 | ✓ | ✓ |
| SJT | 10AWG / 3 | ✓ | ✓ |
| SJTW | 10AWG / 3 | ✓ | ✓ |
| SJTO | 10AWG / 3 | ✓ | ✓ |
| SJTOW | 10AWG / 3 | ✓ | ✓ |
| SJTOOW | 10AWG / 3 | ✓ | ✓ |
| SJ | 10AWG / 3 | ✓ | ✓ |
| SJW | 10AWG / 3 | ✓ | ✓ |
| SJO | 10AWG / 3 | ✓ | ✓ |
| SJOW | 10AWG / 3 | ✓ | ✓ |
| SJOOW | 10AWG / 3 | ✓ | ✓ |
| ST | 10AWG / 3 | ✓ | ✓ |
| STW | 10AWG / 3 | ✓ | ✓ |
| STO | 10AWG / 3 | ✓ | ✓ |
| STOW | 10AWG / 3 | ✓ | ✓ |
| ST00W | 10AWG / 3 | ✓ | ✓ |
| ST | 8AWG / 3 | ✓ | ✓ |
| STW | 8AWG / 3 | ✓ | ✓ |
| STO | 8AWG / 3 | ✓ | ✓ |
| STOW | 8AWG / 3 | ✓ | ✓ |
| STOOW | 8AWG / 3 | ✓ | ✓ |
Every construction listed is an approved cord set for this plug. Lengths and colors to order.
