BPL-L615A

NEMA L6-15P Twist-Lock Plug · 15A / 250V

BPL-L615A twist-lock plug

Specifications

ModelBPL-L615A
Product TypeTwist-Lock Plug
RegionNorth America
ConfigurationNEMA L6-15P
Rating15A / 250V
LockingTwist-lock
Supplied AsMolded cord sets, built to order

Approvals & Standards

ApprovalsUL 817
Cord-Set StandardUL 817 / CSA C22.2 No. 21
Custom OptionsLength, jacket color, opposite-end termination

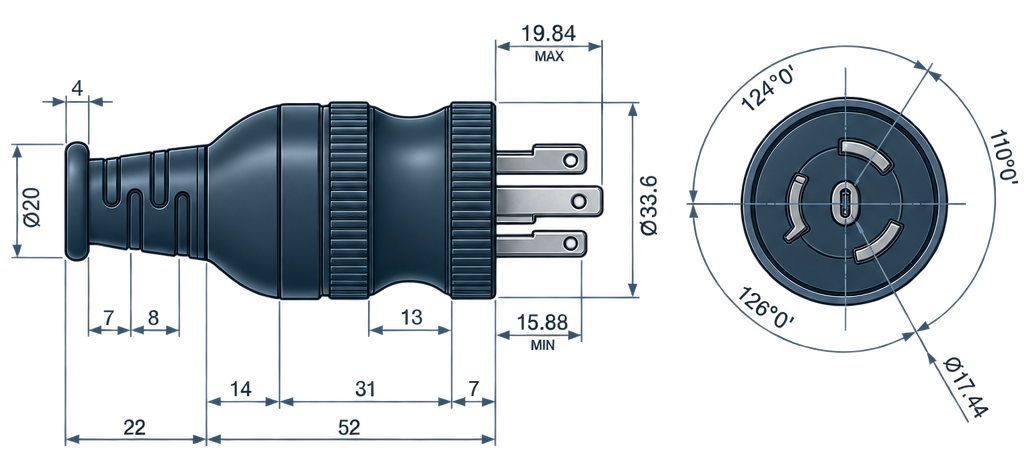

Outline Drawing

Outline dimension drawing of the BPL-L615A

Dimensions in mm. Tolerances as marked.

Approved Cord Constructions

Approved cord constructions on request
