BCN-515A
A NEMA 5-15R North American cord connector, molded to order as complete cord sets in the constructions listed below, with custom lengths, jacket colors, and opposite-end terminations to your specification.
Cord Constructions
Every cord type and gauge this connector is approved to be molded onto. Select rows to include them in your quote request.
| Cord Type | AWG / Conductors | UL | cUL | Quote |
|---|---|---|---|---|
| SVT | 17AWG / 3 | ✓ | ✓ | |
| SJT | 17AWG / 3 | ✓ | ✓ | |
| SJTW | 17AWG / 3 | ✓ | ✓ | |
| SJTO | 17AWG / 3 | ✓ | ✓ | |
| SJTOW | 17AWG / 3 | ✓ | ✓ | |
| SJT | 18AWG / 3 16AWG / 3 14AWG / 3 12AWG / 3 | ✓ | ✓ | |
| SJTW | 18AWG / 3 16AWG / 3 14AWG / 3 12AWG / 3 | ✓ | ✓ | |
| SJTO | 18AWG / 3 16AWG / 3 14AWG / 3 12AWG / 3 | ✓ | ✓ | |
| SJTOW | 18AWG / 3 16AWG / 3 14AWG / 3 12AWG / 3 | ✓ | ✓ | |
| SJTOOW | 18AWG / 3 16AWG / 3 14AWG / 3 12AWG / 3 | ✓ | ✓ |
Specifications
Full datasheets available on request.

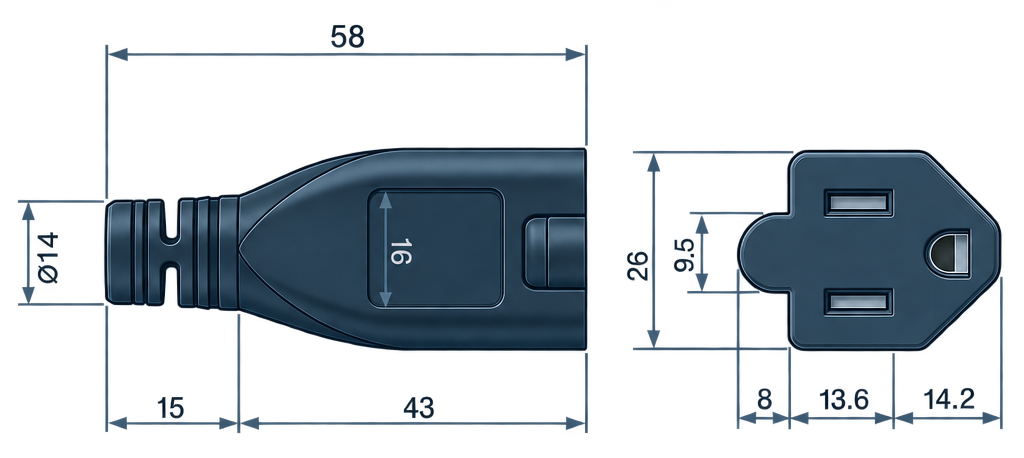

Dimensions
Dimensions in mm.
Datasheet
Outline drawing, ratings, and approved constructions.
Certified cord sets
UL 817 and CSA C22.2 cord-set approvals.
Custom assembly
Lengths, colors, and terminations built to your drawing.
Traceability docs
Certificate of conformance ships with every order.
