Axial Fans

EC Axial Fans

Electronically commutated fans that take AC line input with DC efficiency and controllability, from 80 mm to 280 mm frames.

19Standard models

80–280 mmFrame sizes

42–1140 CFMMax airflow range

The Full AC Range

34 models

Model	Dimensions (mm)	Max Airflow	Protection	Rotor
BAC28089A	280 × 280 × 88.9	1450 CFM	IP44	Inner
BAC25489AR	Dia. 254 × 89	1068 CFM	IP44	Inner
BAC25489A	Dia. 254 × 89	680 CFM	IP44	Inner
BAC22580A	225 × 225 × 80	692 CFM	IP44	Inner
BAC20572A	205 × 205 × 72	720 CFM	IP44	Inner
BAC20070AR	Dia. 200 × 220 × 70	510 CFM	IP44	Inner
BAC17689A	176 × 176 × 89	410 CFM	IP44	Inner
BAC18065A	180 × 180 × 65	405 CFM	IP44	Inner
BAC15051AC	172 × 150 × 51	312 CFM	IP44	Inner
BAC17255AH	150 × 172 × 55	265 CFM	IP44	Outer
BAC17255A	150 × 172 × 55	230 CFM	IP44	Inner
BAC17251ARH	Dia. 172 × 51	320 CFM	IP44	Outer
BAC17251AR	Dia. 172 × 51	238 CFM	IP44	Inner
BAC15051AB	172 × 150 × 51	235 CFM	IP44	Inner
BAC15051AM	172 × 150 × 51	220 CFM	IP44	Inner
BAC15051A	172 × 150 × 51	215 CFM	IP44	Inner
BAC16062A	160 × 160 × 62	340 CFM	IP44	Inner
BAC15038A	172 × 150 × 38.5	210 CFM	IP44	Inner
BAC12738A	127 × 127 × 38.5	130 CFM	IP44	Inner
BAC12038AB	120 × 120 × 38.5	125 CFM	IP44	Inner
BAC11938P	119 × 119 × 38	135 CFM	IP67/68	Outer
BAC12038AM	120 × 120 × 38.5	110 CFM	IP44	Inner
BAC12038A	120 × 120 × 38.5	105 CFM	IP44	Inner
BAC12025AM	120 × 120 × 25.5	68 CFM	IP44	Inner
BAC12025A	120 × 120 × 25.5	75 CFM	IP44	Inner
BAC9238AM	92 × 92 × 38.5	50 CFM	IP44	Inner
BAC9238A	92 × 92 × 38.5	52 CFM	IP44	Inner
BAC9225AM	92 × 92 × 25.5	33 CFM	IP44	Inner
BAC9225A	92 × 92 × 26	35 CFM	IP44	Inner
BAC8038AB	80 × 80 × 38.5	30 CFM	IP44	Inner
BAC8038AM	80 × 80 × 38.5	30 CFM	IP44	Inner
BAC8038A	80 × 80 × 38	31 CFM	IP44	Inner
BAC8025AM	80 × 80 × 25.5	25 CFM	IP44	Inner
BAC8025A	80 × 80 × 26	25 CFM	IP44	Inner

Showing all 34 AC models · spec sheet linked on every row All product lines →

No AC fan models match your filter.

Metal-impeller versions and custom configurations available on request. Pair your fans with guards, filters, and cords.

The Full DC Range

79 models

Model	Dimensions (mm)	Airflow Range	Protection	Options
BDC28089A	280 × 280 × 88.9	722–1180 CFM	IP55 / IP67	PWM · Tach
BDC25489A	Dia. 254 × 89	350–1100 CFM	IP55 / IP68	PWM · Tach
BDC20070AR	Dia. 200 × 70	280–505 CFM	IP55 / IP67	PWM · Tach
BDC18065A	180 × 180 × 65	215–500 CFM	IP55 / IP68	PWM · Tach
BDC17255A	172 × 150 × 55	150–300 CFM	IP55 / IP56	PWM · Tach
BDC17251PR	Dia. 172 × 51	120–225 CFM	IP55 / IP56	PWM · Tach
BDC17251ARS	172 × 51	520–600 CFM	IP55 / IP68	PWM · Tach
BDC17251ARM	Dia. 172 × 51	152–610 CFM	IP55 / IP68	Metal impeller
BDC17251AR	Dia. 172 × 51	130–320 CFM	IP55 / IP56	PWM · Tach
BDC15051ABM	172 × 152 × 51.6	187–610 CFM	IP55 / IP68	Metal impeller
BDC15051AB	172 × 150 × 51	125–320 CFM	IP55 / IP56	PWM · Tach
BDC15051A	172 × 152 × 51.6	330–472 CFM	IP55 / IP68	PWM · Tach
BDC15038A	172 × 150 × 38.5	120–255 CFM	IP55 / IP56	PWM · Tach
BDC14038PS	140 × 140 × 38	125–300 CFM	IP55 / IP68	PWM · Tach
BDC14038P	140 × 140 × 38	225–272 CFM	IP55 / IP68	PWM · Tach
BDC12738A	127 × 127 × 38.5	86–145 CFM	IP55 / IP56	PWM · Tach
BDC12038AS	120 × 120 × 38	175–300 CFM	IP55 / IP68	PWM · Tach
BDC12038AH	120 × 120 × 38.5	70–135 CFM	IP55 / IP56	PWM · Tach
BDC12038A	119.5 × 119.5 × 38.5	68–123 CFM	IP55 / IP56	PWM · Tach
BDC12038PSM	120 × 120 × 38	210–250 CFM	IP55 / IP68	Metal impeller
BDC12038PS	120 × 120 × 38	215–285 CFM	IP55 / IP68	PWM · Tach
BDC12038PM	120 × 120 × 38	68–180 CFM	IP55 / IP68	Metal impeller
BDC12038P	120 × 120 × 38	65–103 CFM	IP55 / IP56	PWM · Tach
BDC12032P	120 × 120 × 32	65–120 CFM	IP55 / IP67	Metal impeller
BDC12032A	120 × 120 × 32	62–112 CFM	IP55 / IP56	PWM · Tach
BDC12025A	120 × 120 × 25	72–125 CFM	IP55 / IP56	Metal impeller
BDC12025PSM	120 × 120 × 25	200 CFM	IP55 / IP68	Metal impeller
BDC12025PS	120 × 120 × 25	107–175 CFM	IP55 / IP68	PWM · Tach
BDC12025PM4	120 × 120 × 25	70–88 CFM	IP55 / IP68	Metal impeller
BDC12025PM	120 × 120 × 25	62–120 CFM	IP55 / IP68	Metal impeller
BDC12025P	120 × 120 × 25.5	45–86 CFM	IP55 / IP56	PWM · Tach
BDC9238PS	92 × 92 × 38	130–185 CFM	IP55 / IP68	PWM · Tach
BDC9238P	92 × 92 × 38	78–168 CFM	IP55 / IP68	PWM · Tach
BDC9232P	92 × 92 × 32	52–166 CFM	IP55 / IP68	PWM · Tach
BDC9238A	92 × 92 × 38	58–75 CFM	IP55 / IP56	PWM · Tach
BDC9225A	92 × 92 × 25	61–92 CFM	IP55 / IP56	Metal impeller
BDC9225PS	92 × 92 × 25.4	57–112 CFM	IP55 / IP68	PWM · Tach
BDC9225P	92 × 92 × 25	25–100 CFM	IP55 / IP68	PWM · Tach
BDC8038PS	80 × 80 × 38	23–185 CFM	IP55 / IP68	PWM · Tach
BDC8038P	80 × 80 × 38	50–132 CFM	IP55 / IP68	PWM · Tach
BDC8032P	80 × 80 × 32	40–88 CFM	IP55 / IP68	PWM · Tach
BDC8025A	80 × 80 × 25	31–66 CFM	IP55 / IP56	Metal impeller
BDC8025PS	80 × 80 × 25	43–105 CFM	IP55 / IP56	PWM · Tach
BDC8025P	80 × 80 × 25	22–72 CFM	IP55 / IP68	PWM · Tach
BDC8020P	80 × 80 × 20	24–60 CFM	IP55 / IP56	PWM · Tach
BDC8015P	80 × 80 × 15	28–50 CFM	IP55 / IP56	PWM · Tach
BDC7025P	70 × 70 × 25	24–75 CFM	IP55 / IP68	PWM · Tach
BDC7020P	70 × 70 × 20	26.8–47.2 CFM	IP55 / IP68	PWM · Tach
BDC7015P	70 × 70 × 15	19.5–52 CFM	IP55 / IP68	PWM · Tach
BDC6038P	60 × 60 × 38	35–90 CFM	IP55 / IP68	PWM · Tach
BDC6025PS	60 × 60 × 25	23–63 CFM	IP55 / IP68	PWM · Tach
BDC6025P	60 × 60 × 25	12–45 CFM	IP55 / IP68	PWM · Tach
BDC6020P	60 × 60 × 20	10–32 CFM	IP55 / IP67	PWM · Tach
BDC6015P	60 × 60 × 15	13–26 CFM	IP55 / IP67	PWM · Tach
BDC6010P	60 × 60 × 10.5	12.3–22 CFM	IP55 / IP67	PWM · Tach
BDC5210P	52 × 52 × 10.5	9–18 CFM	IP55 / IP67	PWM · Tach
BDC5020P	50 × 50 × 19.5	11.7–18 CFM	IP55 / IP67	PWM · Tach
BDC5015PS	50 × 50 × 15	18–24 CFM	IP55 / IP67	PWM · Tach
BDC5015P	50 × 50 × 15	11–20 CFM	IP55 / IP67	PWM · Tach
BDC5012P	50 × 50 × 12	7–14 CFM	IP55 / IP67	PWM · Tach
BDC5010P	50 × 50 × 10.5	5–17 CFM	IP55 / IP67	PWM · Tach
BDC5009P	50 × 50 × 9.5	8–12.7 CFM	IP55 / IP67	PWM · Tach
BDC4510P	45 × 45 × 10.5	11.5 CFM	IP55 / IP67	PWM · Tach
BDC4056P	40 × 40 × 56	25–43.2 CFM	IP55 / IP67	PWM · Tach
BDC4028PS	40 × 40 × 28	33.4–40 CFM	IP55 / IP67	PWM · Tach
BDC4028PM	40 × 40 × 28	25–32 CFM	IP55 / IP67	Metal impeller
BDC4028P	40 × 40 × 28	6–25 CFM	IP55 / IP67	PWM · Tach
BDC4020PS	40 × 40 × 20	5.8–22 CFM	IP55 / IP67	PWM · Tach
BDC4020P	40 × 40 × 20	4.8–9.7 CFM	IP55 / IP67	PWM · Tach
BDC4015P	40 × 40 × 15	8.5–18.4 CFM	IP55 / IP67	PWM · Tach
BDC4010PM	40 × 40 × 10.5	5.0–17.5 CFM	IP55 / IP67	Metal impeller
BDC4010P	40 × 40 × 10.5	4.75–12 CFM	IP55 / IP67	PWM · Tach
BDC4007P	40 × 40 × 7.5	4.3–5.9 CFM	IP55 / IP67	PWM · Tach
BDC3828P	38 × 38 × 28	13–24 CFM	IP55 / IP67	PWM · Tach
BDC3820P	38 × 38 × 20	6.5–14 CFM	IP55 / IP67	PWM · Tach
BDC3510P	35 × 35 × 11	1.8–9.0 CFM	IP55 / IP67	PWM · Tach
BDC3010P	30 × 30 × 10.5	2.5–5.6 CFM	IP55 / IP67	Micro frame
BDC2510P	25 × 25 × 10	1.5–3.8 CFM	IP55 / IP67	Micro frame
BDC1708P	17 × 17 × 8	0.8–1.25 CFM	IP55 / IP67	Micro frame

Showing all 79 DC models · spec sheet linked on every row All product lines →

No DC fan models match your filter.

Airflow ranges reflect speed variants. Metal-impeller (MS) versions noted; custom configurations available on request.

The Full EC Range

19 models

Model	Dimensions (mm)	Max Airflow	Protection	Type
BEC28090A	Dia. 280 × 90	1140 CFM	IP44	EC Motor
BEC25489A	Dia. 254 × 89.5	830 CFM	IP44	EC Motor
BEC20572A	206 × 206 × 72.5	630 CFM	IP44	EC Motor
BEC20060A	202 × 202 × 60.8	500 CFM	IP44	EC Motor
BEC15051A	172 × 152 × 51.6	360 CFM	IP68	EC Motor
BEC15051AM	172 × 152 × 51.6	220 CFM	IP68	EC Motor
BEC12038P	120 × 120 × 38	133 CFM	IP68	EC Motor

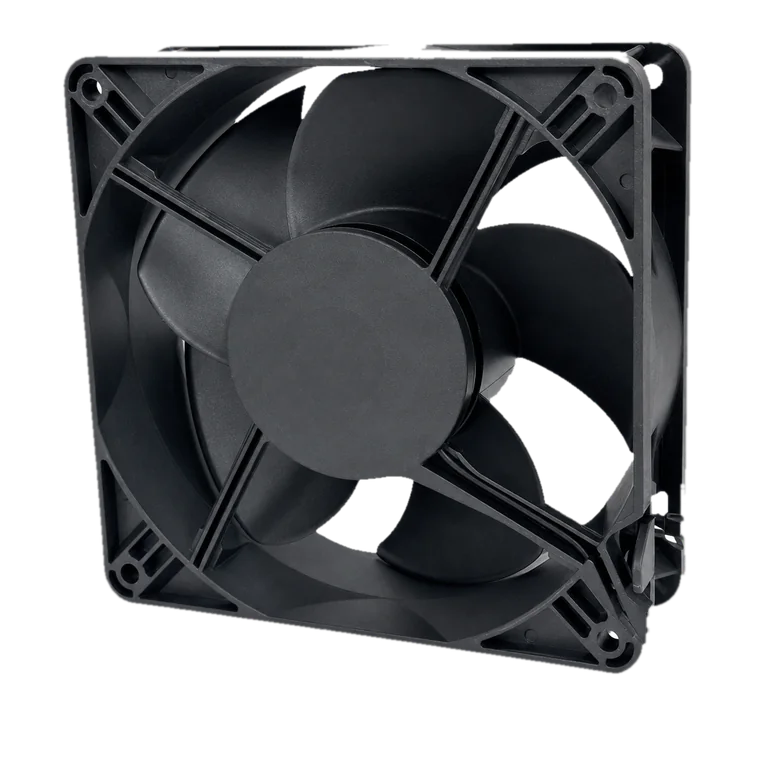

BEC11938PE	119 × 119 × 38	112 CFM	IP67	Economical
BEC12025P	120 × 120 × 25	80 CFM	IP44	EC Motor
BEC9238PM	92 × 92 × 38	86 CFM	IP44	EC Motor
BEC9238P	92 × 92 × 38	85 CFM	IP44	EC Motor
BEC9238PE	92 × 92 × 38	82 CFM	IP67	Economical
BEC9232P	92 × 92 × 32	58 CFM	IP44	EC Motor
BEC9225PM	92 × 92 × 25.2	56 CFM	IP55 / IP68	EC Motor
BEC9225P	92 × 92 × 25	56 CFM	IP44	EC Motor
BEC8038PM	80 × 80 × 38	60 CFM	IP55 / IP68	EC Motor
BEC8038P	80 × 80 × 38	60 CFM	IP44	EC Motor
BEC8025PM	80 × 80 × 25	42 CFM	IP55 / IP68	EC Motor
BEC8025P	80 × 80 × 25	42 CFM	IP44	EC Motor

Showing all 19 EC models · spec sheet linked on every row All product lines →

No EC fan models match your filter.

Ideal for retrofits and new energy-efficient designs. Pair your fans with guards, filters, and cords.

Ready to Order

Found the Model You Need?

Send us the model numbers and quantities. We’ll respond within one business day with pricing, lead times, and full datasheets.

Request a Quote
