All Products  /  Power Cords  /  BPL-115B-C

North America · NEMA Plug
UL 817

BPL-115B-C

A NEMA 1-15P North American attachment plug, molded to order as complete cord sets in the constructions listed below, with custom lengths, jacket colors, and opposite-end terminations to your specification.

Request a Quote PDFDatasheet ← All Straight-Blade Plugs
NEMA 1-15PConfiguration
15A / 125VRating
UL · cULApprovals
51Cord constructions
BPL-115B-C NEMA 1-15P attachment plug
Cord Constructions Specifications Drawings & Docs Related Models
Approved Constructions

Cord Constructions

51 constructions

Every cord type and gauge this plug is approved to be molded onto. Select rows to include them in your quote request.

Cord TypeAWG / ConductorsULcULQuote
S18AWG / 2✓✓
SJ18AWG / 2✓✓
SJT18AWG / 2✓✓
SJW18AWG / 2✓✓
SJTW18AWG / 2✓✓
SJTO18AWG / 2✓✓
SJTOW18AWG / 2✓✓
SJE18AWG / 2✓✓
SJO18AWG / 2✓✓
SJOW18AWG / 2✓✓
HSJ18AWG / 2✓✓
HSJO18AWG / 2✓✓
HSJW18AWG / 2✓✓
HSJOW18AWG / 2✓✓
ST18AWG / 2✓✓
STW18AWG / 2✓✓
STO18AWG / 2✓✓
STOW18AWG / 2✓✓
SVT18AWG / 2✓✓
SVT17AWG / 2✓✓
S16AWG / 2✓✓
SJT16AWG / 2✓✓
SJTO16AWG / 2✓✓
SJTW16AWG / 2✓✓
SJ16AWG / 2✓✓
SJW16AWG / 2✓✓
SJO16AWG / 2✓✓
SJOW16AWG / 2✓✓
SJE16AWG / 2✓✓
HSJ16AWG / 2✓✓
HSJO16AWG / 2✓✓
HSJW16AWG / 2✓✓
HSJOW16AWG / 2✓✓
SJTOW16AWG / 2✓✓
ST16AWG / 2✓✓
STW16AWG / 2✓✓
STO16AWG / 2✓✓
STOW16AWG / 2✓✓
SVT16AWG / 2✓✓
SJT14AWG / 2✓✓
SJW14AWG / 2✓✓
SJOW14AWG / 2✓✓
SJTW14AWG / 2✓✓
SJTO14AWG / 2✓✓
SJTOW14AWG / 2✓✓
ST14AWG / 2✓✓
STW14AWG / 2✓✓
STO14AWG / 2✓✓
STOW14AWG / 2✓✓
SJ14AWG / 2✓✓
SJO14AWG / 2✓✓
Molded to order, with custom lengths, jacket colors, strip and termination options available.
Technical Details

Specifications

Electrical
ConfigurationNEMA 1-15P
RegionNorth America
Rating15A / 125V
ApprovalsUL 817 · cUL / CSA C22.2
Ordering
Cord constructions51
LengthsCustom, to your spec
Opposite endStripped, terminated, or connector

Full datasheets available on request.

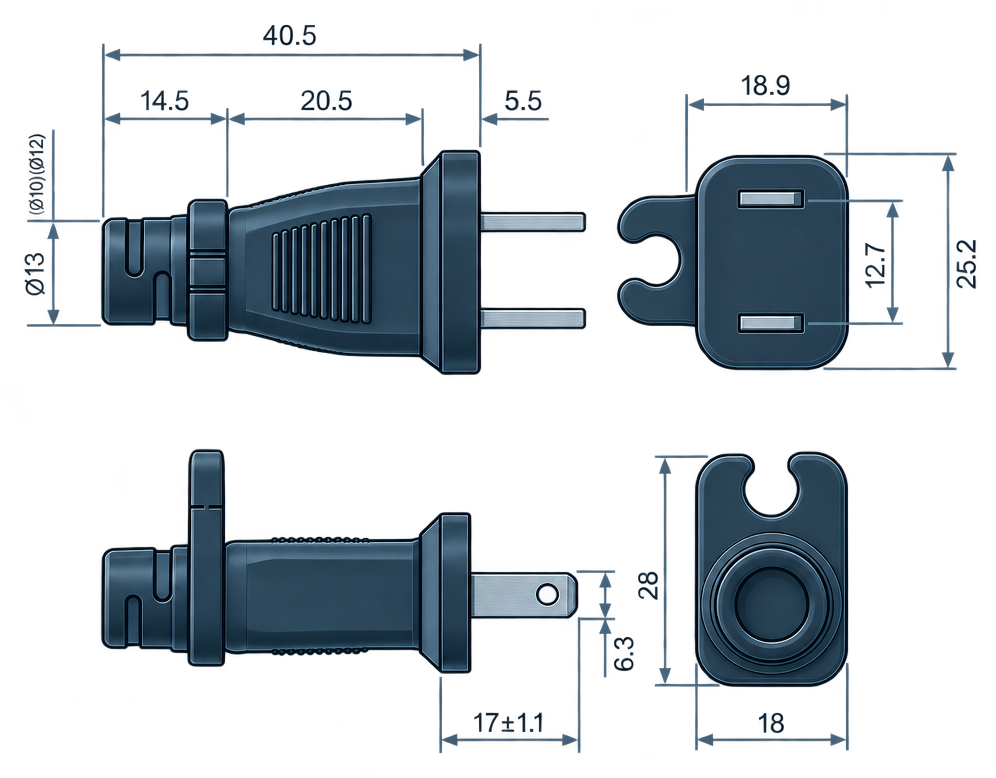

Outline Drawing

Dimensions

Outline dimension drawing of the BPL-115B-C

Dimensions in mm.

PDF

Datasheet

Outline drawing, ratings, and approved constructions.

UL

Certified cord sets

UL 817 and CSA C22.2 cord-set approvals.

CUT

Custom assembly

Lengths, colors, and terminations built to your drawing.

CoC

Traceability docs

Certificate of conformance ships with every order.

Ready to Order

Need Pricing on the BPL-115B-C?

Tell us the construction, length, and quantity, and we’ll respond within one business day with pricing, lead times, and full datasheets.

Request a Quote
