All Products / Power Cords / BPL-L630A
BPL-L630A
A NEMA L6-30P North American attachment plug, molded to order as complete cord sets in the constructions listed below, with custom lengths, jacket colors, and opposite-end terminations to your specification.
Cord Constructions
Every cord type and gauge this plug is approved to be molded onto. Select rows to include them in your quote request.
| Cord Type | AWG / Conductors | UL | cUL | Quote |
|---|---|---|---|---|
| SJ | 14AWG / 3 12AWG / 3 10AWG / 3 | ✓ | ✓ | |
| SJO | 14AWG / 3 12AWG / 3 10AWG / 3 | ✓ | ✓ | |
| SJOW | 14AWG / 3 12AWG / 3 10AWG / 3 | ✓ | ✓ | |
| SJOOW | 14AWG / 3 12AWG / 3 10AWG / 3 | ✓ | ✓ | |
| SJT | 14AWG / 3 12AWG / 3 10AWG / 3 | ✓ | ✓ | |
| SJTW | 14AWG / 3 12AWG / 3 10AWG / 3 | ✓ | ✓ | |
| SJTO | 14AWG / 3 12AWG / 3 10AWG / 3 | ✓ | ✓ | |
| SJTOW | 14AWG / 3 12AWG / 3 10AWG / 3 | ✓ | ✓ | |
| SJTOOW | 14AWG / 3 12AWG / 3 10AWG / 3 | ✓ | ✓ | |
| SJTOO | 14AWG / 3 12AWG / 3 10AWG / 3 | ✓ | ✓ | |
| ST | 14AWG / 3 12AWG / 3 10AWG / 3 | ✓ | ✓ | |
| STW | 14AWG / 3 12AWG / 3 10AWG / 3 | ✓ | ✓ | |
| STO | 14AWG / 3 12AWG / 3 10AWG / 3 | ✓ | ✓ | |
| STOO | 14AWG / 3 12AWG / 3 10AWG / 3 | ✓ | ✓ | |
| STOOW | 14AWG / 3 12AWG / 3 10AWG / 3 | ✓ | ✓ |
Specifications
Full datasheets available on request.

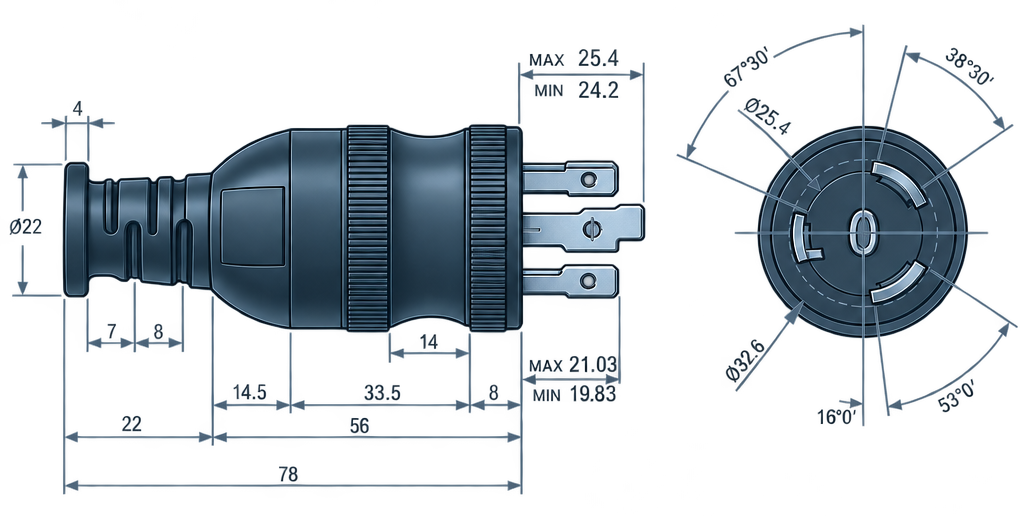

Dimensions
Dimensions in mm.
Datasheet
Outline drawing, ratings, and approved constructions.
Certified cord sets
UL 817 and CSA C22.2 cord-set approvals.
Custom assembly
Lengths, colors, and terminations built to your drawing.
Traceability docs
Certificate of conformance ships with every order.
Related Models
Ready to Order
Need Pricing on the BPL-L630A?
Tell us the construction, length, and quantity, and we’ll respond within one business day with pricing, lead times, and full datasheets.
