Metal Fan Guards
Welded steel-wire guards with a bright electroplated nickel-chrome finish, or a black electro-deposit coating on request. Sized to every standard frame from 25 mm to 280 mm.
29Standard models
25–280 mmFits fan sizes
Ni-CrElectroplated finish
The Full Range
29 modelsClick any model to see the expanded product image. Every guard ships matched, tested, and ready to install with the fans it fits.
| Model | Fits Fan | Type | Quote | |
|---|---|---|---|---|
 | BFG-25M-01 | 25 mm (1.0″) | Standard wire form guard | |
 | BFG-40M-01 | 40 mm (1.57″) | Standard Type | |
 | BFG-50M-01 | 50 mm (2.0″) | Standard Type | |
 | BFG-60M-01 | 60 mm (2.36″) | Standard Type | |
 | BFG-60MF-02 | 60 mm (2.36″) | Flat Type, Standard Type | |
 | BFG-80M-01 | 80 mm (3.15″) | Standard Type | |
 | BFG-92M-01 | 92 mm (3.62″) | Standard Type | |
 | BFG-92M-02 | 92 mm (3.62″) | Standard Type | |
 | BFG-92MR-03 | 92 mm (3.62″) | 2 Rib Type, Special Type | |
 | BFG-120M-01 | 120 mm (4.7″) | Standard Type | |
 | BFG-120M-02 | 120 mm (4.7″) | Standard Type | |
 | BFG-120M-04 | 120 mm (4.7″) | Special Type | |
 | BFG-120MF-05 | 120 mm (4.7″) | Flat Type, Special Type | |
 | BFG-120M-06 | 120 mm (4.7″) | Standard Type | |
 | BFG-120MD-03 | 120 mm (4.7″) | Center Disk Type, Special Type | |
 | BFG-127M-01 | 127 mm (5.0″) | Special Type | |
 | BFG-172M-03 | 172 mm (6.0″) | Special Type | |
 | BFG-172M-01 | 172 mm (6.0″) | Standard Type | |
 | BFG-172M-02 | 172 mm (6.0″) | Special Type | |
 | BFG-172MD-04 | 172 mm (6.0″) | Center Disk Type, Special Type | |
 | BFG-172MD-05 | 172 mm (6.0″) | Center Disk Type, Special Type | |
 | BFG-180M-01 | 180 mm (7.0″) | Standard Type | |
 | BFG-200M-01 | 200 mm (7.87″) | Standard Type | |

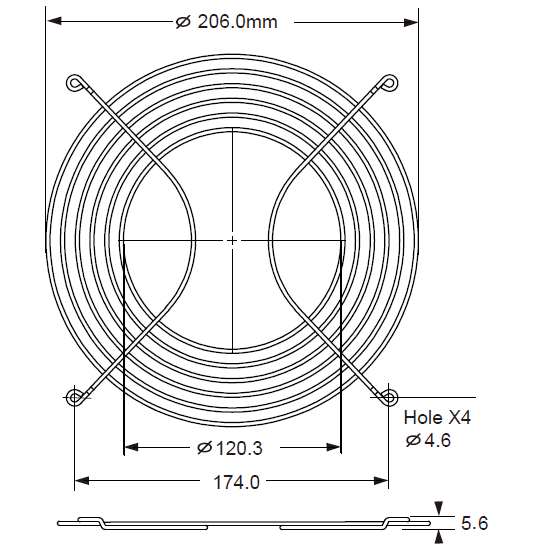

 | BFG-205M-02 | 205 mm (8.07″) | Standard Type | |
 | BFG-205M-01 | 205 mm (8.07″) | Standard Type | |
 | BFG-205MD-03 | 205 mm (8.07″) | Center Disk Type, Standard Type | |
 | BFG-225MD-01 | 225 mm (8.9″) | Center Disk Type, Standard Type | |

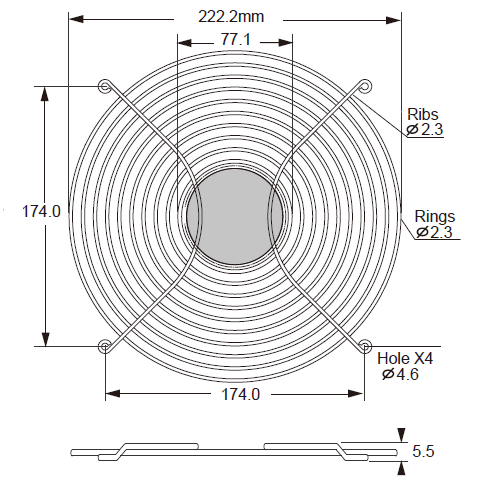

 | BFG-254MD-01 | 254 mm (10.0″) | Center Disk Type, Standard Type | |
 | BFG-280M-01 | 280 mm (11.0″) | Standard Type |
Showing all 29 metal fan guards · full drawings on request
All fan accessories →
No guard models match your filter.
Ready to Order
Found the Model You Need?
Send us the guard models and the fans they pair with, and we’ll respond within one business day with pricing and lead times.
Request a Quote
