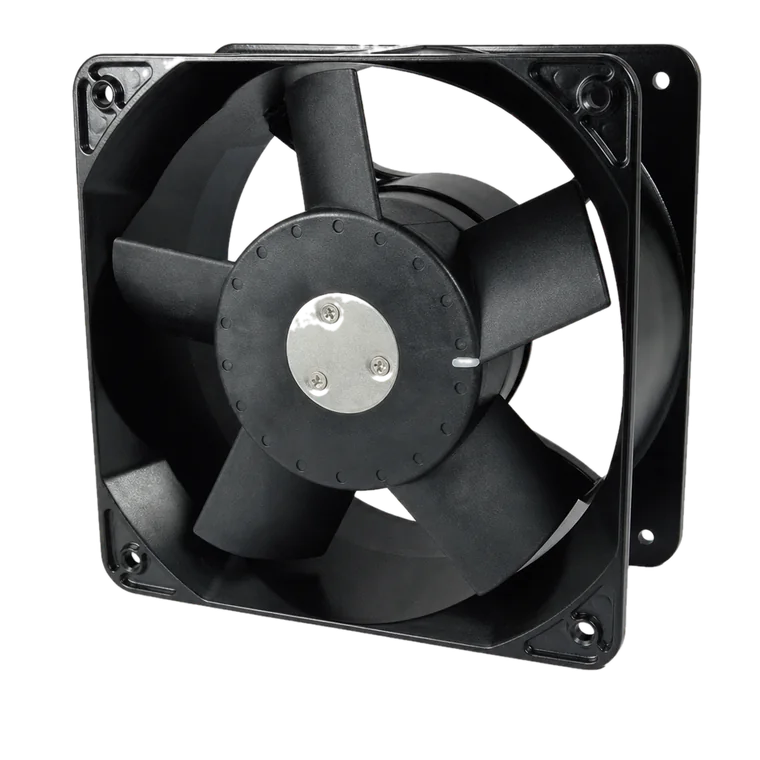

BAC17689A

Name: BAC17689A
Brand: Berring Industrial

A line-voltage AC axial fan available in the variants listed below. Full datasheets, pricing, and lead times on request, delivered with Berring's quality control and logistics handled end to end.

Request a Quote PDFDatasheet ← All AC Fans

176 × 176 × 89Dimensions (mm)

410 CFMMax airflow

IP44Protection

10Standard variants

Variants Specifications Performance Curves Drawings & Docs Accessories

Performance Data

Model Variants

10 variants · tolerance ±10%

Every standard variant of the BAC17689A with rated voltage, speed, airflow, static pressure, and noise level. Select rows to include them in your quote request.

Model No	Rated VAC	Range VAC	Freq (Hz)	Input (W)	Speed (RPM)	Airflow (CFM)	m³/min	Static P. (in H₂O)	(mm H₂O)	Noise dB(A)	PQ	UL
BAC17689A-11-1**	115	100~120	50/60	60/70	2750/3200	360/410	10.2/11.6	0.68/0.85	17.27/21.59	62	2/1	✓
BAC17689A-11-2**	115	100~120	50/60	40/50	2300/2200	305/290	8.6/8.2	0.62/0.58	15.75/14.73	50	4/3	✓
BAC17689A-11-3**	115	100~120	50/60	26/38	1400/1600	190/210	5.4/5.9	0.37/0.43	9.4/10.92	38	6/5	✓
BAC17689A-11-1/2** dual speed	115	100~120	50/60	60/70 40/50	2750/3200 2300/2200	360/410 305/290	10.2/11.6 8.6/8.2	0.68/0.85 0.62/0.58	17.27/21.59 15.75/14.73	62 49	2/1 4/3	✓
BAC17689A-22-1**	230	200~240	50/60	60/70	2750/3200	360/410	10.2/11.6	0.68/0.85	17.27/21.59	62	2/1	✓
BAC17689A-22-2**	230	200~240	50/60	40/50	2300/2200	305/290	8.6/8.2	0.62/0.58	15.75/14.73	50	4/3	✓
BAC17689A-22-3**	230	200~240	50/60	26/38	1400/1600	190/210	5.4/5.9	0.37/0.43	9.4/10.92	38	6/5	✓
BAC17689A-22-1/2** dual speed	230	200~240	50/60	60/70 40/50	2750/3200 2400/2300	360/410 305/290	10.2/11.6 8.6/8.2	0.68/0.85 0.62/0.58	17.27/21.59 15.75/14.73	62 50	2/1 4/3	✓
BAC17689A-38-1**	380	380~420	50/60	60/70	2700/3200	355/410	10.1/11.6	0.68/0.85	17.27/21.59	62	2/1	✓
BAC17689A-44-1**	440	440~480	50/60	60/70	2700/3200	355/410	10.1/11.6	0.68/0.85	17.27/21.59	62	2/1	✓

** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing.
100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480V... 50/60Hz, & dual voltage version available on request.
Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request.
Berring Industrial reserves the right to change data and improve electrical or mechanical design without notice.
Data tolerance ±10%.

Technical Details

Specifications

Motor

Motor TypeCapacitor induction, inner rotor

Burnout ProtectionThermally protected

IP ProtectionIP44

Mechanical

FrameAluminum die-cast, black finish

ImpellerGlass fiber reinforced plastic, rated UL94V-0

BearingBall bearing

RotationCW when viewed from rotor

ConnectionLead wires or Terminals

Weight1800g (4.0Lbs)

Electronical

Dielectric Strength1,500VAC, 0.5mA, 50/60 Hz

Insulation ResistanceOver 100MΩ at DC 500V

Signal OutputOption : FG, RD...

Environment

Operating Temp-20C~+70C

Storage Temp-40C~+100C (at 65%RH)

Life ExpectancyL10 90K hours at 35C, 40K hours at 60C

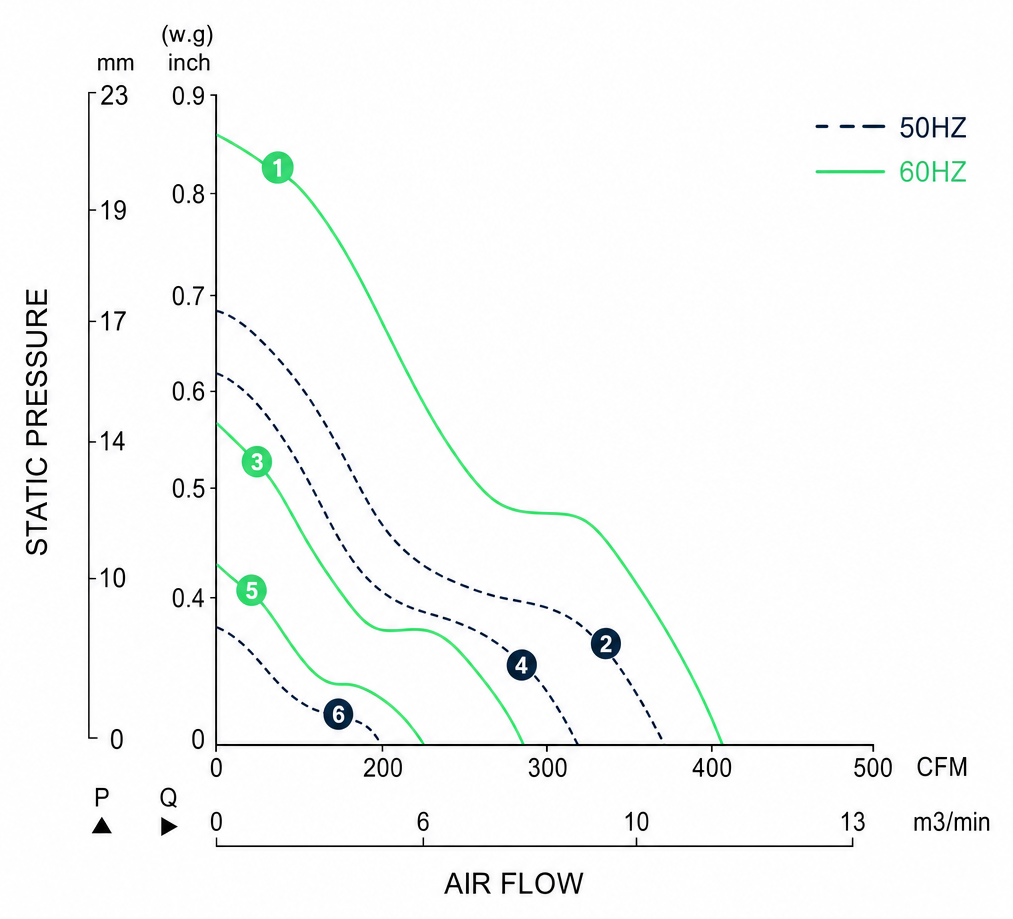

Measured P-Q

Performance Curves

Manufacturer test data · tolerance ±10%. Certified curves available with the full datasheet.

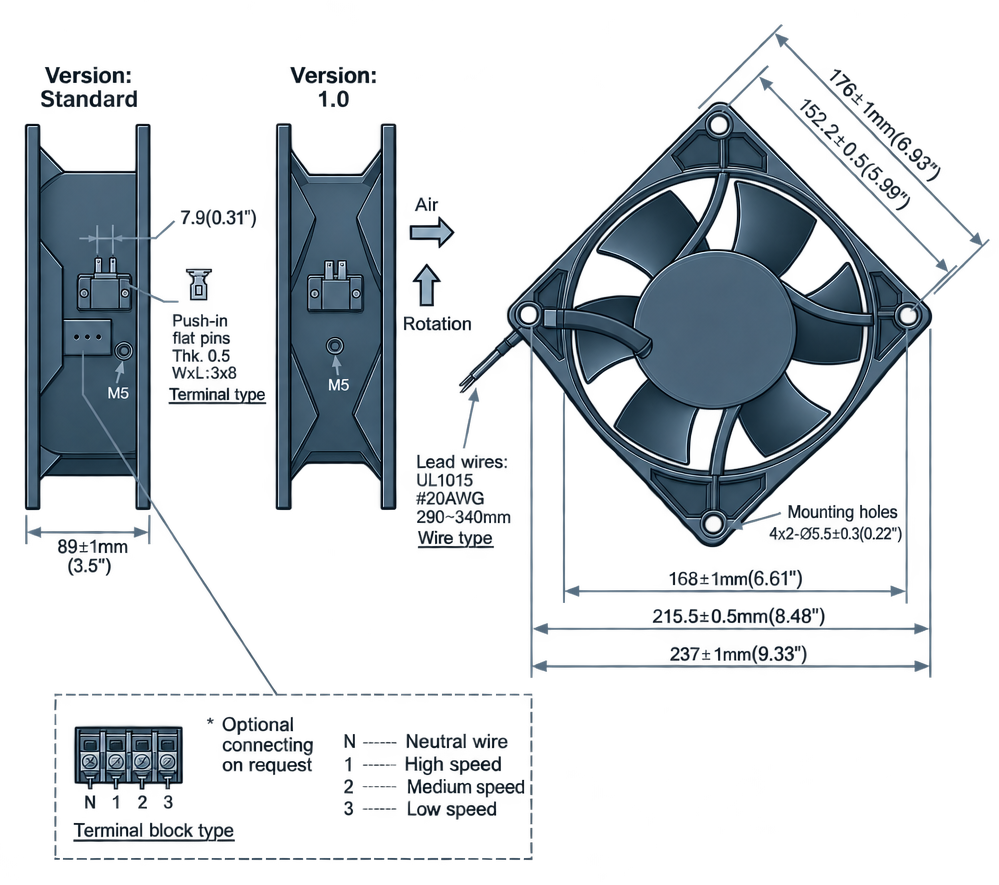

Outline dimension drawing of the BAC17689A

Dimensions in mm (inches).

PDF

Datasheet

Full electrical & mechanical spec, all 10 variants.

CAD

STEP / DXF models

3D and 2D files for enclosure design, on request.

Performance data

Measured P-Q curves for every speed variant.

CoC

Traceability docs

Certificate of conformance ships with every order.
