All Products  /  Power Cords  /  BCN-520A

North America · Cord Connector
UL 817

BCN-520A

A NEMA 5-20R North American cord connector, molded to order as complete cord sets in the constructions listed below, with custom lengths, jacket colors, and opposite-end terminations to your specification.

Request a Quote PDFDatasheet ← All Cord Connectors
NEMA 5-20RConfiguration
20A / 125VRating
UL · cULApprovals
3Cord constructions
BCN-520A NEMA 5-20R cord connector
Cord Constructions Specifications Drawings & Docs Related Models
Approved Constructions

Cord Constructions

3 constructions

Every cord type and gauge this connector is approved to be molded onto. Select rows to include them in your quote request.

Cord TypeAWG / ConductorsULcULQuote
SJT16AWG / 3——
SJT14AWG / 3——
SJT12AWG / 3——
Molded to order, with custom lengths, jacket colors, strip and termination options available.
Technical Details

Specifications

Electrical
ConfigurationNEMA 5-20R
RegionNorth America
Rating20A / 125V
ApprovalsUL 817 · cUL / CSA C22.2
Ordering
Cord constructions3
LengthsCustom, to your spec
Opposite endStripped, terminated, or connector

Full datasheets available on request.

Outline Drawing

Dimensions

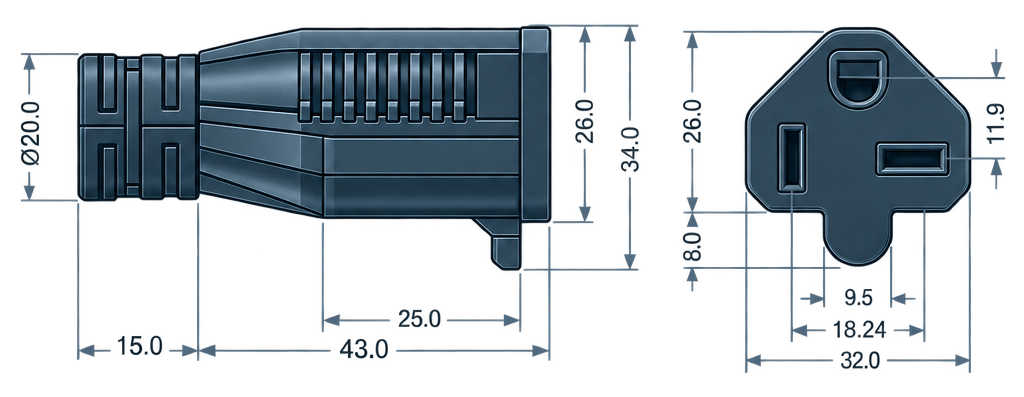

Outline dimension drawing of the BCN-520A

Dimensions in mm.

PDF

Datasheet

Outline drawing, ratings, and approved constructions.

UL

Certified cord sets

UL 817 and CSA C22.2 cord-set approvals.

CUT

Custom assembly

Lengths, colors, and terminations built to your drawing.

CoC

Traceability docs

Certificate of conformance ships with every order.
