All Products  /  Power Cords  /  BCN-XA

North America · Cord Connector

BCN-XA

A Custom North American cord connector, molded to order as complete cord sets in the constructions listed below, with custom lengths, jacket colors, and opposite-end terminations to your specification.

Request a Quote PDFDatasheet ← All Cord Connectors
CustomConfiguration
7A / 125VRating
4Cord constructions
BCN-XA Custom cord connector
Cord Constructions Specifications Drawings & Docs Related Models
Approved Constructions

Cord Constructions

4 constructions

Every cord type and gauge this connector is approved to be molded onto. Select rows to include them in your quote request.

Cord TypeAWG / ConductorsULcULQuote
SPT-118AWG / 2——
SPT-218AWG / 2——
NISP-118AWG / 2——
NISP-218AWG / 2——
Molded to order, with custom lengths, jacket colors, strip and termination options available.
Technical Details

Specifications

Electrical
ConfigurationCustom
RegionNorth America
Rating7A / 125V
Ordering
Cord constructions4
LengthsCustom, to your spec
Opposite endStripped, terminated, or connector

Full datasheets available on request.

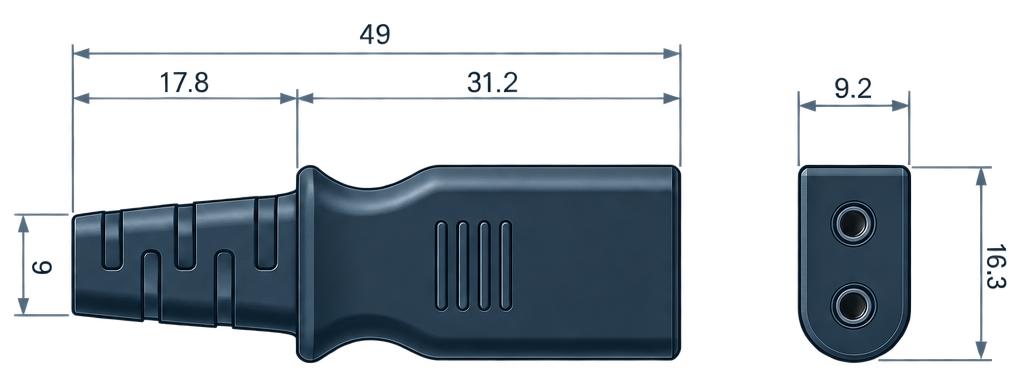

Outline Drawing

Dimensions

Outline dimension drawing of the BCN-XA

Dimensions in mm.

PDF

Datasheet

Outline drawing, ratings, and approved constructions.

UL

Certified cord sets

UL 817 and CSA C22.2 cord-set approvals.

CUT

Custom assembly

Lengths, colors, and terminations built to your drawing.

CoC

Traceability docs

Certificate of conformance ships with every order.

Ready to Order

Need Pricing on the BCN-XA?

Tell us the construction, length, and quantity, and we’ll respond within one business day with pricing, lead times, and full datasheets.

Request a Quote
