All Products  /  Fans  /  DC Axial Fans  /  BDC12025P

Low Voltage · DC Axial
UL Recognized

BDC12025P

A low-voltage DC axial fan available in the variants listed below. Full datasheets, pricing, and lead times on request, delivered with Berring's quality control and logistics handled end to end.

Request a Quote PDFDatasheet ← All DC Fans
120 × 120 × 25.5Dimensions (mm)
45–86 CFMAirflow range
IP55 / IP56Protection
9Standard variants

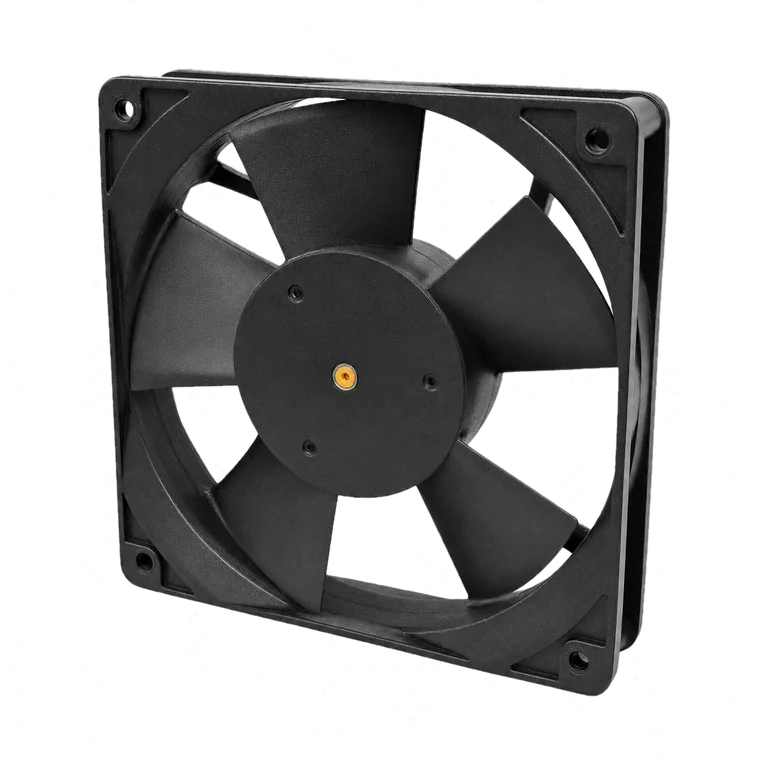

BDC12025P low-voltage DC axial fan
Variants Specifications Performance Curves Drawings & Docs Accessories
Performance Data

Model Variants

9 variants · tolerance ±10%

Every standard variant of the BDC12025P with rated voltage, speed, airflow, static pressure, and noise level. Select rows to include them in your quote request.

Model NoRated VDCRange VDCInput (W)Current (A)Speed (RPM)Airflow (CFM)m³/minStatic P. (in H₂O)(mm H₂O)Noise dB(A)PQULQuote
BDC12025P-12H128~13.85.40.452900862.40.246.142H✓
BDC12025P-12M128~13.84.00.3525007020.194.8335M✓
BDC12025P-12L128~142.50.202000451.30.153.8125L✓
BDC12025P-24H2414~265.50.232900862.40.246.142H✓
BDC12025P-24M2414~264.10.1725007020.194.8335M✓
BDC12025P-24L2414~27.62.40.102000451.30.153.8125L✓
BDC12025P-48H4822~554.50.092900862.40.246.142H✓
BDC12025P-48M4822~553.50.0725007020.194.8335M✓
BDC12025P-48L4822~562.90.062000451.30.153.8125L✓
  1. ** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing.
  2. Berring Industrial reserves the right to change data and improve electrical & mechanical design without notice.
  3. Data tolerance ±10%.
Technical Details

Specifications

Motor
Motor TypeBrushless DC motor, option(auto cutoff/auto restart)
Burnout ProtectionElectronically protected, polarity protected
IP ProtectionIP55 / IP56
Mechanical
FrameGlass fiber reinforced thermoplastic, rated UL94V-0(PT)
ImpellerGlass fiber reinforced plastic, rated UL94V-0
BearingBall bearing
RotationCCW when viewed from rotor
ConnectionLead wires or Terminals
Weight160g (0.353Lbs)
Electornical
Dielectric Strength500VAC/min. Max leakage 0.5mA
Speed ControlOption : PWM, SC & SV...
Signal OutputOption : FG, RD...
Environment
Operating Temp-20C~+65C
Storage Temp-20C~+75C (at 65%RH)
Life ExpectancyL10 60K hours at 35C, 50K hours at 55C
Measured P-Q

Performance Curves

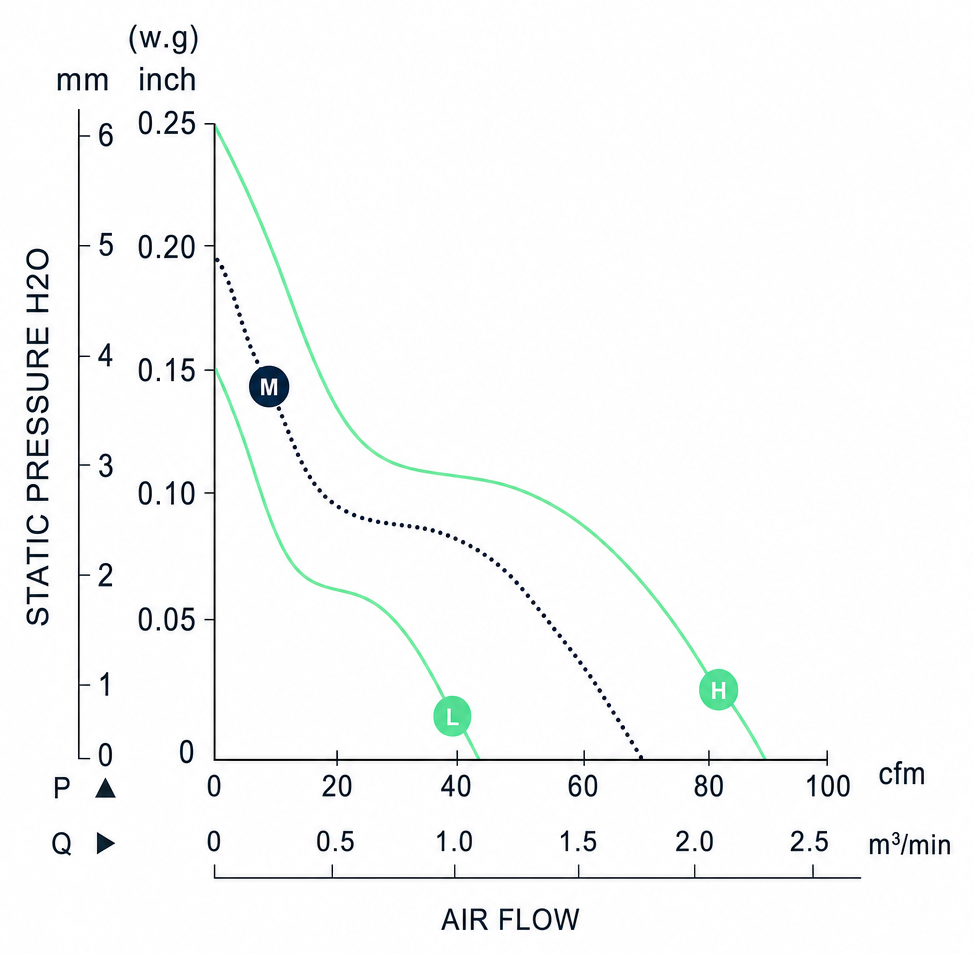

Measured P-Q performance curves for the BDC12025P

Manufacturer test data · tolerance ±10%. Certified curves available with the full datasheet.

Outline dimension drawing of the BDC12025P

Dimensions in mm (inches).

PDF

Datasheet

Full electrical & mechanical spec, all 9 variants.

CAD

STEP / DXF models

3D and 2D files for enclosure design, on request.

PQ

Performance data

Measured P-Q curves for every speed variant.

CoC

Traceability docs

Certificate of conformance ships with every order.
