BDC15051ABM

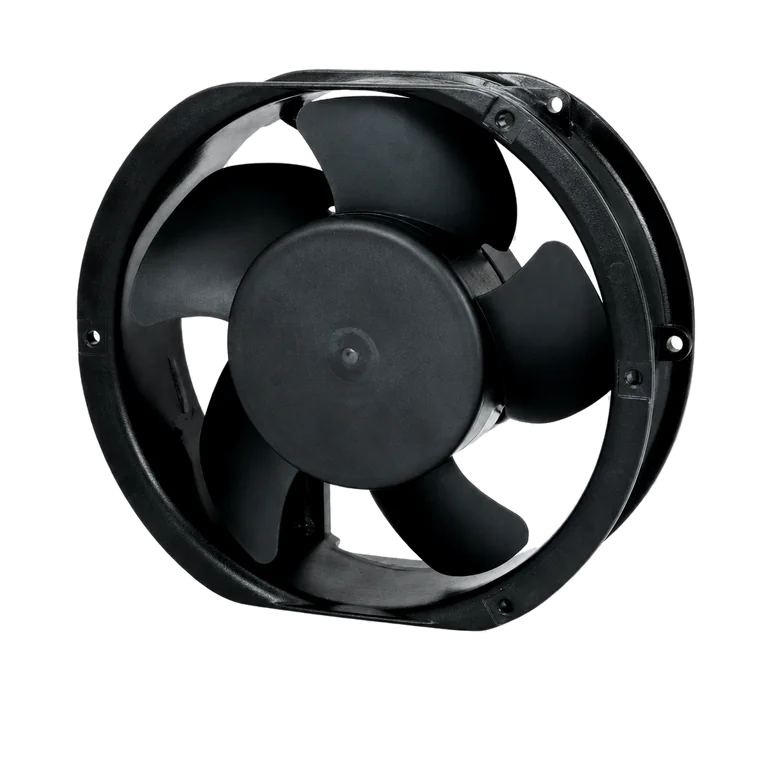

A low-voltage DC axial fan available in the variants listed below. Full datasheets, pricing, and lead times on request, delivered with Berring's quality control and logistics handled end to end.
/sd175sap-ms-photo.webp)
Model Variants
Every standard variant of the BDC15051ABM with rated voltage, speed, airflow, static pressure, and noise level. Select rows to include them in your quote request.
| Model No | Rated VDC | Range VDC | Input (W) | Current (A) | Speed (RPM) | Airflow (CFM) | m³/min | Static P. (in H₂O) | (mm H₂O) | Noise dB(A) | PQ | UL | Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BDC15051ABM-12H** | 12 | 8~13.8 | 23 | 1.9 | 4000 | 291 | 8.2 | 0.91 | 23.11 | 61.5 | 9 | ✓ | |
| BDC15051ABM-12M** | 12 | 8~13.8 | 13.2 (~19.2) | 1.1 (~1.6) | 3500 | 263 | 7.4 | 0.82 | 20.83 | 57 | 10 | ✓ | |
| BDC15051ABM-12L** | 12 | 8~13.8 | 5.5 | 0.45 | 2500 | 187 | 5.3 | 0.35 | 8.89 | 52 | 11 | ✓ | |
| BDC15051ABM-24EHH** | 24 | 14~26.4 | 110.4 | 4.6 | 7000 | 520 | 14.7 | 2.3 | 58.42 | 78 | 3 | ✓ | |
| BDC15051ABM-24EH** | 24 | 14~26.4 | 96 | 4.0 | 6500 | 475 | 13.5 | 2.14 | 54.36 | 73 | 4 | ✓ | |
| BDC15051ABM-24SHH** | 24 | 14~26.4 | 86.4 | 3.6 | 6000 | 440 | 12.5 | 1.82 | 46.23 | 72 | 5 | ✓ | |
| BDC15051ABM-24SH** | 24 | 15~27 | 63.6 | 2.65 | 5200 | 378 | 10.7 | 1.36 | 34.54 | 68 | 7 | ✓ | |
| BDC15051ABM-24HH** | 24 | 15~27 | 50.4 | 2.1 | 4400 | 323 | 9.1 | 1.06 | 26.92 | 63.5 | 8 | ✓ | |
| BDC15051ABM-24H** | 24 | 15~27.6 | 24 (~31.2) | 0.97 (~1.3) | 4000 | 291 | 8.2 | 0.91 | 23.11 | 61.5 | 9 | ✓ | |
| BDC15051ABM-24M** | 24 | 17~27.6 | 13 (~19.2) | 0.52 (~0.8) | 3500 | 263 | 7.4 | 0.82 | 20.83 | 57 | 10 | ✓ | |
| BDC15051ABM-24L** | 24 | 17~28 | 5 (~9.6) | 0.20 (~0.4) | 2500 | 187 | 5.3 | 0.35 | 8.89 | 52 | 11 | ✓ | |
| BDC15051ABM-48JHH** | 48 | 28~56 | 168 | 3.5 | 8000 | 610 | 17.3 | 3.1 | 78.74 | 83 | 1 | ✓ | |
| BDC15051ABM-48JH** | 48 | 28~56 | 129.6 (~168) | 2.7 (~3.5) | 7500 | 568 | 16.1 | 2.85 | 72.39 | 80 | 2 | ✓ | |
| BDC15051ABM-48EHH** | 48 | 28~56 | 120 | 2.5 | 6500 | 475 | 13.5 | 2.14 | 54.36 | 73 | 4 | ✓ | |
| BDC15051ABM-48EH** | 48 | 28~56 | 105.6 | 2.2 | 6000 | 440 | 12.5 | 1.82 | 46.23 | 72 | 5 | ✓ | |
| BDC15051ABM-48SHH** | 48 | 28~56 | 95.04 | 1.98 | 5500 | 400 | 11.3 | 1.55 | 39.37 | 70 | 6 | ✓ | |
| BDC15051ABM-48SH** | 48 | 28~56 | 62.4 | 1.3 | 5200 | 378 | 10.7 | 1.36 | 34.54 | 68 | 7 | ✓ | |
| BDC15051ABM-48HH** | 48 | 28~56 | 49.4 | 1.03 | 4400 | 323 | 9.1 | 1.06 | 26.92 | 63.5 | 8 | ✓ | |
| BDC15051ABM-48H** | 48 | 28~56 | 23.5 (~36) | 0.48 (~0.75) | 4000 | 291 | 8.2 | 0.91 | 23.11 | 61.5 | 9 | ✓ | |
| BDC15051ABM-48M** | 48 | 28~56 | 14.5 | 0.30 | 3500 | 263 | 7.4 | 0.82 | 20.83 | 57 | 10 | ✓ | |
| BDC15051ABM-48L** | 48 | 28~56 | 5.8 | 0.12 | 2500 | 187 | 5.3 | 0.35 | 8.89 | 52 | 11 | ✓ |
- ** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing.
- Berring Industrial reserves the right to change data and improve electrical & mechanical design without notice.
- Data tolerance ±10%.
Specifications

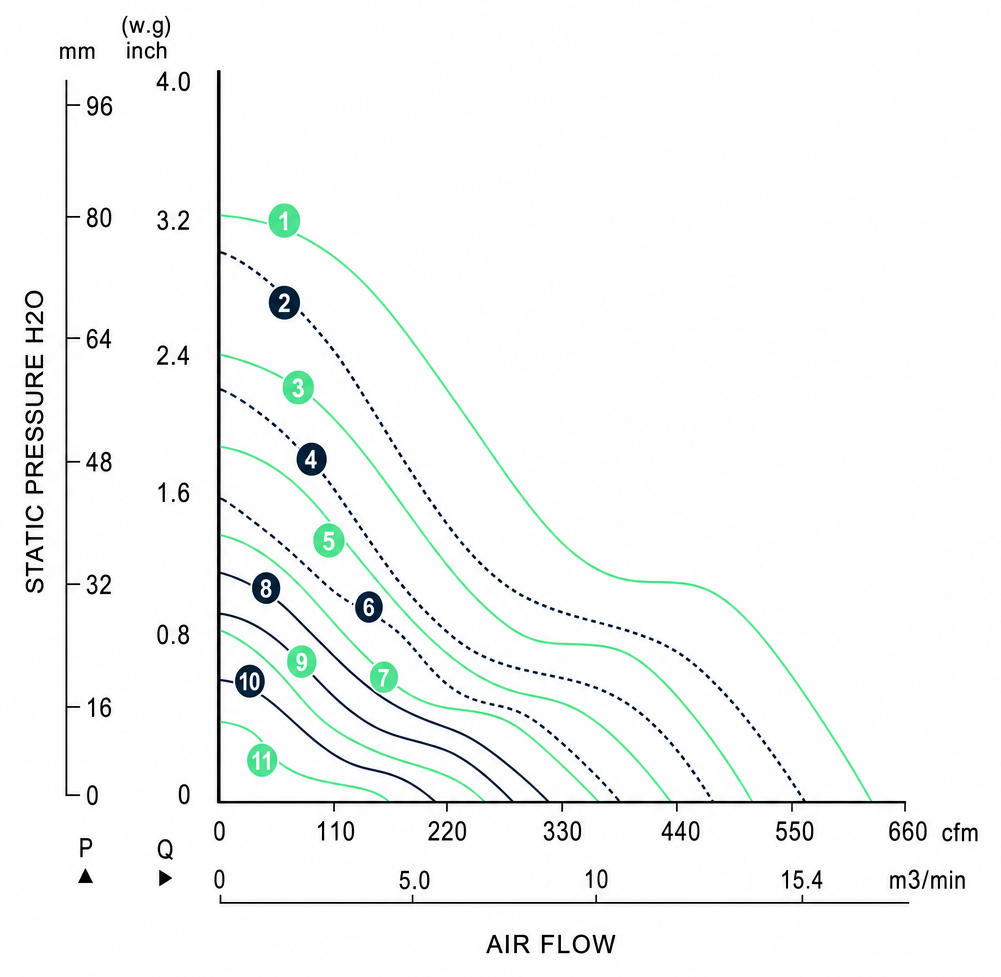

Performance Curves
/sd175sap-ms-pq.png)
Manufacturer test data · tolerance ±10%. Certified curves available with the full datasheet.
/sd175sap-ms-dimensions.png)
Dimensions in mm (inches).
Datasheet
Full electrical & mechanical spec, all 21 variants.
STEP / DXF models
3D and 2D files for enclosure design, on request.
Performance data
Measured P-Q curves for every speed variant.
Traceability docs
Certificate of conformance ships with every order.
