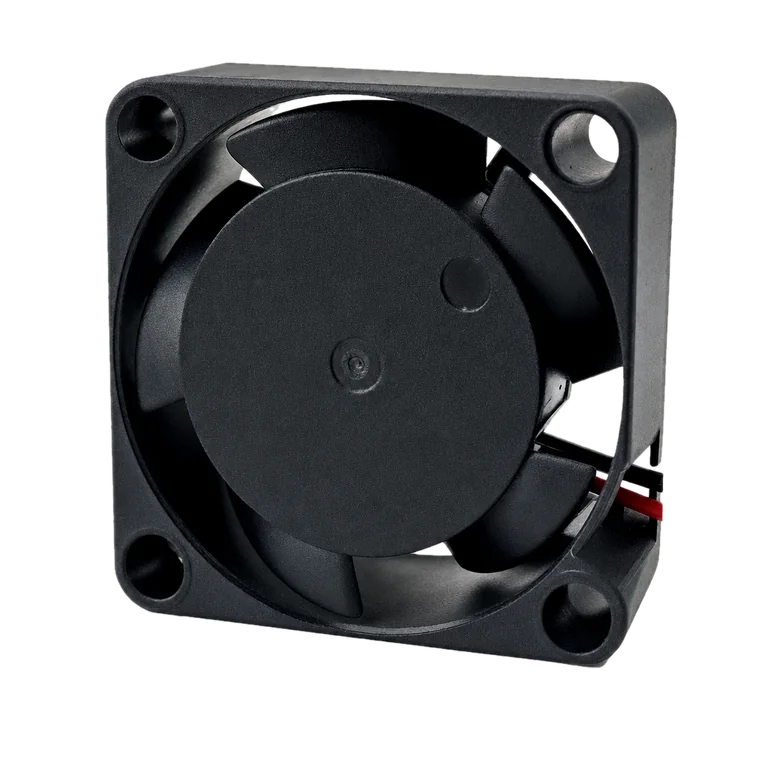

BDC2510P

Name: BDC2510P
Brand: Berring Industrial

A low-voltage DC axial fan available in the variants listed below. Full datasheets, pricing, and lead times on request, delivered with Berring's quality control and logistics handled end to end.

Request a Quote PDFDatasheet ← All DC Fans

25 × 25 × 10Dimensions (mm)

1.5–3.8 CFMAirflow range

IP55 / IP67Protection

14Standard variants

Variants Specifications Performance Curves Drawings & Docs Accessories

Performance Data

Model Variants

14 variants · tolerance ±10%

Every standard variant of the BDC2510P with rated voltage, speed, airflow, static pressure, and noise level. Select rows to include them in your quote request.

Model No	Rated VDC	Range VDC	Input (W)	Current (A)	Speed (RPM)	Airflow (CFM)	m³/min	Static P. (in H₂O)	(mm H₂O)	Noise dB(A)	PQ	UL
BDC2510P-05HHH (SH)	5	4.5~5.5	1.1	0.22	14000	3.8	0.1	0.29	7.37	29	1	✓
BDC2510P-05HHH	5	4~7	1.1	0.22	12000	2.8	0.1	0.27	6.86	28	2	✓
BDC2510P-05HH	5	4~7	0.75	0.15	9500	2.0	0.1	0.2	5.08	24	3	✓
BDC2510P-05H	5	4~7	0.45	0.09	6500	1.5	0	0.16	4.06	18	4	✓
BDC2510P-05M	5	4~7	0.35	0.07	6000	1.4	0	0.15	3.81	17	5	✓
BDC2510P-12SH	12	7~14	1.44	0.12	14000	3.8	0.1	0.29	7.37	29	1	✓
BDC2510P-12HHH	12	7~14	1.32	0.11	13000	3.3	0.1	0.28	7.11	29	1	✓
BDC2510P-12HH	12	7~14	1.2	0.1	12500	3.0	0.1	0.27	6.86	28	2	✓
BDC2510P-12H	12	7~14	0.72 (~0.96)	0.06 (~0.08)	12000	2.8	0.1	0.27	6.86	28	2	✓
BDC2510P-12M	12	7~14	0.6	0.05	9500	2.0	0.1	0.2	5.08	24	3	✓
BDC2510P-12L	12	7~14	0.48	0.04	6500	1.5	0	0.16	4.06	18	4	✓
BDC2510P-24H	24	14~27.6	1.56	0.065	12000	2.8	0.1	0.27	6.86	28	2	✓
BDC2510P-24M	24	14~27.6	0.96	0.04	9500	2.0	0.1	0.2	5.08	24	3	✓
BDC2510P-24L	24	14~28	0.72	0.03	6500	1.5	0	0.16	4.06	18	4	✓

** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing.
Speed RPM tolerance ±20%.
Berring Industrial reserves the right to change data and improve electrical & mechanical design without notice.
Data tolerance ±10%.

Technical Details

Specifications

Motor

Motor TypeBrushless DC motor, option(auto cutoff/auto restart)

Burnout ProtectionElectronically protected, polarity protected

IP ProtectionIP55 / IP67

Mechanical

FrameGlass fiber reinforced thermoplastic, rated UL94V-0

ImpellerGlass fiber reinforced plastic, rated UL94V-0

BearingBall bearing

RotationCCW when viewed from rotor

ConnectionLead wires or Terminals

Weight8.0g (0.017Lbs)

Electornical

Dielectric Strength500VAC/min. Max leakage 0.5mA

Speed ControlOption : PWM, SC & SV...

Signal OutputOption : FG, RD...

Environment

Operating Temp-20C~+65C

Storage Temp-20C~+75C (at 65%RH)

Life ExpectancyL10 (B:70K hours at 40C / Y:50K hours at 40C)

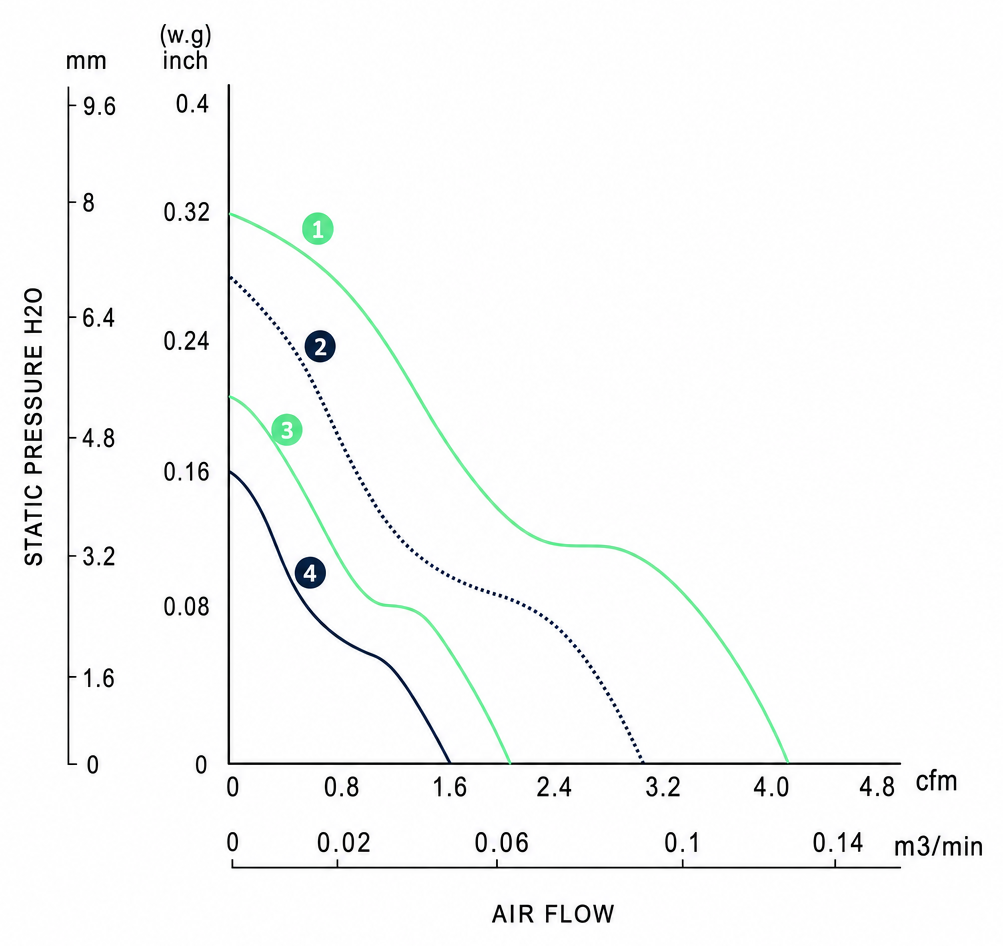

Measured P-Q

Performance Curves

Manufacturer test data · tolerance ±10%. Certified curves available with the full datasheet.

Outline dimension drawing of the BDC2510P

Dimensions in mm (inches).
