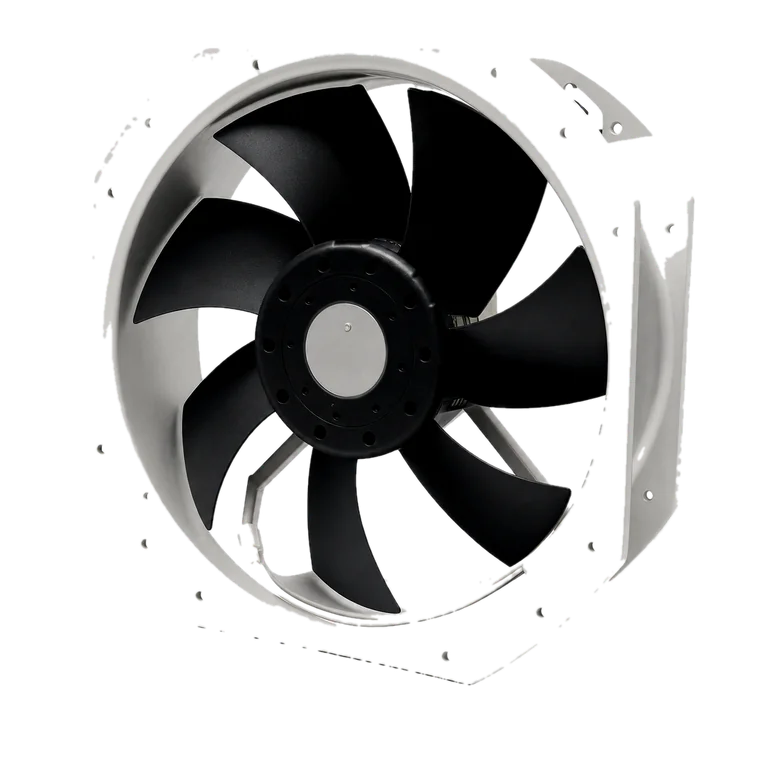

BDC28089A

Name: BDC28089A
Brand: Berring Industrial

A low-voltage DC axial fan available in the variants listed below. Full datasheets, pricing, and lead times on request, delivered with Berring's quality control and logistics handled end to end.

Request a Quote PDFDatasheet ← All DC Fans

280 × 280 × 88.9Dimensions (mm)

722–1180 CFMAirflow range

IP55 / IP67Protection

8Standard variants

Variants Specifications Performance Curves Drawings & Docs Accessories

Performance Data

Model Variants

8 variants · tolerance ±10%

Every standard variant of the BDC28089A with rated voltage, speed, airflow, static pressure, and noise level. Select rows to include them in your quote request.

Model No	Rated VDC	Range VDC	Input (W)	Current (A)	Speed (RPM)	Airflow (CFM)	m³/min	Static P. (in H₂O)	(mm H₂O)	Noise dB(A)	PQ	UL
BDC28089A-12M**	12	11~13.5	90	7.5	2100	1011	28.6	0.63	16	63	M	—
BDC28089A-12L**	12	11~13.5	50	4.2	1800	867	24.6	0.55	13.97	59	L	—
BDC28089A-24H**	24	18~27.6	104.4	4.35	2450	1180	33.4	0.90	22.86	79	H	✓
BDC28089A-24M**	24	18~27.6	58.8 (~72)	2.45 (~3.0)	2200	1060	30	0.65	16.51	65	M	✓
BDC28089A-24L**	24	18~27.6	26.4(~52.8)	1.1 (~2.2)	1800	867	24.6	0.55	13.97	59	L	✓
BDC28089A-48H**	48	24~55	105.6	2.2	2450	1180	33.4	0.90	22.86	79	H	✓
BDC28089A-48M**	48	24~55	57.6	1.2	2200	1060	30	0.65	16.51	65	M	✓
BDC28089A-48L**	48	24~55	26.4	0.55	1500	722	20.4	0.50	12.7	59	L	✓

** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing.
Berring Industrial reserves the right to change data and improve electrical & mechanical design without notice.
Data tolerance ±10%.

Technical Details

Specifications

Motor

Motor TypeBrushless DC Motor, option(auto cutoff/auto restart)

Burnout ProtectionElectronically protected, polarity protected

IP ProtectionIP55 / IP67

Mechanical

FrameAluminum die-cast, natural finish

ImpellerGlass fiber reinforced plastic, rated UL94V-0

BearingBall bearing

RotationCCW when viewed from rotor

ConnectionLead wires or Terminals

Weight2,800g (6.2 Lbs)

Electornical

Dielectric Strength500VAC/min. Max leakage 0.5mA

Speed ControlOption : PWM, SC & SV...

Signal OutputOption : FG, RD...

Environment

Operating Temp-20C~+65C

Storage Temp-20C~+75C (at 65%RH)

Life ExpectancyL10 85K hours at 35C, 40K hours at 60C

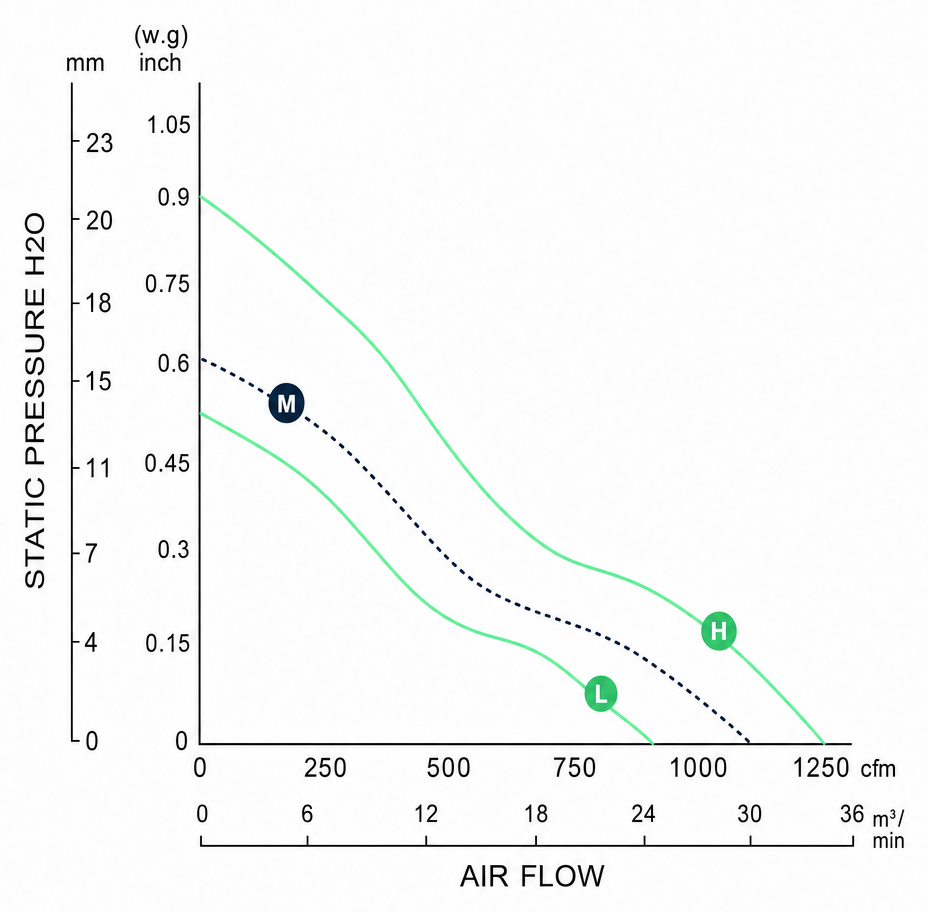

Measured P-Q

Performance Curves

Manufacturer test data · tolerance ±10%. Certified curves available with the full datasheet.

Outline dimension drawing of the BDC28089A

Dimensions in mm (inches).

PDF

Datasheet

Full electrical & mechanical spec, all 8 variants.

CAD

STEP / DXF models

3D and 2D files for enclosure design, on request.

Performance data

Measured P-Q curves for every speed variant.

CoC

Traceability docs

Certificate of conformance ships with every order.
