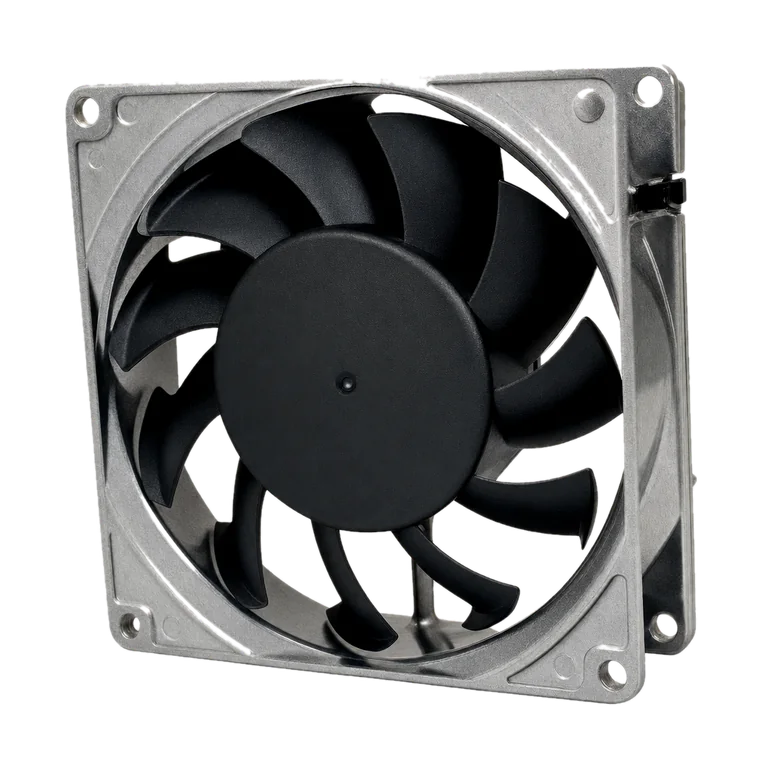

BDC9225A

Name: BDC9225A
Brand: Berring Industrial

A low-voltage DC axial fan available in the variants listed below. Full datasheets, pricing, and lead times on request, delivered with Berring's quality control and logistics handled end to end.

Request a Quote PDFDatasheet ← All DC Fans

92 × 92 × 25Dimensions (mm)

61–92 CFMAirflow range

IP55 / IP56Protection

12Standard variants

Variants Specifications Performance Curves Drawings & Docs Accessories

Performance Data

Model Variants

12 variants · tolerance ±10%

Every standard variant of the BDC9225A with rated voltage, speed, airflow, static pressure, and noise level. Select rows to include them in your quote request.

Model No	Rated VDC	Range VDC	Input (W)	Current (A)	Speed (RPM)	Airflow (CFM)	m³/min	Static P. (in H₂O)	(mm H₂O)	Noise dB(A)	PQ	UL
BDC9225A-12H (HH)	12	7~13.6	3.0 (~10)	0.29 (~0.85)	5300	92	2.6	0.53	13.46	53	1	✓
BDC9225A-12H	12	7~13.6	3.0 (~10.8)	0.29 (~0.9)	4500	78	2.2	0.48	12.19	48	2	✓
BDC9225A-12M	12	7~13.6	2.1 (~6.0)	0.20 (~0.5)	4000	69	2	0.42	10.67	45	3	✓
BDC9225A-12L	12	7~13.6	1.4 (~3.6)	0.12 (~0.3)	3500	61	1.7	0.36	9.14	42	4	✓
BDC9225A-24H (HH)	24	12~27	3.5 (~10)	0.18 (~0.42)	5300	92	2.6	0.53	13.46	53	1	✓
BDC9225A-24H	24	12~27	3.5 (~9.0)	0.18 (~0.38)	4500	78	2.2	0.48	12.19	48	2	✓
BDC9225A-24M	24	12~27	2.8 (~6.0)	0.12 (~0.25)	4000	69	2	0.42	10.67	45	3	✓
BDC9225A-24L	24	12~27	2.4 (~3.6)	0.10 (~0.15)	3500	61	1.7	0.36	9.14	42	4	✓
BDC9225A-48H (HH)	48	28~55	4.3 (~10)	0.09 (~0.21)	5300	92	2.6	0.53	13.46	53	1	✓
BDC9225A-48H	48	28~55	4.3 (~9.0)	0.09 (~0.19)	4500	78	2.2	0.48	12.19	48	2	✓
BDC9225A-48M	48	32~56	2.4 (~6.0)	0.05 (~0.13)	4000	69	2	0.42	10.67	45	3	✓
BDC9225A-48L	48	32~56	1.9 (~3.6)	0.04 (~0.08)	3500	61	1.7	0.36	9.14	42	4	✓

** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing.
Berring Industrial reserves the right to change data and improve electrical & mechanical design without notice.
Data tolerance ±10%.

Technical Details

Specifications

Motor

Motor TypeBrushless DC motor, option(auto cutoff/auto restart)

Burnout ProtectionElectronically protected, polarity protected

IP ProtectionIP55 / IP56

Mechanical

FrameAluminum die-cast, natural finish

ImpellerGrass fiber reinforced plastic, UL94V-0

BearingBall bearing

RotationCCW when viewed from rotor

ConnectionLead wires or Terminals

Weight100g (0.22Lbs)

Electornical

Dielectric Strength500VAC/min. Max leakage 0.5mA

Speed ControlOption : PWM, SC & SV...

Signal OutputOption : FG, RD...

Environment

Operating Temp-20C~+65C

Storage Temp-20C~+75C (at 65%RH)

Life ExpectancyL10 90K hours at 35C, 40K hours at 65C

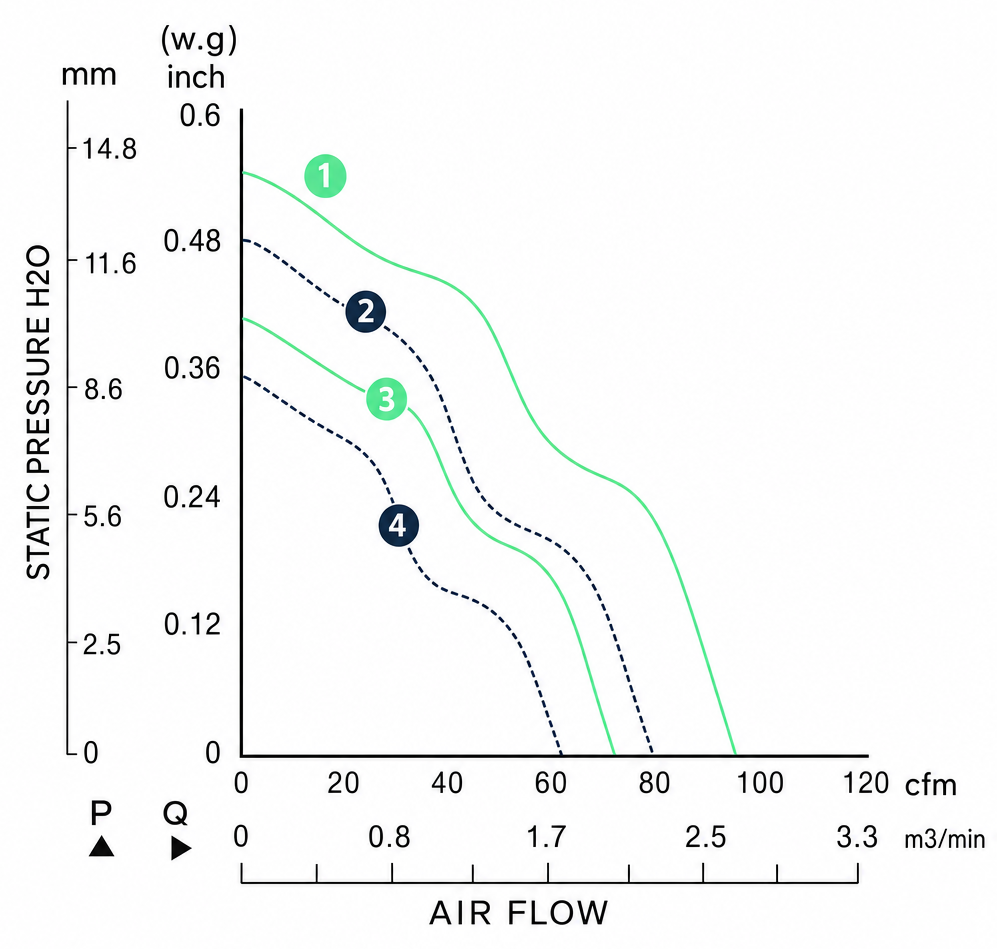

Measured P-Q

Performance Curves

Manufacturer test data · tolerance ±10%. Certified curves available with the full datasheet.

Outline dimension drawing of the BDC9225A

Dimensions in mm (inches).

PDF

Datasheet

Full electrical & mechanical spec, all 12 variants.

CAD

STEP / DXF models

3D and 2D files for enclosure design, on request.

Performance data

Measured P-Q curves for every speed variant.

CoC

Traceability docs

Certificate of conformance ships with every order.
