BPL-515D

A NEMA 5-15P North American attachment plug, molded to order as complete cord sets in the constructions listed below, with custom lengths, jacket colors, and opposite-end terminations to your specification.

Request a Quote PDFDatasheet ← All Straight-Blade Plugs
NEMA 5-15PConfiguration
15A / 125VRating
UL · cULApprovals
4Cord constructions

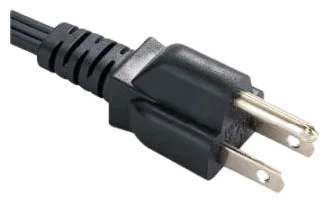

BPL-515D NEMA 5-15P attachment plug
Cord Constructions Specifications Drawings & Docs Related Models
Approved Constructions

Cord Constructions

4 constructions

Every cord type and gauge this plug is approved to be molded onto. Select rows to include them in your quote request.

Cord TypeAWG / ConductorsULcULQuote
SPT-218AWG / 3✓✓
HPN18AWG / 3✓✓
SPT-216AWG / 3✓✓
HPN16AWG / 3✓✓
Molded to order, with custom lengths, jacket colors, strip and termination options available.
Technical Details

Specifications

Electrical
ConfigurationNEMA 5-15P
RegionNorth America
Rating15A / 125V
ApprovalsUL 817 · cUL / CSA C22.2
Ordering
Cord constructions4
LengthsCustom, to your spec
Opposite endStripped, terminated, or connector

Full datasheets available on request.

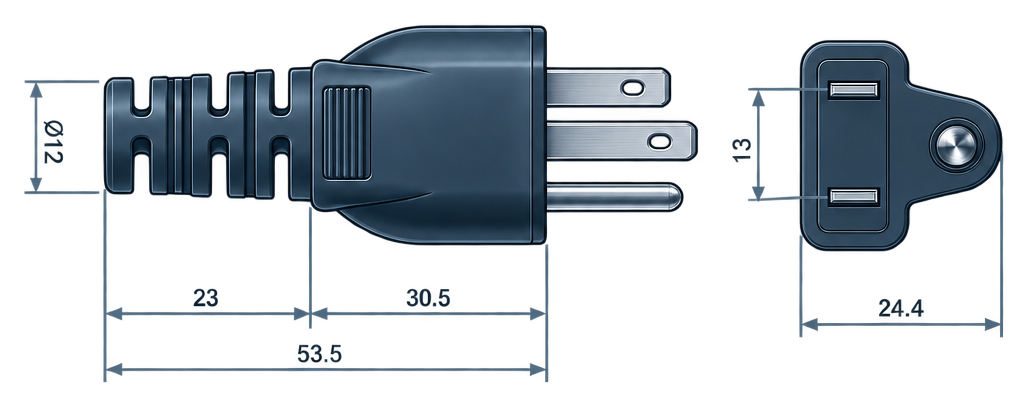

Outline Drawing

Dimensions

Outline dimension drawing of the BPL-515D

Dimensions in mm.

PDF

Datasheet

Outline drawing, ratings, and approved constructions.

UL

Certified cord sets

UL 817 and CSA C22.2 cord-set approvals.

CUT

Custom assembly

Lengths, colors, and terminations built to your drawing.

CoC

Traceability docs

Certificate of conformance ships with every order.
