BAC12038A

A line-voltage AC axial fan available in the variants listed below. Full datasheets, pricing, and lead times on request, delivered with Berring's quality control and logistics handled end to end.

Request a Quote PDFDatasheet ← All AC Fans
120 × 120 × 38.5Dimensions (mm)
105 CFMMax airflow
IP44Protection
14Standard variants

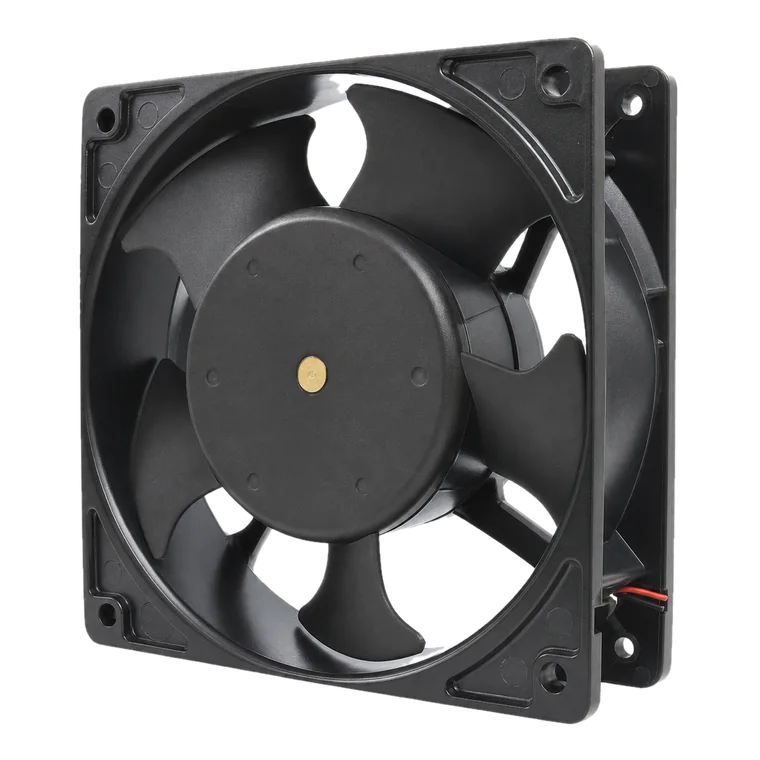

BAC12038A line-voltage AC axial fan
Variants Specifications Performance Curves Drawings & Docs Accessories
Performance Data

Model Variants

14 variants · tolerance ±10%

Every standard variant of the BAC12038A with rated voltage, speed, airflow, static pressure, and noise level. Select rows to include them in your quote request.

Model NoRated VACRange VACFreq (Hz)Input (W)Speed (RPM)Airflow (CFM)m³/minStatic P. (in H₂O)(mm H₂O)Noise dB(A)PQULQuote
BAC12038A-11-1**115100~12050/6017/15 (~21)2650/300090/1052.5/30.29/0.317.37/7.87422/1✓
BAC12038A-11-2**115100~12050/6013/112400/235077/712.2/20.21/0.185.33/4.57354/3✓
BAC12038A-11-3**115100~12050/6010/82100/170066/531.9/1.50.17/0.134.32/3.3276/5✓
BAC12038A-22-1**230200~24050/6017/15 (~21)2650/300090/1052.5/30.29/0.317.37/7.87422/1✓
BAC12038A-22-2**230200~24050/6013/112400/235077/712.2/20.21/0.185.33/4.57354/3✓
BAC12038A-22-3**230200~24050/6010/82000/150062/471.8/1.30.17/0.134.32/3.3266/5✓
BAC12038A-24-1**240240~26050/6017/15 (~21)2650/300090/1052.5/30.29/0.317.37/7.87422/1✓
BAC12038A-24-2**240240~26050/6013/112350/220075/712.1/20.21/0.185.33/4.57354/3✓
BAC12038A-24-3**240240~26050/6010/81900/120062/431.8/1.20.17/0.134.32/3.3266/5✓
BAC12038A-4-1**2424~2850/6017/15 (~21)2600/295090/1032.5/2.90.29/0.317.37/7.87412/1✓
BAC12038A-38-1**380380~42050/6017/15 (~21)2600/295090/1032.5/2.90.29/0.317.37/7.87412/1✓
BAC12038A-44-1**440440~48050/6017/15 (~21)2600/295090/1032.5/2.90.29/0.317.37/7.87412/1✓
BAC12038A-11/22-1** dual voltage115/230100~120/200~24050/6017/15 (~21)2600/300090/1052.5/30.29/0.317.37/7.87422/1✓
BAC12038A-11/22-3** daul voltage115/230100~120/200~24050/6010/82000/140066/531.9/1.50.17/0.134.32/3.3276/5✓
  1. ** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing.
  2. 100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request.
  3. Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request.
  4. Berring Industrial reserves the right to change data and improve electrical or mechanical design without notice.
  5. Data tolerance ±10%.
Technical Details

Specifications

Motor
Motor TypeShaded pole induction, inner rotor
Impedance Protected✓
IP ProtectionIP44
Mechanical
FrameAluminum die-cast, black finish
ImpellerGlass fiber reinforced plastic, rated UL94V-0
BearingBall bearing or sleeve bearing
Measured P-Q

Performance Curves

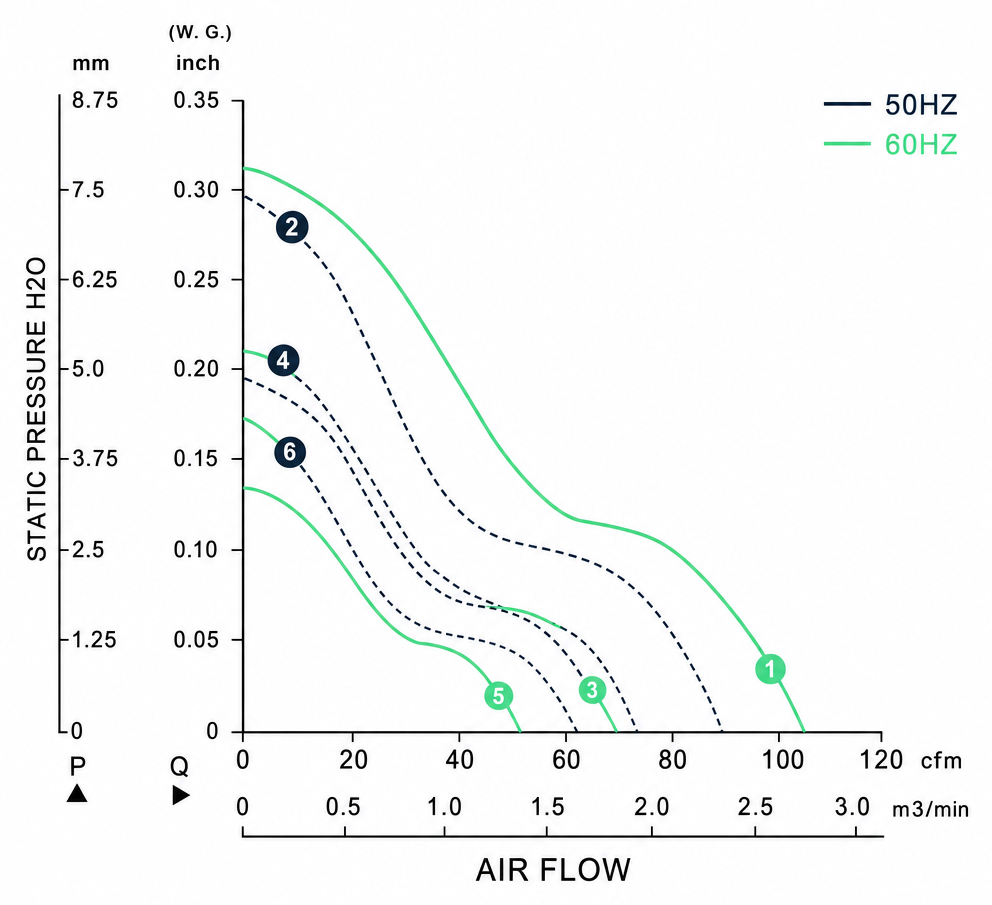

Measured P-Q performance curves for the BAC12038A

Manufacturer test data · tolerance ±10%. Certified curves available with the full datasheet.

Outline dimension drawing of the BAC12038A

Dimensions in mm (inches).

PDF

Datasheet

Full electrical & mechanical spec, all 14 variants.

CAD

STEP / DXF models

3D and 2D files for enclosure design, on request.

PQ

Performance data

Measured P-Q curves for every speed variant.

CoC

Traceability docs

Certificate of conformance ships with every order.
