All Products / Fans / AC Axial Fans / BAC12038AM

Line Voltage · AC Axial

UL Recognized

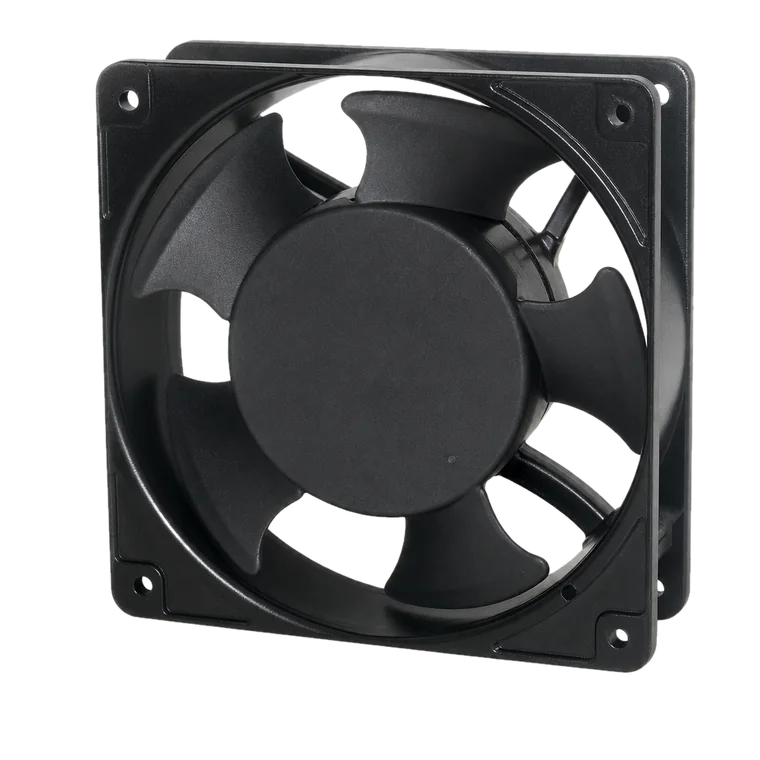

BAC12038AM

Name: BAC12038AM
Brand: Berring Industrial

A line-voltage AC axial fan available in the variants listed below. Full datasheets, pricing, and lead times on request, delivered with Berring's quality control and logistics handled end to end.

Request a Quote PDFDatasheet ← All AC Fans

120 × 120 × 38.5Dimensions (mm)

110 CFMMax airflow

IP44Protection

6Standard variants

Variants Specifications Performance Curves Drawings & Docs Accessories

Performance Data

Model Variants

6 variants · tolerance ±10%

Every standard variant of the BAC12038AM with rated voltage, speed, airflow, static pressure, and noise level. Select rows to include them in your quote request.

Model No	Rated VAC	Range VAC	Freq (Hz)	Input (W)	Speed (RPM)	Airflow (CFM)	m³/min	Static P. (in H₂O)	(mm H₂O)	Noise dB(A)	PQ	UL
BAC12038AM-11-1**	115	100~120	50/60	17/15 (~21)	2700/3000	95/110	2.7/3.1	0.30/0.33	7.62/8.38	42/45	2/1	✓
BAC12038AM-11-2**	115	100~120	50/60	13/11	2400/2300	78/76	2.2/2.2	0.25/0.19	6.35/4.83	35/37	4/3	✓
BAC12038AM-11-3**	115	100~120	50/60	10/8	2100/1700	68/56	1.9/1.6	0.18/0.15	4.57/3.81	27/25	6/5	✓
BAC12038AM-22-1**	230	200~240	50/60	17/15 (~21)	2700/3000	95/110	2.7/3.1	0.30/0.33	7.62/8.38	42/45	2/1	✓
BAC12038AM-22-2**	230	200~240	50/60	13/11	2400/2300	78/76	2.2/2.2	0.23/0.18	5.84/4.57	35/37	4/3	✓
BAC12038AM-22-3**	230	200~240	50/60	10/8	2100/1700	68/56	1.9/1.6	0.18/0.15	4.57/3.81	27/25	6/5	✓

** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing.
100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480V... 50/60Hz, & dual voltage version available on request.
Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request.
Berring Industrial reserves the right to change data and improve electrical or mechanical design without notice.
Data tolerance ±10%.

Technical Details

Specifications

Motor

Motor TypeShaded pole induction, inner rotor

Impedance Protected✓

IP ProtectionIP44

Mechanical

FrameAluminum die-cast, black finish

ImpellerGlass fiber reinforced plastic, rated UL94V-0

BearingBall bearing or sleeve bearing

RotationCCW when viewed from rotor

ConnectionLead wires or Terminals

Weight530g (1.16Lbs)

Electronical

Dielectric Strength1,500VAC/min, 0.5mA, 50/60 Hz

Insulation ResistanceOver 100MΩ at DC 500V

Environment

Operating Tempball bearing (-20C~+70C), sleeve (-10~+40C)

Storage Temp-40C~+80C (at 65%RH)

Life ExpectancyBall bearing 80K hours at 45C, 50K hours at 60C, Sleeve 50K hours at 40C

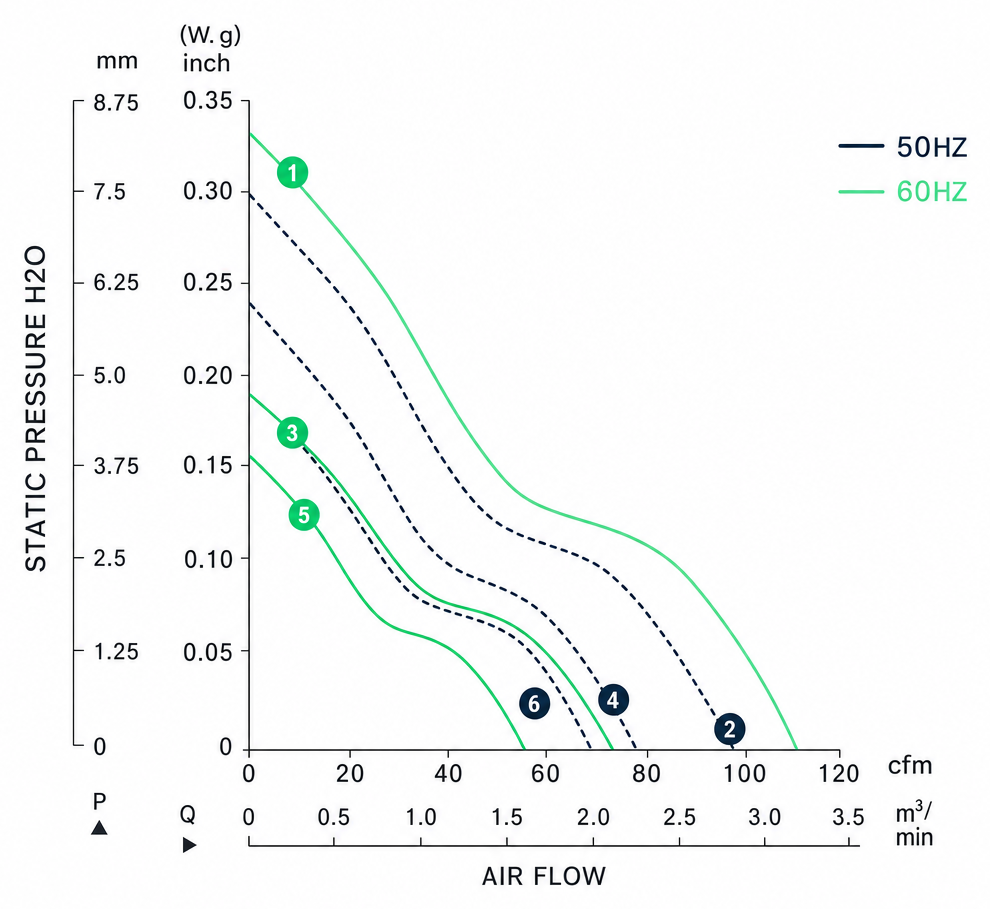

Measured P-Q

Performance Curves

Manufacturer test data · tolerance ±10%. Certified curves available with the full datasheet.

Outline dimension drawing of the BAC12038AM

Dimensions in mm (inches).

PDF

Datasheet

Full electrical & mechanical spec, all 6 variants.

CAD

STEP / DXF models

3D and 2D files for enclosure design, on request.

Performance data

Measured P-Q curves for every speed variant.

CoC

Traceability docs

Certificate of conformance ships with every order.
