All Products / Fans / AC Axial Fans / BAC17255A
BAC17255A

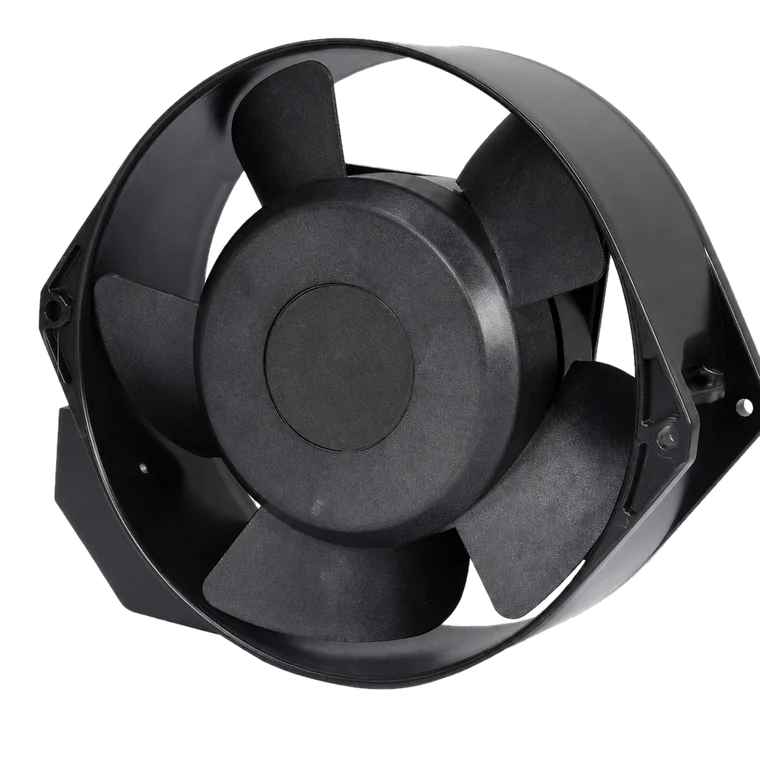

A line-voltage AC axial fan available in the variants listed below. Full datasheets, pricing, and lead times on request, delivered with Berring's quality control and logistics handled end to end.
Model Variants
Every standard variant of the BAC17255A with rated voltage, speed, airflow, static pressure, and noise level. Select rows to include them in your quote request.
| Model No | Rated VAC | Range VAC | Freq (Hz) | Input (W) | Speed (RPM) | Airflow (CFM) | m³/min | Static P. (in H₂O) | (mm H₂O) | Noise dB(A) | PQ | UL | Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BAC17255A-11-1** | 115 | 100~120 | 50/60 | 26/35 | 2680/3200 | 193/230 | 5.5/6.5 | 0.55/0.68 | 13.97/17.27 | 52 | 2/1 | ✓ | |
| BAC17255A-11-2** | 115 | 100~120 | 50/60 | 22/20 | 2400/2500 | 173/180 | 4.9/5.1 | 0.49/0.52 | 12.45/13.21 | 43 | 4/3 | ✓ | |
| BAC17255A-11-3** | 115 | 100~120 | 50/60 | 18/16 | 1450/1680 | 105/122 | 3/3.5 | 0.32/0.37 | 8.13/9.4 | 32 | 6/5 | ✓ | |
| BAC17255A-11-1/2**dual speed (-1 High, -2 Medium) | 115 | 100~120 | 50/60 | 26/35 22/20 | 2680/3200 2400/2500 | 193/230 173/180 | 5.5/6.5 4.9/5.1 | 0.55/0.68 0.49/0.52 | 13.97/17.27 12.45/13.21 | 52 43 | 2/1 4/3 | ✓ | |
| BAC17255A-11-1/3**dual speed (-1 High, -3 Low) | 115 | 100~120 | 50/60 | 26/35 18/16 | 2650/3200 1450/1680 | 193/230 105/122 | 5.5/6.5 3/3.5 | 0.55/0.68 0.32/0.37 | 13.97/17.27 8.13/9.4 | 51 32 | 2/1 6/5 | ✓ | |
| BAC17255A-22-1** | 230 | 200~240 | 50/60 | 26/35 | 2680/3200 | 193/230 | 5.5/6.5 | 0.55/0.68 | 13.97/17.27 | 52 | 2/1 | ✓ | |
| BAC17255A-22-2** | 230 | 200~240 | 50/60 | 22/20 | 2400/2500 | 173/180 | 4.9/5.1 | 0.49/0.52 | 12.45/13.21 | 43 | 4/3 | ✓ | |
| BAC17255A-22-3** | 230 | 200~240 | 50/60 | 18/16 | 1450/1680 | 105/122 | 3/3.5 | 0.32/0.37 | 8.13/9.4 | 32 | 6/5 | ✓ | |
| BAC17255A-22-1/2**dual speed (-1 High, -2 Medium) | 230 | 200~240 | 50/60 | 26/35 22/20 | 2680/3200 2400/2500 | 193/230 173/180 | 5.5/6.5 4.9/5.1 | 0.49/0.52 0.49/0.52 | 12.45/13.21 12.45/13.21 | 52 43 | 2/1 4/3 | ✓ | |
| BAC17255A-22-1/3**dual speed (-1 High, -3 Low) | 230 | 200~240 | 50/60 | 26/35 18/16 | 2650/3200 1450/1680 | 193/230 105/122 | 5.5/6.5 3/3.5 | 0.55/0.68 0.32/0.37 | 13.97/17.27 8.13/9.4 | 52 32 | 2/1 6/5 | ✓ | |
| BAC17255A-11/22-1**dual volts dual voltage115/230 | 115/230 | 100~120/200~240 | 50/60 | 26/35 | 2700/3200 2700/3200 | 185/215 | 5.2/6.1 | 0.55/0.68 | 13.97/17.27 | 52 | 2/1 | ✓ |
- ** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing.
- 100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480V... 50/60Hz, & dual voltage version available on request.
- Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request.
- Berring Industrial reserves the right to change data and improve electrical or mechanical design without notice.
- Data tolerance ±10%.
Specifications

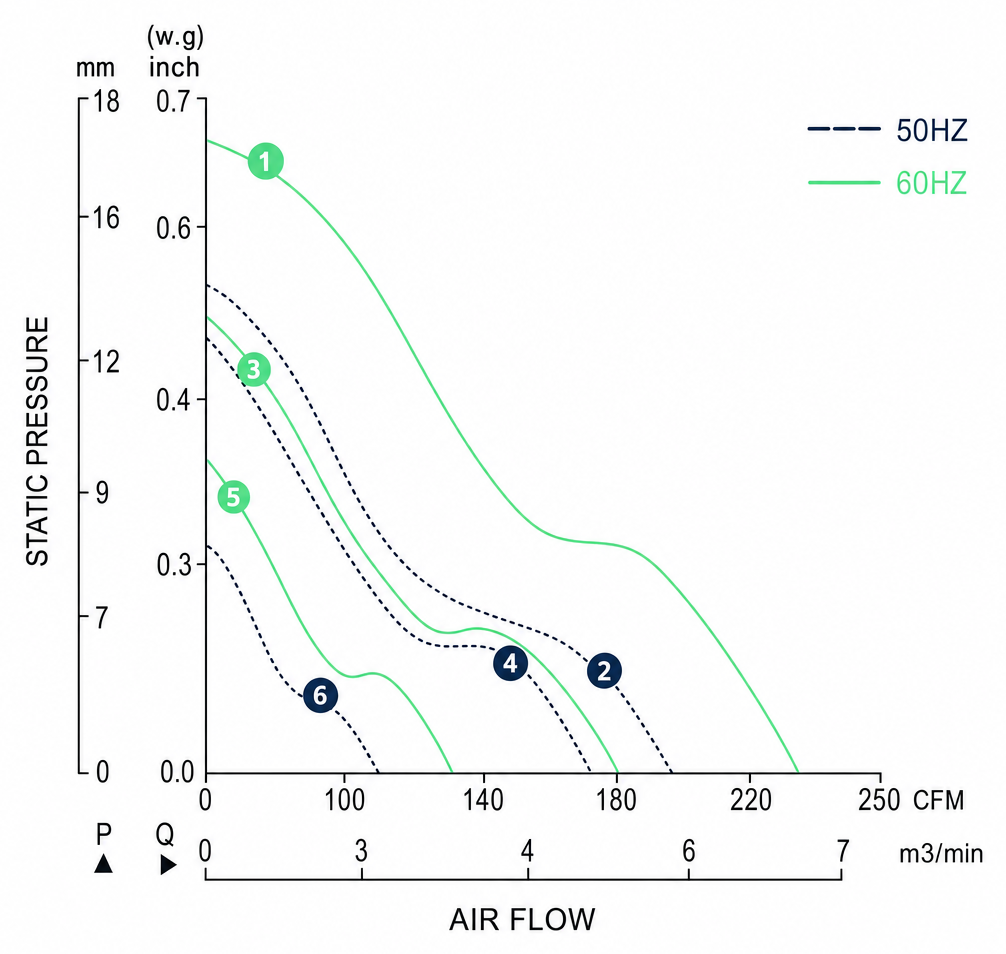

Performance Curves
Manufacturer test data · tolerance ±10%. Certified curves available with the full datasheet.
Dimensions in mm (inches).
Datasheet
Full electrical & mechanical spec, all 11 variants.
STEP / DXF models
3D and 2D files for enclosure design, on request.
Performance data
Measured P-Q curves for every speed variant.
Traceability docs
Certificate of conformance ships with every order.
