BAC17255AH

A line-voltage AC axial fan available in the variants listed below. Full datasheets, pricing, and lead times on request, delivered with Berring's quality control and logistics handled end to end.

Request a Quote PDFDatasheet ← All AC Fans
150 × 172 × 55Dimensions (mm)
265 CFMMax airflow
IP44Protection
7Standard variants

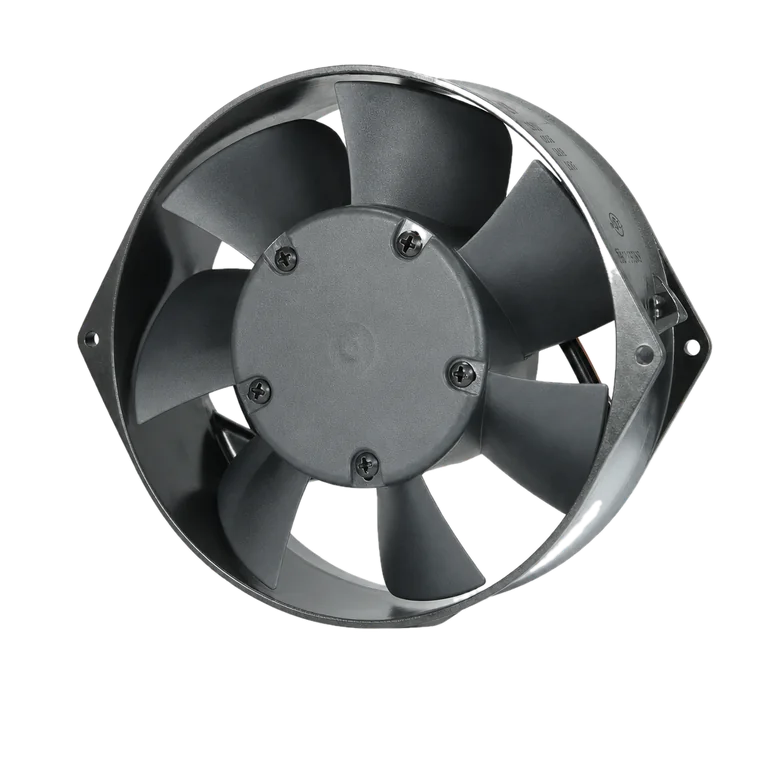

BAC17255AH line-voltage AC axial fan
Variants Specifications Performance Curves Drawings & Docs Accessories
Performance Data

Model Variants

7 variants · tolerance ±10%

Every standard variant of the BAC17255AH with rated voltage, speed, airflow, static pressure, and noise level. Select rows to include them in your quote request.

Model NoRated VACRange VACFreq (Hz)Input (W)Speed (RPM)Airflow (CFM)m³/minStatic P. (in H₂O)(mm H₂O)Noise dB(A)PQULQuote
BAC17255AH-11-1**115100~12050/6026/35 (~42)2800/3250220/2656.2/7.50.55/0.6813.97/17.2760/622/1✓
BAC17255AH-11-2**115100~12050/6022/202400/2700190/2205.4/6.20.46/0.5611.68/14.2251/554/3✓
BAC17255AH-22-1**230200~24050/6026/35 (~42)2800/3250220/2656.2/7.50.55/0.6813.97/17.2760/622/1✓
BAC17255AH-22-2**230200~24050/6022/202400/2700190/2205.4/6.20.46/0.5611.68/14.2251/554/3✓
BAC17255AH-38-1**380380~42050/6026/35 (~42)2800/3200220/2606.2/7.40.55/0.6513.97/16.5160/622/1✓
BAC17255AH-44-1**440440~48050/6026/35 (~42)2800/3250220/2656.2/7.50.55/0.6813.97/17.2760/622/1✓
BAC17255AH-11/22-1** Dual voltage115/230100~120/200~24050/6026/35 (~42)2800/3250220/2656.2/7.50.55/0.6813.97/17.2760/622/1✓
  1. ** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing.
  2. 100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480V... 50/60Hz, & dual voltage version available on request.
  3. Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request.
  4. Berring Industrial reserves the right to change data and improve electrical or mechanical design without notice.
  5. Data tolerance ±10%.
Technical Details

Specifications

Motor
Motor TypeCapacitor induction, outer rotor
Burnout ProtectionThermally protected
IP ProtectionIP44
Mechanical
FrameAluminum die-cast, black finish
ImpellerGlass fiber reinforced plastic, rated UL94V-0
BearingBall bearing
RotationCCW when viewed from rotor
ConnectionLead wires or Terminals
Weight1100g (2.42Lbs)
Electronical
Dielectric Strength1,500VAC/min, 0.5mA, 50/60 Hz
Insulation ResistanceOver 100MΩ at DC 500V
Environment
Operating Temp-20C~+70C
Storage Temp-40C~+100C (at 65%RH)
Life ExpectancyL10 100K hours at 35C, 50K hours at 60C
Measured P-Q

Performance Curves

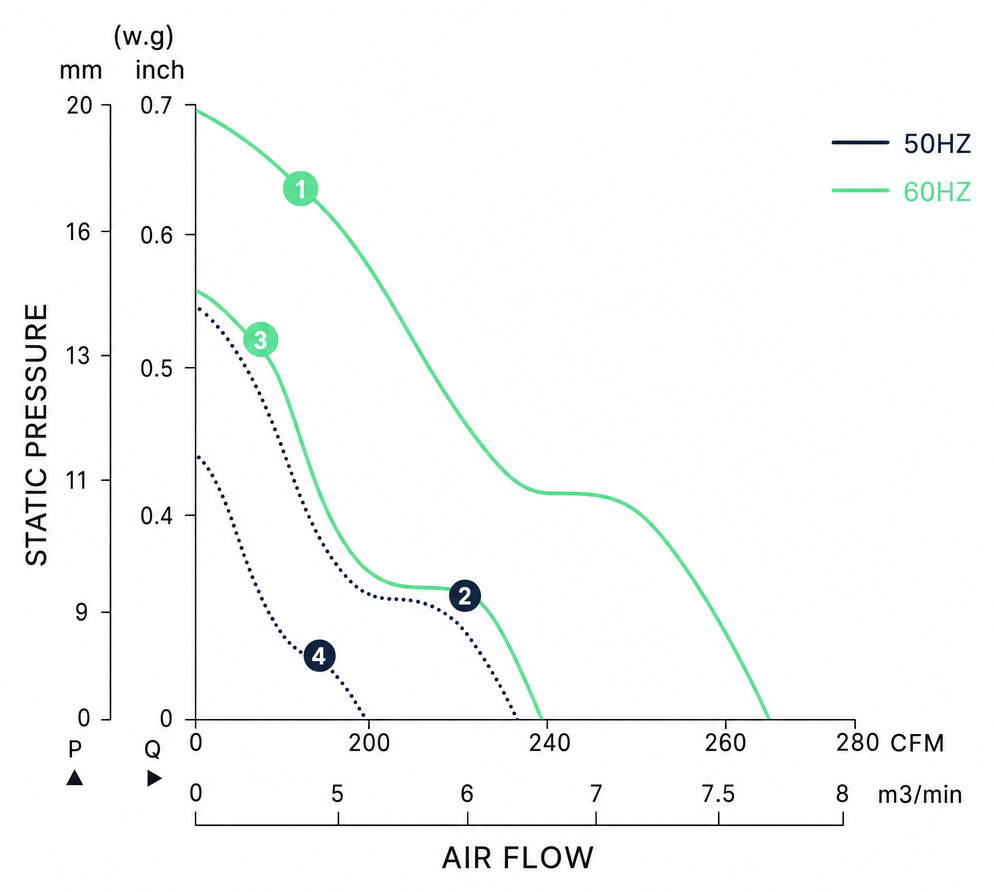

Measured P-Q performance curves for the BAC17255AH

Manufacturer test data · tolerance ±10%. Certified curves available with the full datasheet.

Outline dimension drawing of the BAC17255AH

Dimensions in mm (inches).

PDF

Datasheet

Full electrical & mechanical spec, all 7 variants.

CAD

STEP / DXF models

3D and 2D files for enclosure design, on request.

PQ

Performance data

Measured P-Q curves for every speed variant.

CoC

Traceability docs

Certificate of conformance ships with every order.
